Cable Strain Relief Flexible Connectors
Straight Cable Gland- NPT Thread
B7131

Features:
* Malleable iron, ductile cast iron or steel, zinc plated.
* Furnished with O-ring and insulating liner.
* NPT thread.
* Metric thread, PG thread and PF thread (die cast zinc) available by
request.
* For fixing power cable.
* IP67.
* RoHS & REACH compliant.
* 90 angle type L7131 and 45 angle type N7131 are available/

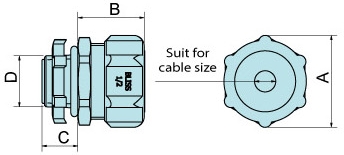

Specification

B7131

Catalog number Trade size
(inch)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Applicable wire (mm) Thread Packing
(pcs)
B71310304 3/8" 29.0 22.5 14.5 21.0 4 - 8 NPT 1/2 100
B71310308 3/8" 29.0 22.5 14.5 21.0 8 - 12 NPT 1/2 100
B71310312 3/8" 29.0 22.5 14.5 21.0 12 - 13 NPT 1/2 100
B71310614 3/4" 41.5 28.0 16.0 26.4 14 - 18 NPT 3/4 50
B71321018 1" 46.0 31.5 19.5 33.3 18 - 24 NPT 1 50
B71311224 1-1/4" 55.5 34.0 20.5 41.9 24 - 32 NPT 1-1/4 25
