Cable Strain Relief Flexible Connectors

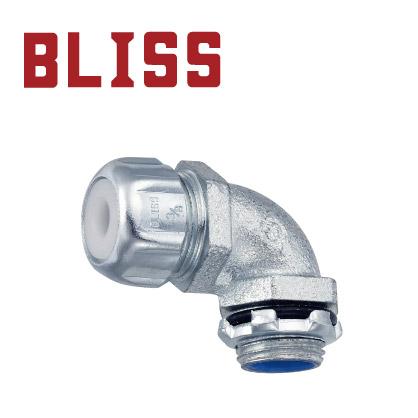

90° Cable Gland - NPT Thread
L7131
Features:
* Malleable iron or ductile cast iron, zinc plated.

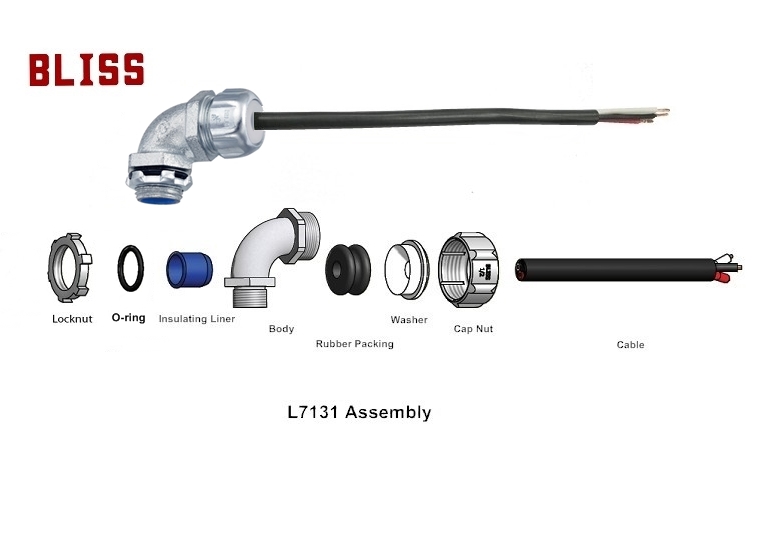

* Furnished with O-ring and insulating liner.
* NPT thread.
* Metric thread, PG thread and PF thread (die cast zinc) available by
request.
* For fixing power cable.
* IP67.
* RoHS & REACH compliant.
* Straight type B7131 and 45 angle type N7131 are available.

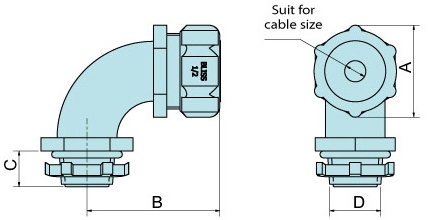

Specification
| Catalog number | Trade size (inch) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Applicable wire (mm) | Thread | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|
| L71310304 | 3/8" | 29.0 | 40.0 | 14.5 | 21.0 | 4 - 8 | NPT 1/2 | 50 |
| L71310308 | 3/8" | 29.0 | 40.0 | 14.5 | 21.0 | 8 - 12 | NPT 1/2 | 50 |
| L71310312 | 3/8" | 29.0 | 40.0 | 14.5 | 21.0 | 12 - 13 | NPT 1/2 | 50 |
| L71310614 | 3/4" | 41.5 | 53.0 | 16.0 | 26.4 | 14 - 18 | NPT 3/4 | 25 |
| L71311018 | 1" | 46.0 | 59.0 | 19.5 | 33.3 | 18 - 24 | NPT 1 | 25 |
| L71311224 | 1-1/4" | 55.5 | 69.0 | 20.5 | 41.9 | 24 - 32 | NPT 1-1/4 | 15 |
