Liquid Tight Connectors

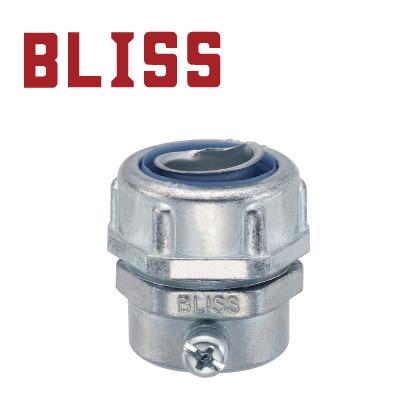

Threadless Combination Coupling
P2102

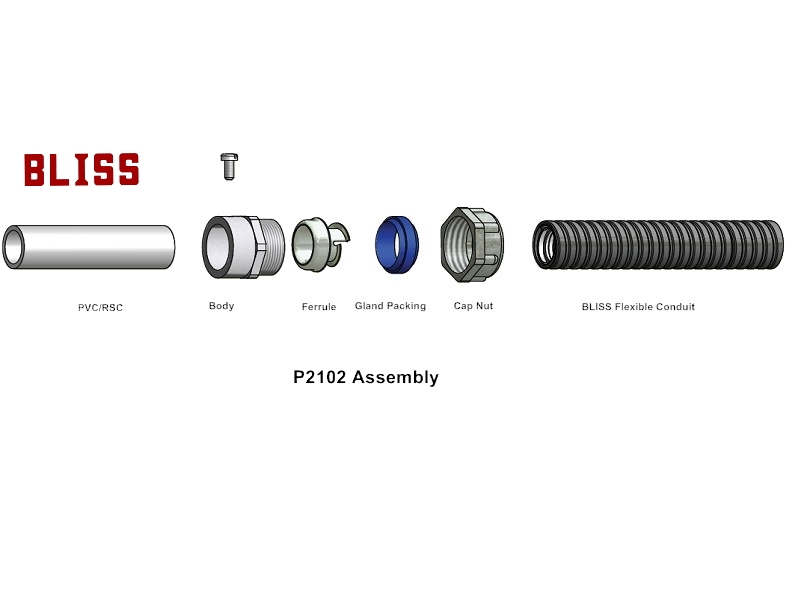

Suitable for the combination of RSC/PVC conduit and electric flexible conduit.
Features:
* Die cast zinc (zinc alloy), zinc plated.
* P2101 is Malleable iron or ductile cast iron.
* Threadless, furnished screw.
* For connectin RSC/PVC conduit with flexible conduit.
* E2102 is for connecting EMT with flexible conduit.
* IP67.
* RoHS & REACH compliant
* Other die cast zinc liquid tight connectors B2102, L2102, C2102,
B2142, B2182 are available.

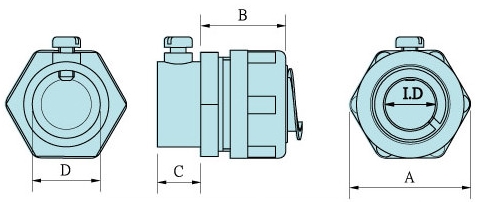

Specification
| Catalog number | Trade size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
RSG CNS 2606-C4060 JIS C8305 |
PVC CNS 1302-K3006 |
Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|
| P21020400 | 1/2" | 14.5 | 35.0 | 22.0 | 10.5 | 22.4 | G16 | 16 | 50 |
| P21020600 | 3/4" | 19.5 | 42.0 | 27.0 | 14.0 | 27.2 | G22 | 20 | 50 |
| P21021000 | 1" | 25.0 | 48.5 | 31.0 | 15.5 | 34.5 | G28 | 28 | 25 |
| P21021200 | 1-1/4" | 33.5 | 59.0 | 34.5 | 18.0 | 42.6 | G36 | 35 | 25 |
| P21021400 | 1-1/2" | 38.5 | 68.0 | 36.5 | 21.5 | 48.6 | G42 | 41 | 20 |
| P21022000 | 2" | 49.5 | 82.5 | 43.0 | 24.0 | 60.8 | G54 | 52 | 10 |
| P21022400 | 2-1/2" | 60.0 | 93.5 | 36.0 | 24.0 | 76.8 | G70 | 65 | 1 |
| P21023000 | 3" | 75.0 | 110.0 | 36.0 | 24.0 | 90.0 | G82 | 80 | 1 |
| P21024000 | 4" | 97.0 | 137.0 | 36.0 | 24.0 | 115.0 | G104 | 100 | 1 |
