Products

SAW BLADE GRINDERS
Semi Automatic Type Sawblade Grinders

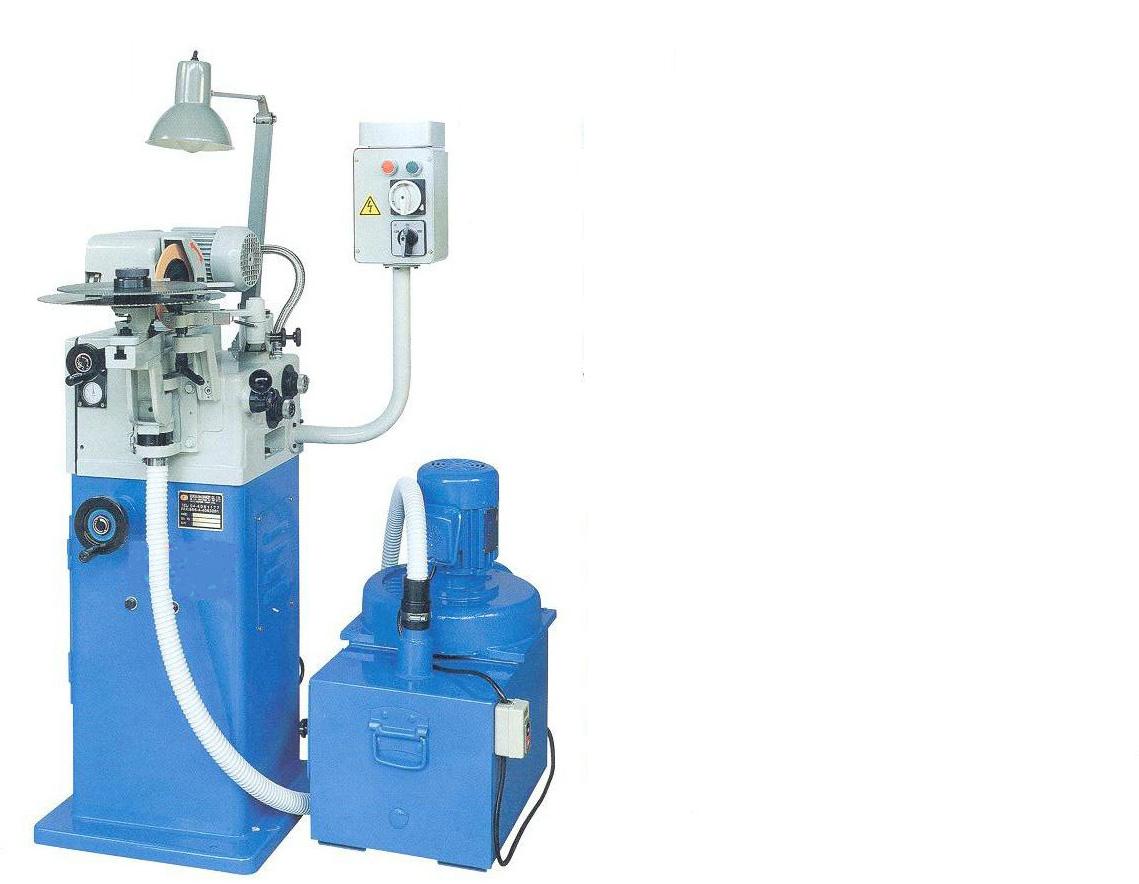

C-450-2

Features:
A. All cast-iron components are made from DUCTILE IRON(FCD-45), wear resisting to assure precision.
B. Simply shift between Straight tooth(A type) and Curved tooth(B type). During saw blade install, the blade thickness setting is quick and accurate according an indicating meter.
C. Driving speed change by a stepless adjusting device, regard to change speed for different blade pitch promptly.
D. Alternate high/low teeth shall be accomplished by one pass. The teeth height difference is variable and read out from indicating meter, thus you got a prefect sharpening result.
E. Teeth chamfering is easily made without need to replace grinding wheel, only swings upward or downward to aim the indication plate.

Standard Accessories
a. Grinding wheel*10 pcs
b. Index plate*2 pcs
c. Working lamp*1 pc
d. Tools*1 set

Optional Accessories
a. Grinding wheel
b. Index plate
c. Dust suction equipment
d. Small saw blade holder(available min.50mm)
e. Enlarged saddle & holder(available max. 650mm)

Specification

Model C-450-2
Saw blade dia. 50-450mm
Pitch range max. 25mm
Depth of teeth  max. 8mm
Range of cutting angle

-5 degree~30 degree

Feeding speed 45~180 teeth/min
Thickness of sawblade max. 8mm
Grinding wheel dia. 75~150mm
Wheel inner dia. 25mm
Grinding wheel speed 4200 rpm
Grinding wheel motor 0.55 kw 2P
Driving motor 0.37KW 2P/4P
Dust suction motor 0.37 KW 2P(optional accessories)
N.W./G.W. 150/180 KGS
