CIRCULAR SAWING MACHINE/AIR AUTOMATIC TYPE

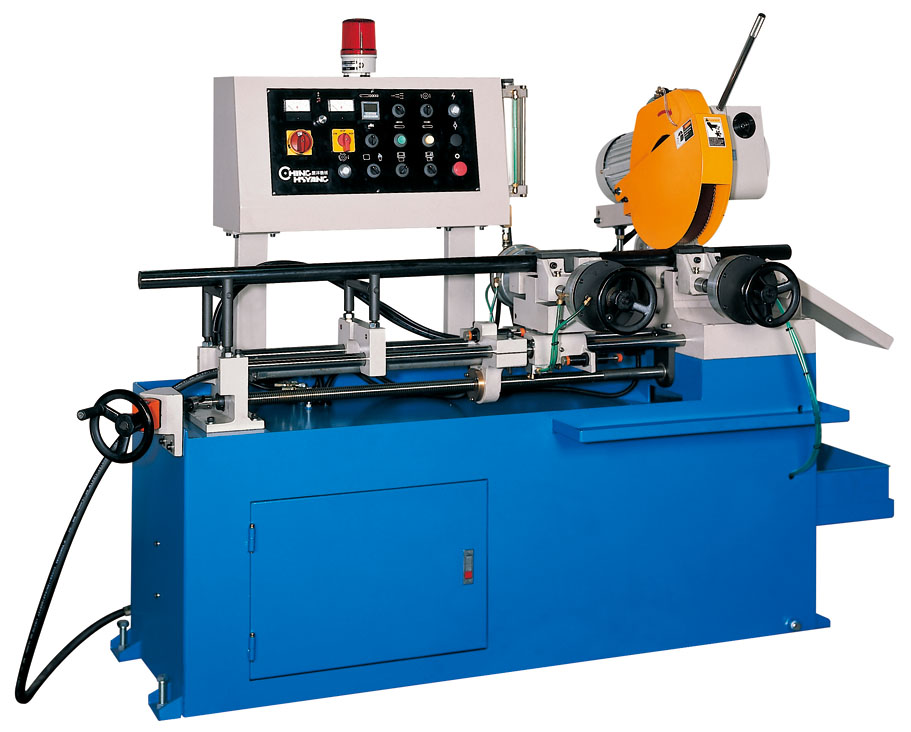

Air Automatic Type Circular Sawing Machine
C-370-3A

C-370-3A Feature of Automatic Tongs, Automatic Saw Feeding and Withdrawing, Feed and Positioning

a. Using the PLC controller, control buttons are located together, allowing for simple operation, anile, easy to maintain.
b. Uniquely designed, most suited for floating feed system, accurate and rapid feeding does not damage workpiece surfaces.
c. Equipped with digital display for easy cutting length adjustment, quick and accurate.
d. The tong's pressure is adjustable at will, ensuring that the tubes will not deform and be damaged.
e. Equipped with electronic type saw blade protection device, the machine will stop automatically after the saw blade is blunt.
f. Equipped with the counting device that can set the amount and the function of machine stopping.
g. The automatic non-material machine stopping device.
h. Iron chippings are treated together, convenient and clean.

Standard Accessories
a. HSS saw blade 300x1.6x32x1 pc
b. Cutting oil x1 bottle(500c.c.)
c. Toolsx1 set
d. Clampx1 set

Specification

Model C-370-3A
Head rotation angle 90°
Sawing capacity Area:mm -Solide bar 75
Sawing capacity Area:mm -Round tube 120
Sawing capacity Area:mm -Angle steel 115x115
Sawing capacity Area:mm -Square tube 115x115
Sawing capacity Area:mm -Trough-shaped steel 115x115
Sawing capacity Area:mm -Rectangular steel 125x100
Cutting Motor A: 3HP/2HP-2/4P
B: 2HP/1.5HP-4/8P
C: 3HP/2HP/ 2/4P
Cutting Speed A: 58/29 rpm
B: 29/15 rpm
C: 50/100 rpm
Cooling Pump Power 1/8 HP
Required air pressure 4 - 6 kgs/cm²
Used Circular Saw Blade HSS SAW BLADE 275-370mm
Feeding Length 3-700mm per time, it can be feed 3 times.(max. 2100mm)
Dimensions(mm) L 1,000 x W 2,150 x H 1,700mm
Machine Weight(kg) 720 kgs
