CIRCULAR SAWING MACHINE/MANUAL TYPE/PNEUMATIC TYPE/ SEMI AUT
CIRCULAR SAWING MACHINE/MANUAL TYPE/PNEUMATIC TYPE/ SEMI AUTOMATIC TYPE
C-370, 1A, 2A

Function:
a. Two-way tongs, without bur when sawing, without powder and dust, with high accuracy.
b. Available sawing angles, left 90 degree to 0 degree; right 90 degree to 45 degree.
c. The front setting water box design of the cooling system is convenient and easy to clean up.
d. Iron chippings are treated together, convenient and clean.

Available Range:
It is an appropriate machine model for thick, middle and thin hollow tubes, and solid tubes. This model is driven by two-set gears, with great torque force, suitable for heavy-duty cutting. The largest pipe diameter can be 120mm, and the square pipe can achieve 100x100mm. It is available for the furniture industry, sports equipment, sheet metal factories and machine factories.

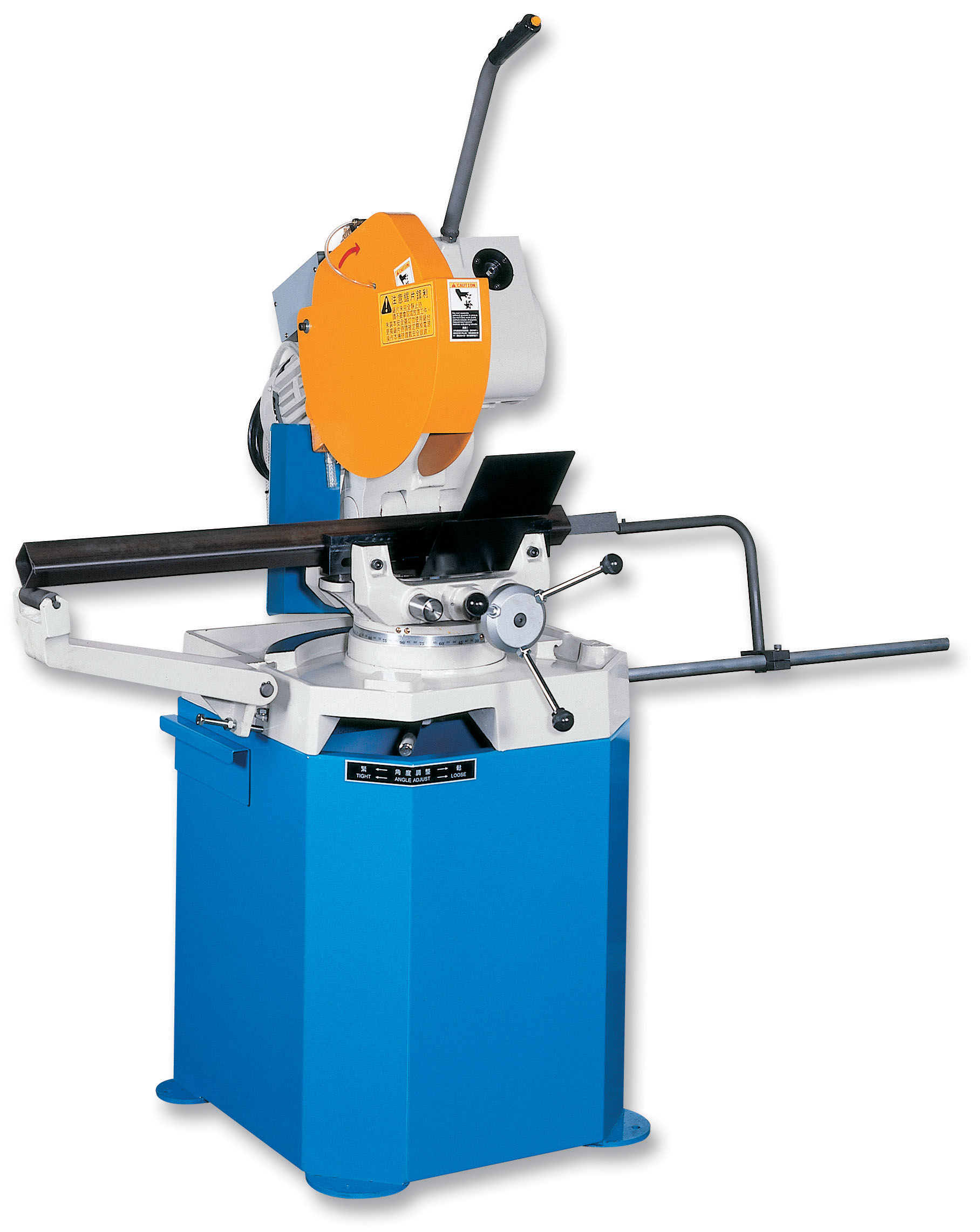

C-370 Features of Hand Operated Tongs and Saw Feeding
Quick measurement of the size, hand operated tongs, hand operated saw feeding and withdrawing, you can control the saw feeding at any time and give the appropriate pressure in accordance with the size of a tube when doing the action of saw feeding, the saw blade can be used for a long time.

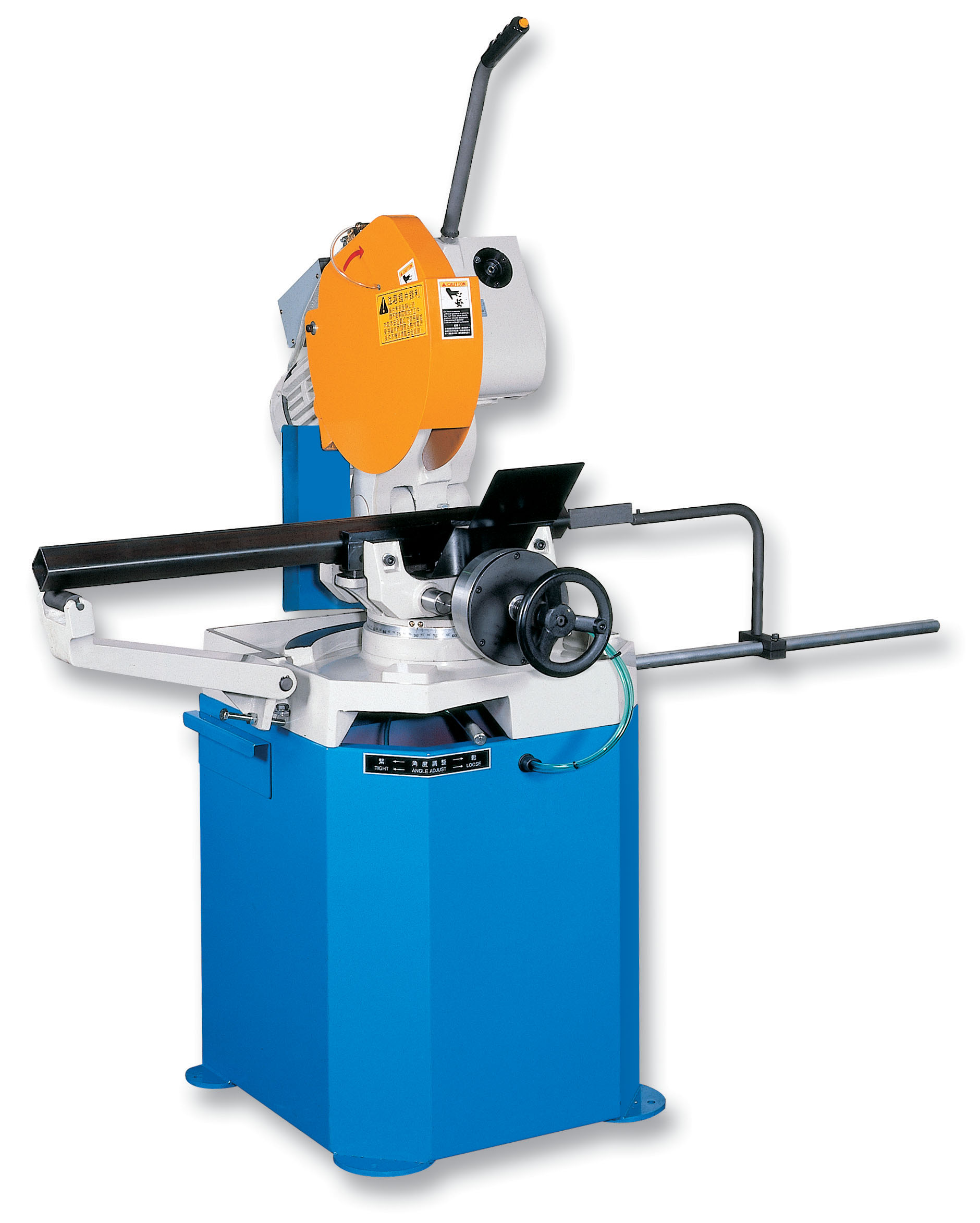

C-370-1A Features of C-370, the automatic clamping function is another feature. When finishing measuring a tube's length, you can press down the switch, and the tube will be clamped tight immediately, which is able to avoid the danger of saw feeding without being clamped tightly.

C-370-2A Features of Automatic Tongs Automatic Saw Feeding and Withdrawing
The model is most appropriate for huge amount. When finishing adjusting the saw blade and a tube's length, you can press down the pedal switch and it will execute the functions of clamping and saw feeding, which will save the production time.

Standard Accessories
a. HSS saw blade 300x1.6x32x1 pc
b. Stopper rulerx1 pc
c. Cutting oilx1 bottle(500cc)
d. Toolsx1 set
e. Clampx1 set

Specification

MODEL             C-370          C-370-1A           C-370-2A
Head rotation angle  90 degree  / 45 degree  90 degree  /  45 degree  90 degree  /  45 degree
Sawing Capacity-Solid bar         75      /   70         75      /   70        75       /   70
Sawing Capacity-Round tube         120    /  110         120   /  110        120     /   110
Sawing Capacity-Angle steel   115x115  /  100x100  115x115  / 100x100  115x115   /  100x100
Sawing Capacity-Square tube   115x115  /  100x100  115x115  /  100x100  115x115   /  100x100
Sawing Capacity-Trough-shaped steel   115x115  /  100x100  115x115  /  100x100  115x115   /  100x100
Sawing Capacity-Rectangular steel   125x100  /  110x80  125x100  /  110x80  125x100   /  110x80
Cutting Motor

A:3HP/2HP  2P/4P

B:2HP/1.5HP 4P/8P

C:3HP/2HP   2P/4P

A:3HP/2HP  2P/4P

B:2HP/1.5HP 4P/8P

C:3HP/2HP   2P/4P

A:3HP/2HP  2P/4P

B:2HP/1.5HP 4P/8P

C:3HP/2HP   2P/4P

Cutting Speed

A:58/29 rpm

B: 29/15 rpm

C:   50/100 rpm

A:58/29 rpm

B: 29/15 rpm

C:   50/100 rpm

A:58/29 rpm

B: 29/15 rpm

C:   50/100 rpm

Cooling pump  1/8 HP 1/8 HP 1/8 HP
Required air pressure 4-6 kgs/cm2 4-6 kgs/cm2 4-6 kgs/cm2
Used Saw Blade HSS saw blade 275-370mm HSS saw blade 275-370mm HSS saw blade 275-370mm
Feeding Length None None None
Dimensions(mm) L1000xW650xH1420mm

L1000xW650xH1420mm

L1000xW850xH1350mm
Machine Weight(kg) 280 KGS 290 KGS 350 KGS
