CIRCULAR SAWING MACHINE/MANUAL TYPE/PNEUMATIC TYPE/ SEMI AUT
CIRCULAR SAWING MACHINE/MANUAL TYPE/PNEUMATIC TYPE/ SEMI AUTOMATIC TYPE
C-275,1A,2A,C-275M

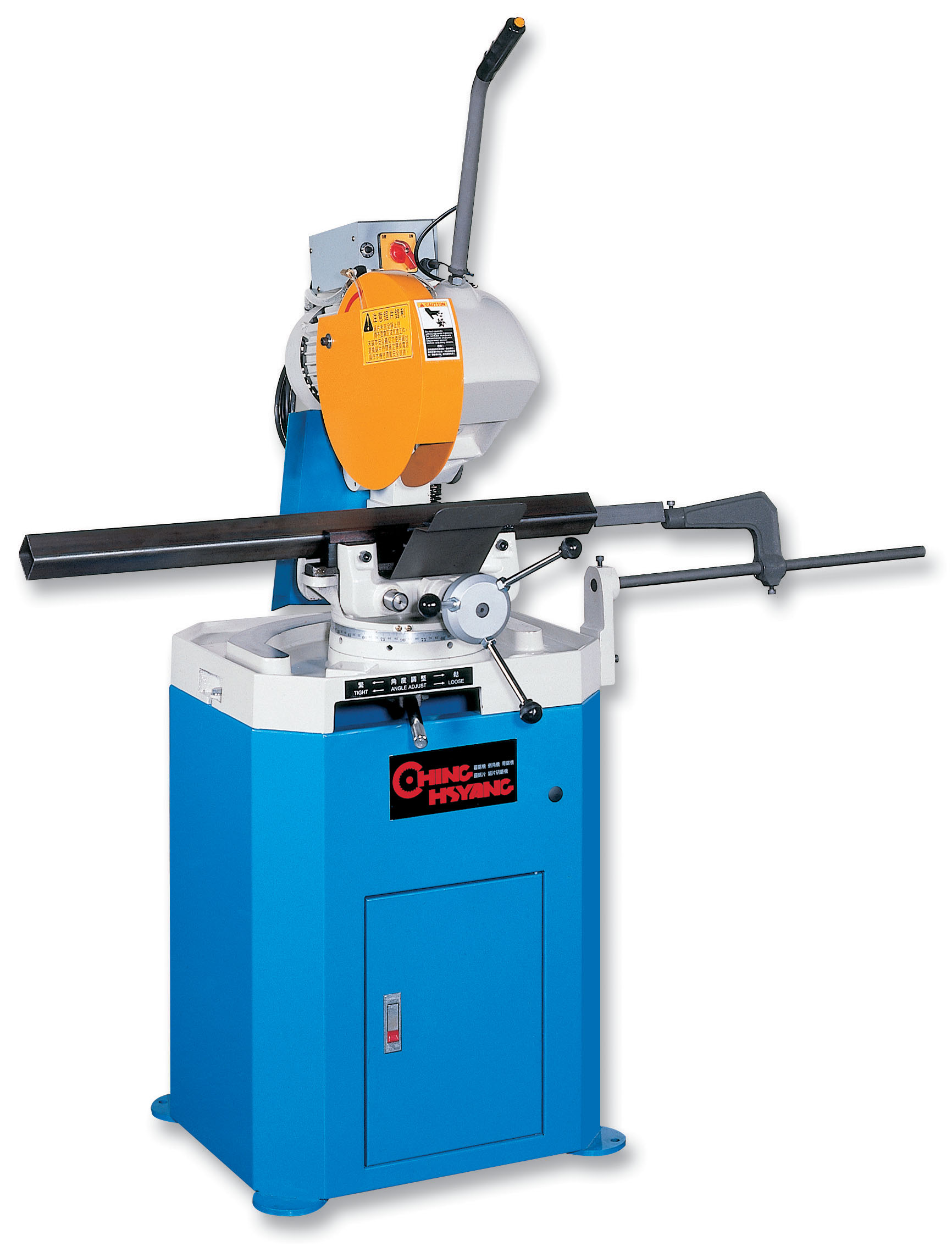

● C-275
○ 1.Two-way tongs, without bur when sawing, without powder and dust, with high accuracy.
○ 2.Available sawing angles:Left:90°degress to 0° degree;right:90° degrees to 45° degress.
○ 3.The front setting water box design of the cooling system is convenient and easy to clean up.
○ 4.Iron chippings are treated together, convenient and clean.

● C-275 Available Range:
○ Available for thinner iron tubes,stainless steel tubes,aluminum tubes,and copper tubes and copper bars.
○Available for the use or the sample developing of door and window proprietors,and available for proprietors of lighter tubes.

C-275 Features of Hand Operated Tongs and Saw Feeding
○Quick measurement of the size, hand operated tongs, hand-operated saw feeding and withdrawing, you can control the saw feeding at any time and give the appropriate pressure in accordance with the size of a tube when doing the action of saw feeding, the saw blade can used for a long time.

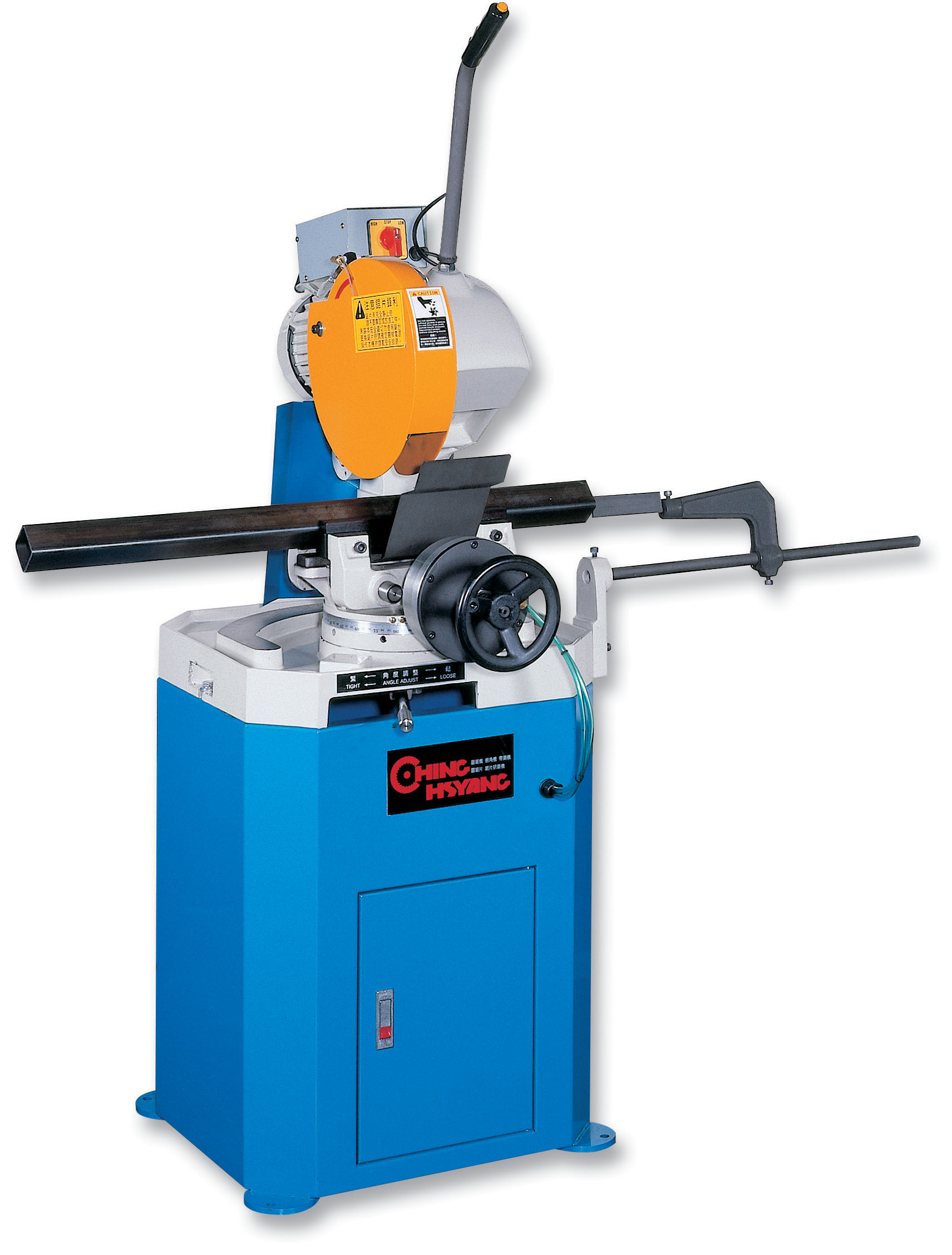

C-275-1A Features of Automatic Tongs Hand-Operated Saw Feeding
Beside the features of C-275, the automatic clamping function is another feature. When finishing measuring a tube's length. you can press down the switch and the tube will be clamped tight immediately, which is able t avoid the danger of saw feeding without being clamped tightly.

C-275-2A Feature of Automatic Tongs Hand-Operated Saw Feeding and Withdrawing
The model is most appropriate for huge amount. When finishing adjusting the saw blade and a tube's length, you can press down the pedal switch and it will execute the functions of clamping and saw feeding, which will save the produce time.

Standard Accessories
a. HSS saw blade 250x1.6x32x1 pc
b. Stopper rulerx1 pc
c. Cutting oilx1 bottle(500c.c.)
d. Toolsx1 set
e. Clampx1 set

Specification

Model C-275 / C-275M C-275-1A C-275-2A
Sawing Capacity Area: mm-Solid Bar 38 / 30 38 / 30 38 / 30
Sawing Capacity Area: mm-Round Tube 85 / 75 85 / 75 85 / 75
Sawing Capacity Area: mm-Angle Steel 75 x 75 / 50 x 50 75 x 75 / 50 x 50 75 x 75 / 50 x 50
Sawing Capacity Area: mm-Square Tube 75 x 75 / 75 x 75 75 x 75 / 75 x 75 75 x 75 / 75 x 75
Sawing Capacity Area: mm-Trough Shaped Steel 75 x 75 / 50 x 50 75 x 75 / 50 x 50 75 x 75 / 50 x 50
Sawing Capacity Area: mm-Rectangular Steel 75 x 90 / 75 x 60 75 x 90 / 75 x 60 75 x 90 / 75 x 60
Cutting Motor A: 2HP/1.5HP-2/4P
B: 1.5HP/1HP-4/8P
A: 2HP/1.5HP-2/4P
B: 1.5HP/1HP-4/8P
A: 2HP/1.5HP-2/4P
B: 1.5HP/1HP-4/8P
Cutting Speed A:120/60rpm
B: 60/30rpm
A:120/60rpm
B: 60/30rpm
A:120/60rpm
B: 60/30rpm
Cooling Pump Power 1/8HP 1/8HP 1/8HP
Required Air Pressure 4-6kgs/cm² 4-6kgs/cm² 4-6kgs/cm²
Used Circular Saw Blade 250-300mm 250-300mm 250-300mm
Feeding Length -- -- --
Dimensions(mm) L710 x W610 x H1350 L850 x W610 x H1350 L850 x W610 x H1350
Machine Weight(kg) 180 kgs 190 kgs 240 kgs
