ALUMINUM CUTTING MACHINE/AUTOMATIC TYPE

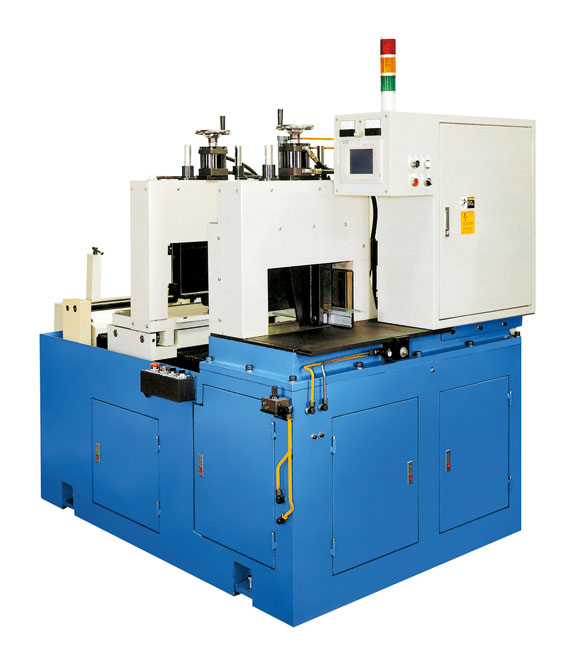

NC Automatic Type Aluminum Cutting Machine
NC-610-3AS

Features
A. Make sequential setups for sizes, quantities of the disc sawing machine in advance one time.
B. Human machine interface machine. Easy to operate and available for various cutting works.
C. The linear rail with a servo motor and a ball screw is employed so as to ensure feeding fast and accuracy. The tolerance is +/-0.01mm.
D. Suitable or wider material or multiple piece cutting at one time.
E. Fixtures with two way force from top and two sides. That makes clamp irregular objects easily, no need to use special fixtures, shorten working time, and increase the productivity.
F. Automatic powerful oil mist coolant ensures clean machined with a little curve feed easily.
G. After cutting, separating work piece before cutting tool moves backward, machined surface will be shiny without tooling trace.
H. Suitable for the following nonmetal, aluminum extrusion, copper, coolant pieces, plastic steel, Bakelite, acrylic circuit board, Teflon, cellular cell boards, curtain wall, timber....etc.
I. Stable construction, strong rigidity, low vibration, and high cutting accuracy.
J. Floating feeding method makes aluminum extrusion or material with a little curve feed easily.
K. Extraordinary horsepower design. Horsepower can be adjusted according to the demand of saw blades. It cuts fast and has great productivity.

Standard Accessories:
a. Basic machine
b. Oil mist spraying system
c. Tool box
d. Warning light
e. Tungsten steel saw blade

Optional Accessories:
a. Chip collector
b. Inverter
c. Roller type material shelf

Specification

Model NC-610-3AS
Cutting Capacity

300mmWx120mmH

220mmx1 pcs 或150mmx2 pcs

170mmWx170mmH

Cutting Motor 10 HP
Used Circualr Saw Blade 455mm-610mm
Cutting Length 700mm tper time,max. up to 9990mm
Control Method Figure control + touch screen control system
Machine Dimension(mm) 1410x2370x2020 mm
Machine Weight(kg) 2500 kgs
