HORIZONTAL BAND SAW MACHINE

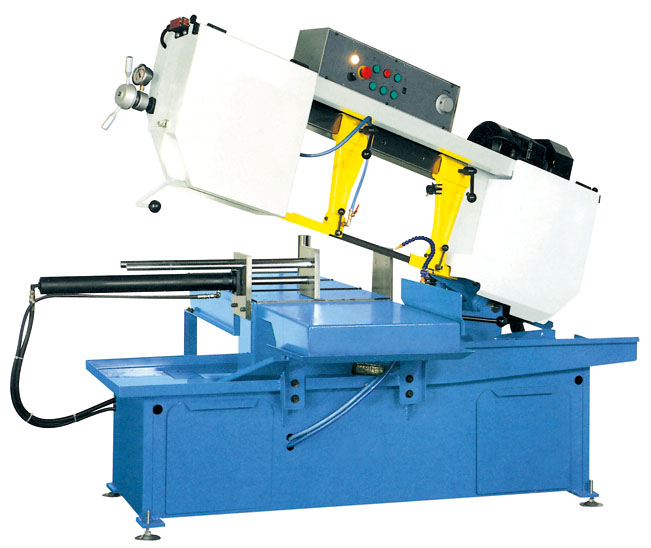

13"x18" Band Saw machine(one way swivel infinity)-Variable speed
CH-3046-1ATH,CH-3046-2ATH

**Cutting Capacity**
1、Round:
A:0 degree-330mm
B:-45 degree-280mm
C:-60 degree-175mm

2、Rectangular:
A:0 degree-330x457mm
B:-45 degree-330x280mm
C:-60 degree-250x175mm

Specification

Model CH-3046-1ATH CH-3046-2ATH
Motor 3 HP 3 HP
Hydraulic motor 1 HP 1 HP
Cooling pump 1/8  HP 1/8 HP
Speed 50HZ 25-67 Meter/Min 50HZ 25-67Meter/Min
Band saw size 27x0.9x4220mm 27x0.9x4220mm
Install area 2075x1910x1350mm 2075x1910x1350mm
Machine weight 730 kgs 800 kgs
Packing size 2159x915x1485mm 2159x915x1485mm
