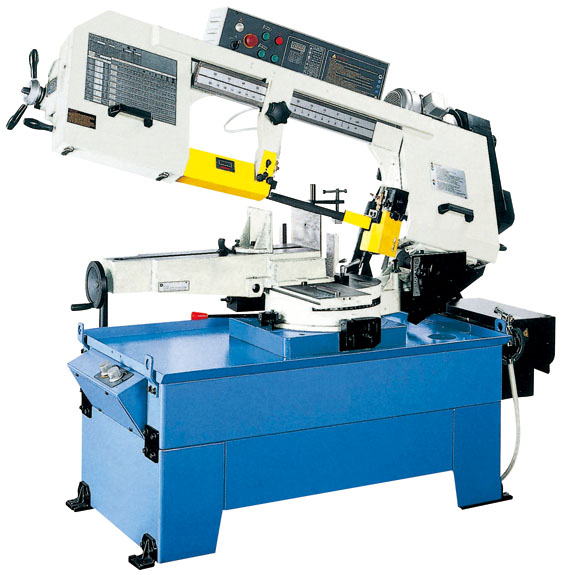

HORIZONTAL BAND SAW MACHINE
10"x18" Band Saw machine(2 way swivel infinity)-Variable speed
C-250TH,CH-250-1ATH,C-250-2ATH

C-250TH: Manual
CH-250-1ATH:Semi Automatic (saw blow lifting)
CH-250-2ATH:Semi Automatic(saw blow lifting and hydraulic vise)

**Cutting Capacity**
1、Round:
A: 0 degree-254mm
B: +/-45 degree-254mm
C:60 degree-204mm

2、Rectangular:
A:0 degree-254x458mm
B:+/-45 degree-254x280mm
C:60 degree-127x204mm

3、Square:
A:0 degree-254x254mm
B:+/-45 degree-254x254mm
C:60 degree-178x178mm

Specification

Model C-250TH CH-250-1ATH CH-250-2ATH
Motor 2 HP 2 HP 2 HP
Speed 50HZ 25-100 Meter/Min 50HZ 25-100 Meter/Min 50HZ 25-100 Meter/Min
Band saw size 27x0.9x3352mm 27x0.9x3352mm 27x0.9x3352mm
Install area 1840x700x1080mm 1840x700x1080mm 1840x700*1080mm
Machine weight 420 kgs 440 kgs 440 kgs
Packing size 1945x1016x1220mm 1945x1016x1220mm 1945x1016x1220mm
