VERTICAL BAND SAW MACHINE

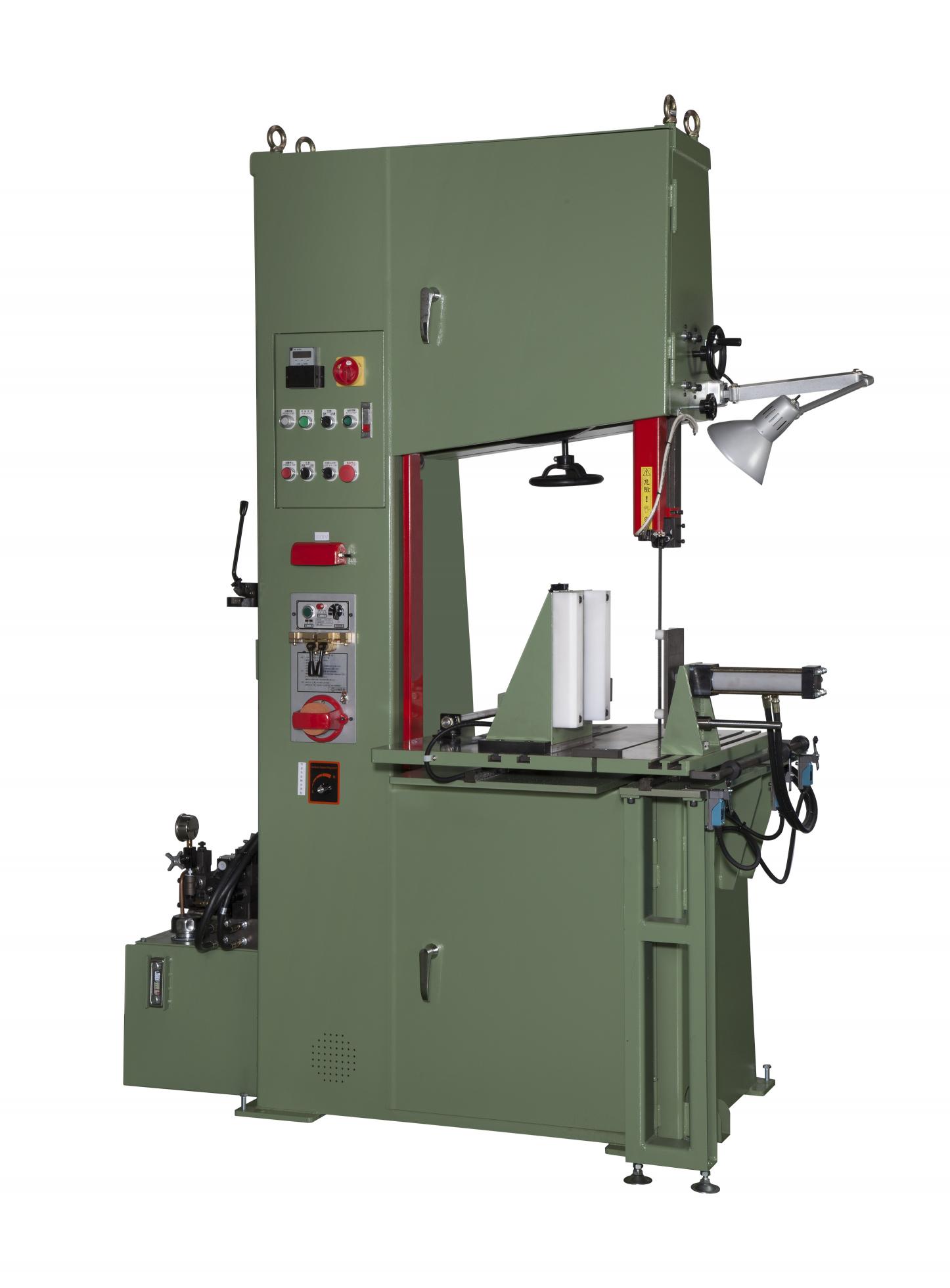

Hydraulic Semi Automatic Type Vertical Band Saw Machine
CH-600-2A,CH-700-2A
Specification
| Model | CH-600-2A | CH-700-2A |
| Cutting Length | 300 mm | 450 mm |
| Cutting Width | 600 mm | 700 mm |
| Cutting Height | 350 mm | 550 mm |
| Band Saw size | W10~30mmxL4350mm | W41mmxT1.3mmxL5520mm |
| Speed | 20-160 rpm | 15~75 meter/min |
| Motor | 3 HP | 5 HP |
| Hydraulic motor | 2 HP | 1 HP |
| Machine Dimension | L1340XW1240XH2070mm | L1350xW1325xH2720mm |
| Machine Weight | 655 kgs | 2500 kgs |
