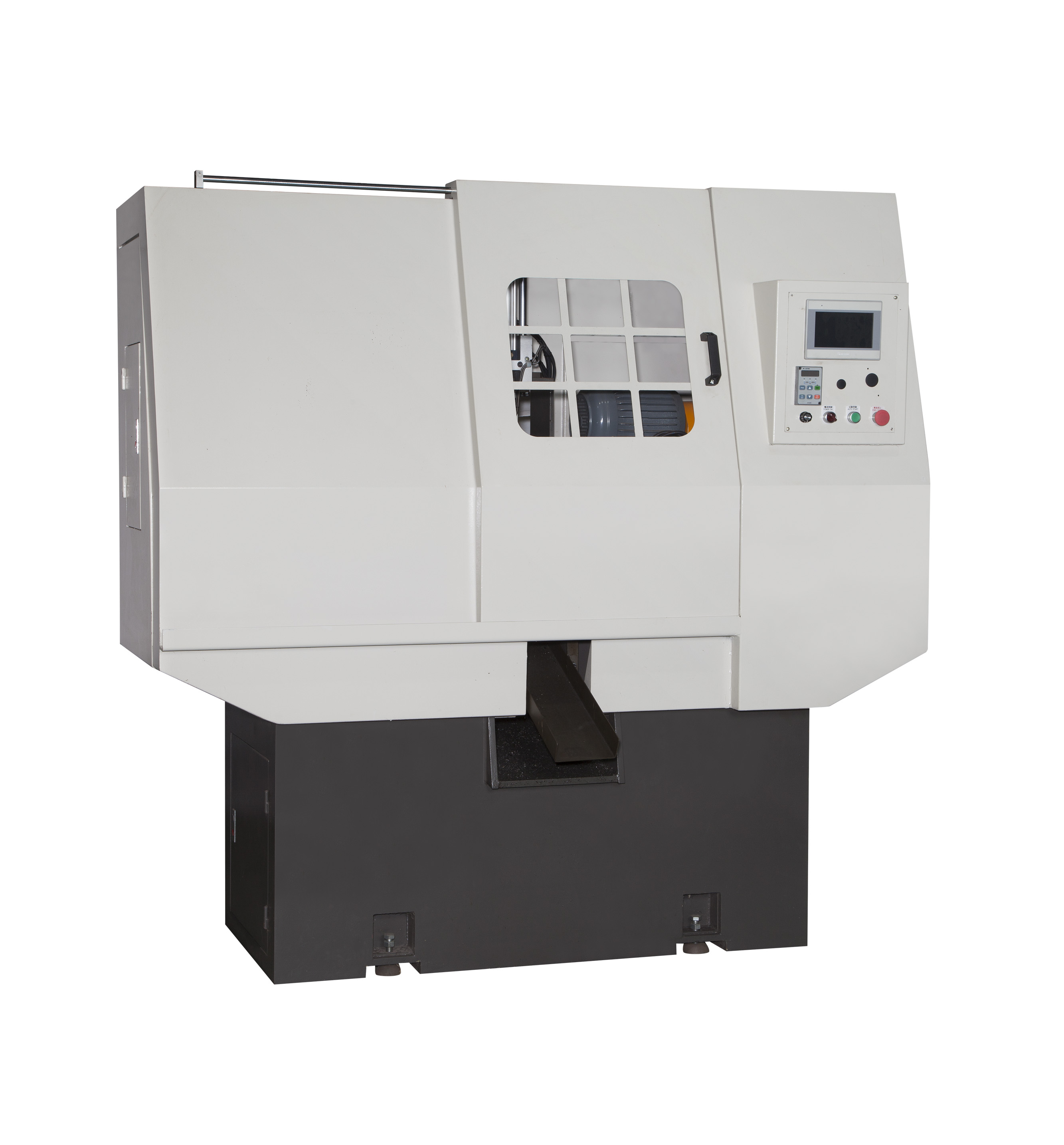

DOUBLE END CHAMFERING MACHINE-AUTOMATIC TYPE

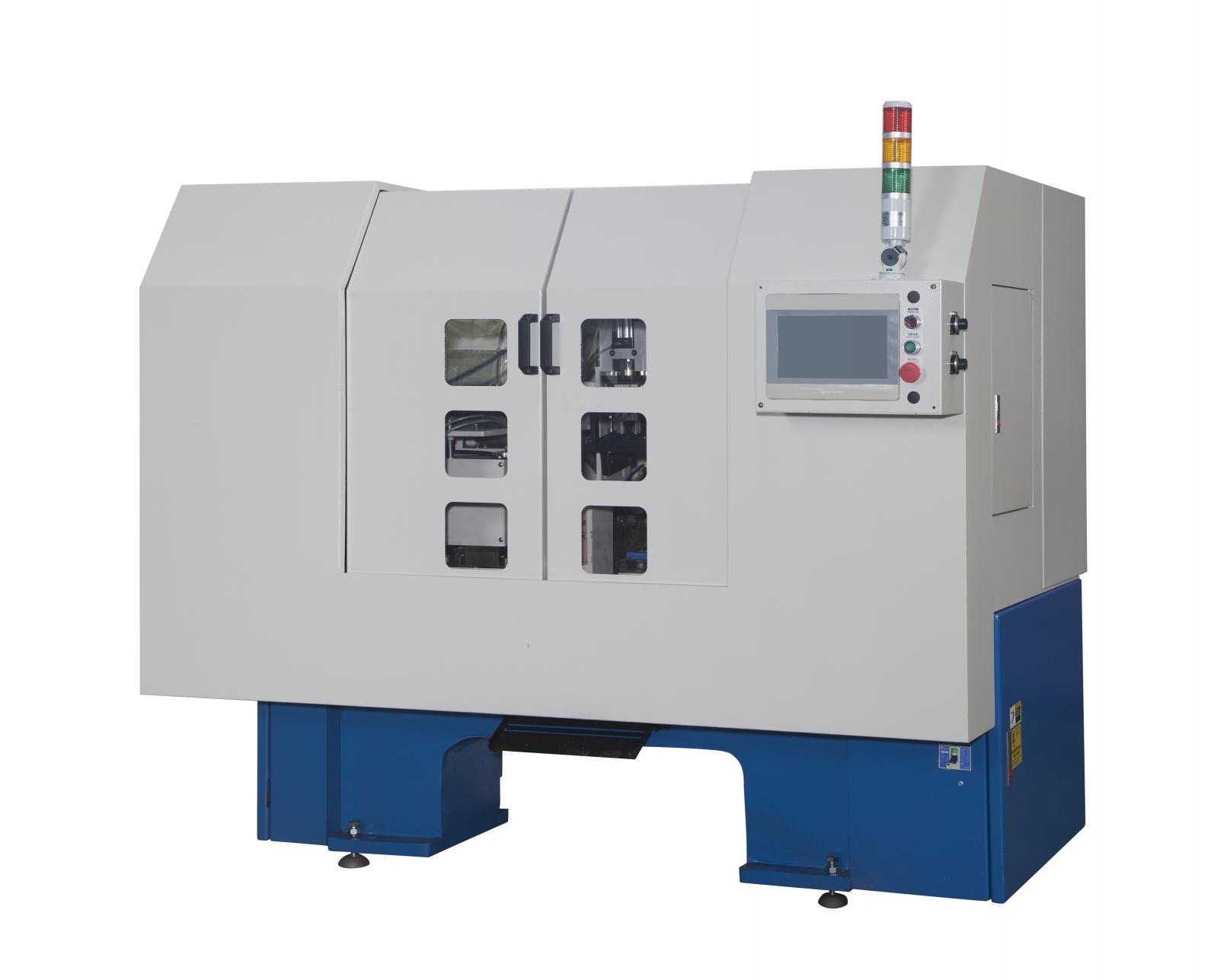

NC TYPE DOUBLE END CHAMFERING MACHINE
CH-50-3A,NC-50-3A,CH-80-3A,NC-80-3A

Features
a. The round tube can be required inside, outside, and repaired at one time, fast and precise.
b. The cutter head can use the commercially available blade, and the replacement is easy and fast.
c. Two-stage feeding, the air stroke is smooth, and the working stroke can be adjusted stably according to the amount of cutting.
d. With manual and automatic functions, it is convenient to adjust and adjust the machine.
e. Special automatic positioning device, which can automatically position, feed and chamfer, and fine-tune the length tolerance.
f. Oil mist lubrication cooling system can increase blade life without chipping.
g. Servo motor feeds, the feed is stable and accurate.
h. The chamfer length is controlled by the servo motor, the length can be set and modified on the screen.
i. Another institutional length adjustment model(economical)

Standard Accessories
a. Main machine unit & Transmitting system
b. PLC automatic electronic control system
c. Standard insert head*2 pcs
d. Insert holder(two each of inner, outer and facing)
e. Insert(two each of inner, outer and facing)
f. Clamp*1 set
g. Tool box
h. Cutting oil spray system

Optional Accessories
a. Custom insert head
b. Special insert holder
c. R angle insert
d. Inverter

Specification

Model CH-50-3A NC-50-3A CH-80-3A NC-80-3A
Motor 2 x 2 HP 2 x 2 HP 2 x 2 HP 2 x 2 HP
Speed

A:4P-930/730 rpm

B:6P-660/550 rpm

A:4P-930/730 rpm

B:6P-660/550 rpm

A:4P-930/730 rpm

B:6P-660/550 rpm

A:4P-930/730 rpm

B:6P-660/550 rpm

Pipe OD 8-50 mm 8-50 mm 10-80 mm 10-80 mm
Working length 10-120 mm 10-120 mm 15-120 mm 15-120 mm
Insert head

Standard 25-50mm

Optional 8-25mm

Standard 25-50mm

Optional 8-25mm

Standard 16-80mm

Optional 10-16mm

Standard 16-80mm

Optional 10-16mm

Hydraulic motor 2 HP 2 HP 2 HP 2 HP
Working pressure 6-8 kg/cm2 6-8 kg/cm2 6-8 kg/cm2 6-8 kg/cm2
Servo motor - 1 KW x 2 - 1 KW x 2
Machine Dimension(mm) 1535x1890x1936mm 1535x1890x1936mm 1350x1950x1620mm 1350x1950x1620mm
Machine Weight(kg) 1450 kgs 1450 kgs 1680 kgs 1680 kgs
