CIRCULAR SAWING MACHINE/ NC AUTOMATIC TYPE

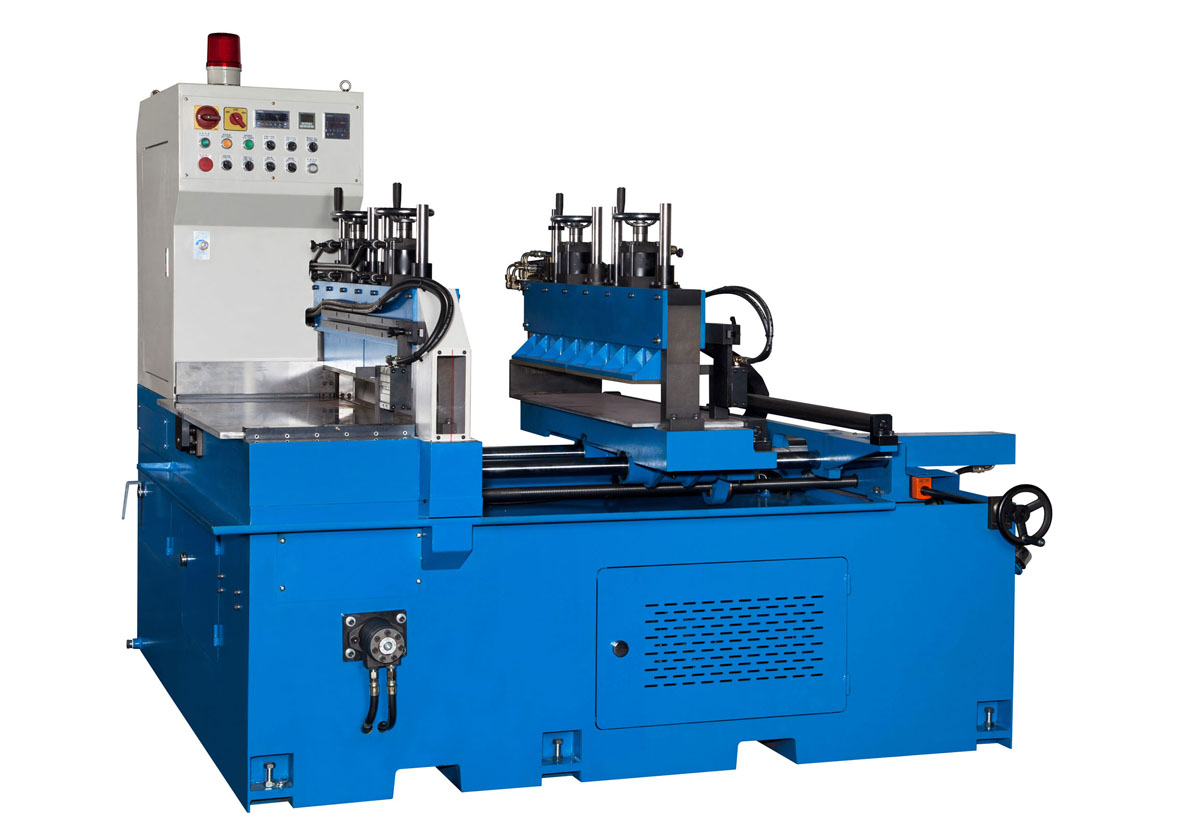

Horizontal type Cutting Machine-extra width type)
NC-400-3AEL/NC-450-3AEL

Features
a. Horizontal type feed, the cutting amount is great. Reduce the saw blade cost.
b. Hydraulic automatic feed(or servo motor feed) steady and fast.
c. Hidden saw blade, low noise and the security is high.
d. The automatic cooling, the saw blade is more durable, cut face smooth and no burr.
e. Clamp with two way force, top and two sides, round, square, angle tube don't need special clamp, cutting point away in min resistance point, cutting fast, high output and save cost.
f. Install saw blade overload protect device, confirm the tolerance and protect saw blade.
g. Feeding up the displacement, the material is not damaged.
h. Speed is equipped with the inverter, can be adjust required speed follow material size and thickness.
i. Feeding with high precision digital display of the speed of the valve, the feed is based on the convenience of management, double stability.

Standard Accessories:
a. Basic machine
b. HSS saw blade 300x2.0x32x1 pc
c. Tool box
d. Cutting oilx1 bottle(500c.c.)

Optional Accessories
a. Inverter

Specification

Model NC-400-3AEL NC-450-3AEL
Cutting Motor 5 HP 4/8P 7.5 HP 4/8P
Cutting Speed 25/50 RPM 25/50 RPM
Cutting Capacity 100x 1050mm 120x1200mm
Cooling Pump 1/8 HP 1/8 HP
Used Circular Saw Blade 400 mm 450 mm
Hydraulic Motor 2 HP 2 HP
Feeding Length 3-700mm per time 3-700mm per time
Servo Motor 2 KW 2 KW
Machine Dimensions(mm) L2600xW2700xH1950mm L2500xW2900xH1950mm
Machine Weight(kg) 3300 kgs 3600 kgs
