Universal Materials Cutting

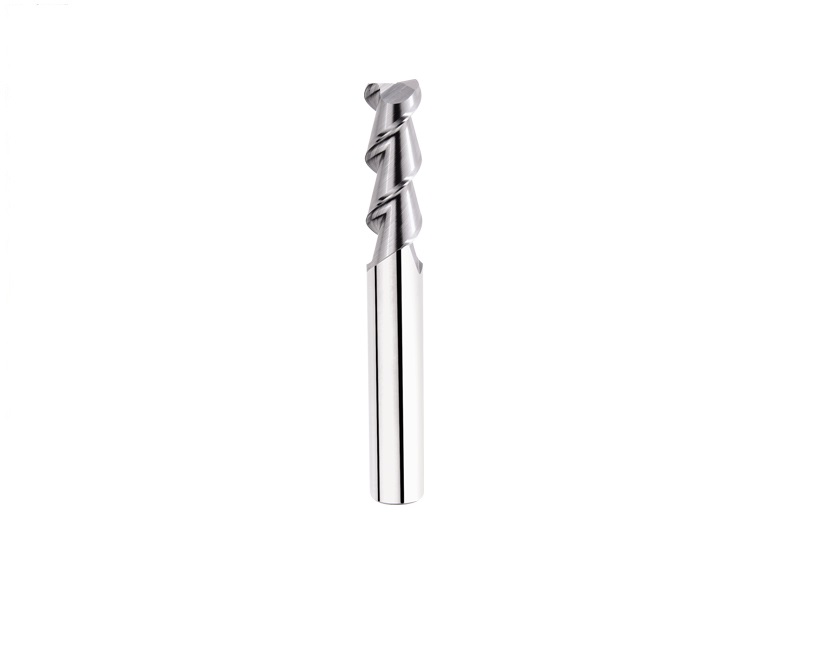

Square End Mills
AE2
Specification
| Model No. |
Diameter |
Flute Length |
O.A.L |
Shank Dia |
| AE2-005 |
0.5 |
1.5 |
50 |
4 |
| AE2-010 |
1.0 |
3 |
50 |
4 |
| AE2-015 |
1.5 |
4 |
50 |
4 |
| AE2-020 |
2.0 |
6 |
50 |
4 |
| AE2-025 |
2.5 |
8 |
50 |
4 |
| AE2-030 |
3.0 |
8 |
50 |
4 |
| AE2-040 |
4.0 |
12 |
50 |
4 |
| AE2-050 |
5.0 |
16 |
50 |
6 |
| AE2-060 |
6.0 |
18 |
50 |
6 |
| AE2-080 |
8.0 |
22 |
60 |
8 |
| AE2-100 |
10.0 |
28 |
75 |
10 |
| AE2-120 |
12.0 |
30 |
75 |
12 |
|
|
|
|
|
| Shank(h6) |
Shank Tolerance |
Diameter |
Diamerter Tolerance |
Radius Tolerance |
| 4.0 |
0~-0.008 |
0.5~4.0 |
0~-0.02 |
|
| 6.0 |
0~-0.008 |
5.0~6.0 |
0~-0.02 |
|
| 8.0 |
0~-0.008 |
8.0 |
0~-0.025 |
|
| 10.0 |
0~-0.009 |
10.0 |
0~-0.03 |
|
| 12.0 |
0~-0.011 |
12.0 |
0~-0.035 |
|
|
|
