Products

Universal Materials Cutting

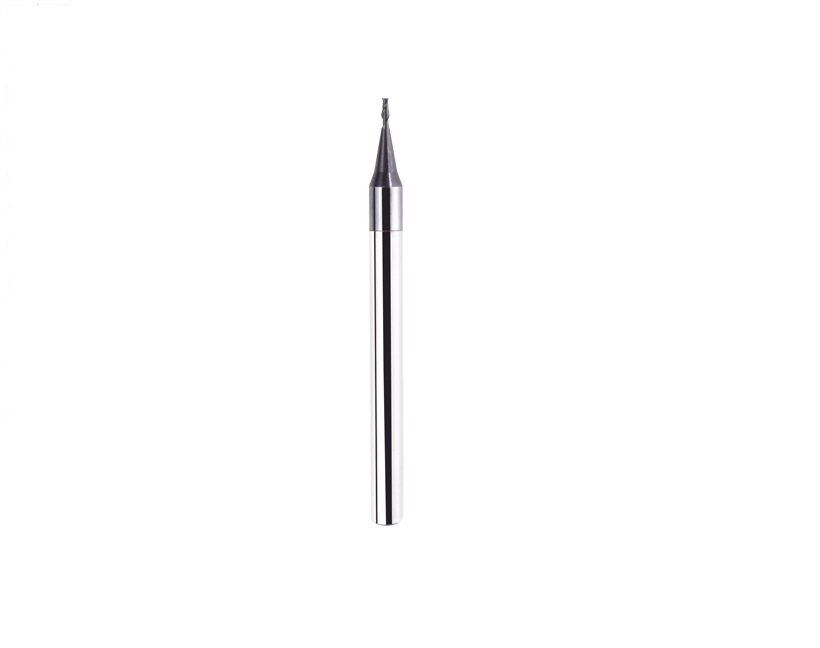

Micro Diameter Square End Mills
ME2

Specification

Model No. Diameter Flute Length O.A.L Shank Dia
ME2-002 0.2  0.4  50
ME2-003 0.3  0.6  50
ME2-0033 0.3  0.6  50
ME2-004 0.4  0.8  50
ME2-0043 0.4  0.8  50
ME2-005 0.5  1.0  50
ME2-0053 0.5  1.0  50
ME2-006 0.6  1.2  50
ME2-0063 0.6  1.2  50
ME2-007 0.7  1.4  50
ME2-008 0.8  1.6  50
ME2-009 0.9  1.8  50
ME2-010 1.0  50
ME2-0103 1.0  50
ME2-012 1.2  3.0  50
ME2-014 1.4  3.5  50
ME2-015 1.5  4.0  50
ME2-0153 1.5  4.0  50
ME2-016 1.6  4.0  50
ME2-018 1.8  5.0  50
Tolerance unit : mm



Shank(h6) Shank Tolerance Diameter Diamerter Tolerance Radius Tolerance
3.0  0~-0.008  0.3~1.5  0~-0.015
4.0  0~-0.008  0.2~1.8  0~-0.015
