CNC Vertical Turret Milling Machine

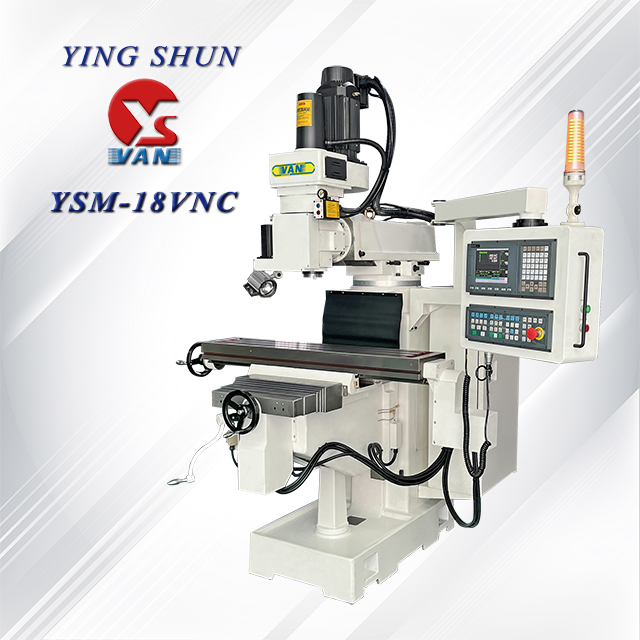

CNC Vertical Turret Milling Machine
YSM-18VNC
X/Y/Z travel : 700(Opt.800)/400/100mm
Vertical travel : 450mm
Spindle taper : NT40(Ø110)
Spindle motor : 3.7KW-Inverter (Opt.3.7-5.5KW servo)
Controller system
Specification
- The main casting part is made of meehanite casting.
- Controller Type: FANUC/SIEMENS/SYNTEC/FAGOR.
- Inverter type used YASKAWA VFD
- X/Y/Z axis with servo motor (Z-axis with brake).
- X/Y/Z axis uses a double-nut ball screw.
