Vertical & Horizontal Milling Machine
Vertical & Horizontal Milling Machine

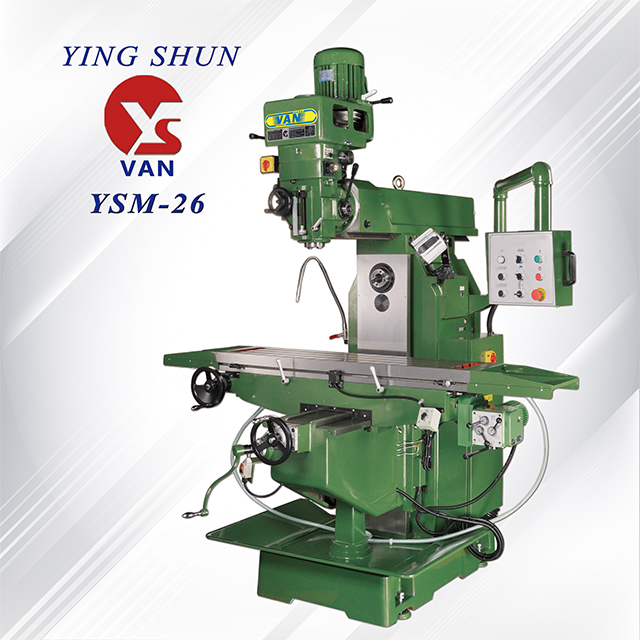

YSM-26 SERIES

X/Y/Z travel : 1000(Opt.800)/400/470 mm
Spindle taper : NT40(Ø105)
Spindle motor : 5HP(Opt.7.5)

Specification

  • The main casting part is made of meehanite casting.

  •   The spindle run on high precision P4 class bearing.

  • The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing.

  •  Milling head type:

    -Steps (S) Inverter (C)

10 Steps
60HZ  70-125-190-285-420-600-1025-1530-2200-3350(RPM)
50HZ  58-110-165-240-360-500-870-1290-1900-2780 (RPM)



20 Steps
50HZ   2P 116-220-330-480-720-1000-1740-2580-3800-5560(RPM)
 4P  58-110-165-240-360-500-870-1290-1900-2780 (RPM)

    -Inverter type used YASKAWA VFD.



  • Used type B belt drive.

  • Hardened and ground X,Y,Z axes slideway.

  • Turcite-B coated on X Y ways.

  • Square way design on Y and column slideway.

  • X/Y axis double nut ball screw.

  • Horizontal milling gear mechianism, maximum speed 1288/50HZ.
9 Steps
60HZ  92-204-241-251-536-590-660-1311-1614(RPM)
50HZ  73-163-193-201-428-471-527-1056-1288(RPM)

  •  Horizontal bracket.

YSM-26 SERIES - CATALOG
