Vertical & Horizontal Milling Machine
Vertical & Horizontal Milling Machine

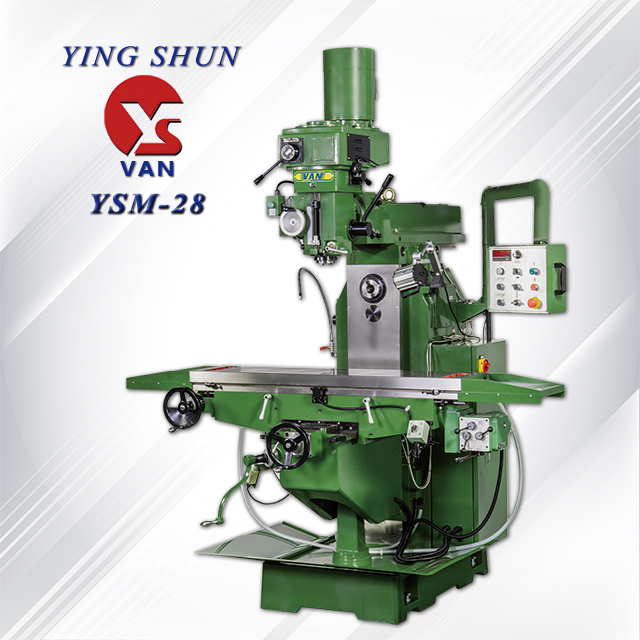

YSM-28 SERIES

X/Y/Z travel : 1000(Opt.800)/400/440 mm
Spindle taper : NT40(Ø110)
Spindle motor : 5HP(Opt.7.5)

Specification

  • The main casting part is made of meehanite casting.

  • The spindle run on high precision P4 class bearing.

  • The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing.

  •  Milling head type:

    -Steps (S) Inverter (C)

10 Steps
60HZ  75-125-195-280-420-650-1050-1610-2360-3500(RPM)
50HZ  60-100-160-230-350-530-860-1320-1940-2870 (RPM)


    -Inverter type used YASKAWA VFD.

  • Used type B belt drive.

  • Hardened and ground X,Y,Z axes slideway.

  • Turcite-B coated on X Y ways.

  • Square way design on Y and column slideway.

  • X/Y axis double nut ball screw.

  • Horizontal milling gear mechianism, maximum speed 1288/50HZ.
9 Steps
60HZ 92-204-241-251-536-590-660-1311-1614(RPM)
50HZ 73-163-193-201-428-471-527-1056-1288(RPM)
  •  Horizontal bracket.
