CNC Bed Type Milling Machine
CNC Bed Type Milling Machine

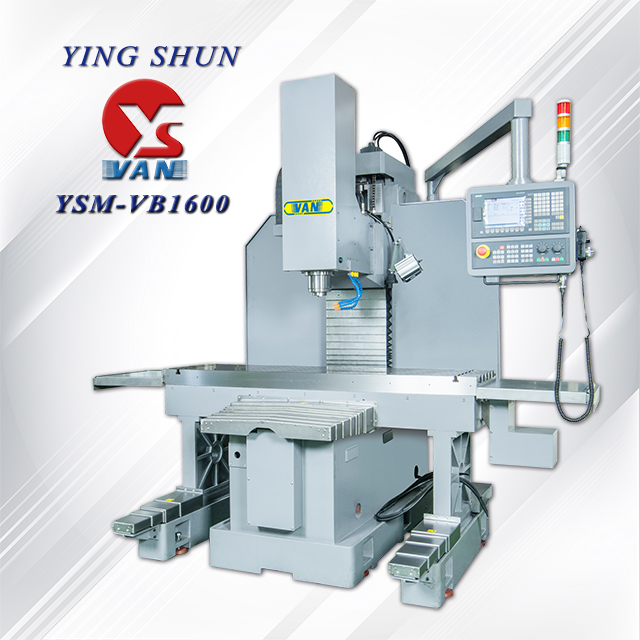

YSM-VB1600
X/Y/Z travel : 1600(Opt.1800.2000)/550/500mm
Spindle taper : BT40 (Opt.BT50)
Spindle motor : 7.5/11kw (Opt.11/15kw)
Spindle driven : Belt (Opt.Direct)
Specification
- Controller Type: FANUC/SIEMENS/SYNTEC/FAGOR.
- The main casting part is made of meehanite (FC30 ).
- The three-axis uses a pre-pressed double-nut ball screw (C3).
