Products

CNC Bed Type Milling Machine
CNC Bed Type Milling Machine

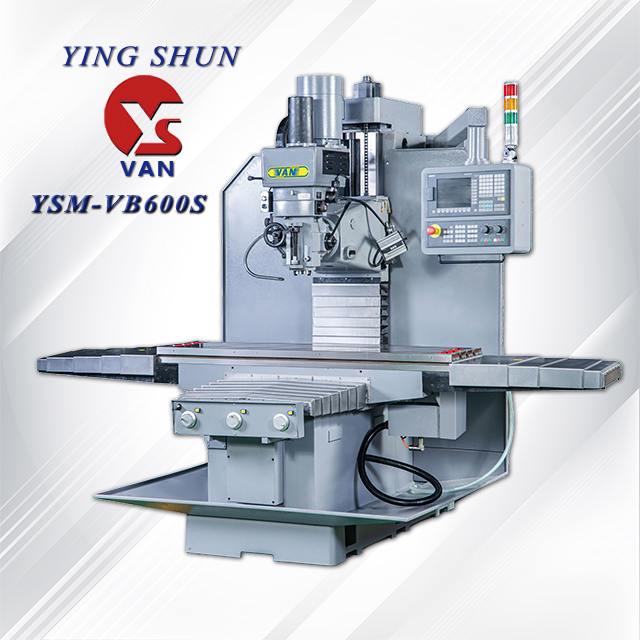

YSM-VB600S SERIES

X/Y/Z travel : 1000(Opt. 1200,1400) /550/600 mm
Spindle taper : NT40
Spindle motor : 5HP(Opt.7.5HP)
Controller system

Specification

  • Controller Type: FANUC/SIEMENS/SYNTEC/FAGOR.

  • The main casting part is made of meehanite (FC30 ).

  • The spindle is one piece machined from SCM 440 alloy steel, thermal refining,high-frequency and precision polishing.

  • The three-axis uses a pre-pressed double-nut ball screw (C3).

  • It is a combination of the manual and automatic control machine .

  • X/Y/Z panel-mounted electronic hand wheel and CNC programming opera tion switch.

  • Milling head type:

    -1.8#(SE)/2.0#(ST)
    -Inverter type used YASKAWA VFD
    -The spindle max speed 4200 RPM can meet different processing conditions.

YSM-VB600S SERIES - CATALOG
