Remote hydraulic crimpers

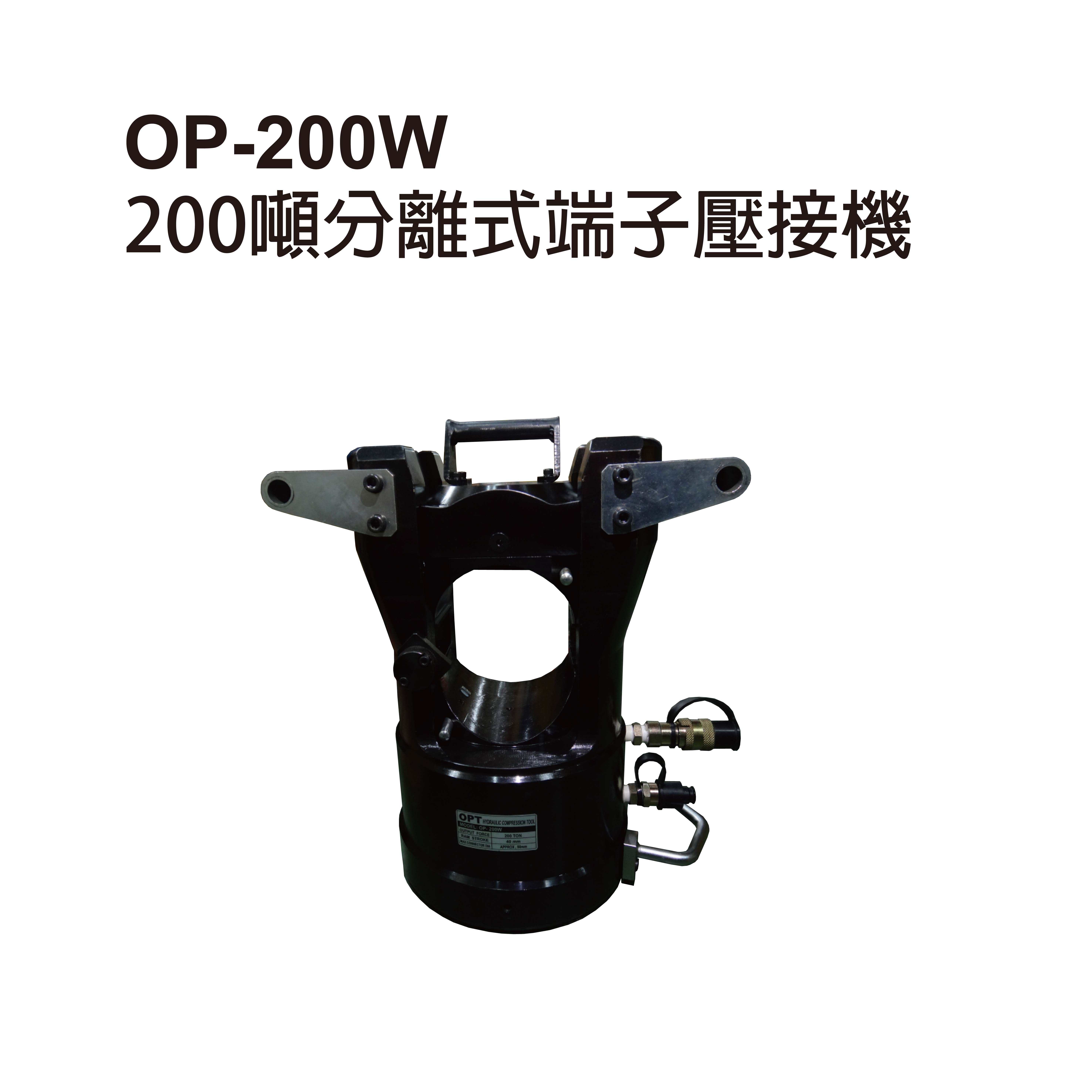

OP-200W REMOTE HYDRAULIC CRIMPING HEAD
OP-200W
200 tons remote hydraulic crimping head
Distribution & transmission line and sleeves lugs
hexagon crimping
Remote type
40mm stroke
Double acting
1134c.c. oil volume
For lugs Max. O.D. 90mm
OP-200W
84kgs
Dia. 270x415(H)mm
200 tons remote hydraulic crimping head
Distribution & transmission line and sleeves lugs
hexagon crimping
Remote type
OP-200W
Specification
| Model No. | Output | Application | Type | Stroke | Acting | Oil volume | For lugs | Weight | Dimension |
|---|---|---|---|---|---|---|---|---|---|
| OP-200W | 200 tons | Distribution & transmission line and sleeves lugs hexagon crimping | Remote | 40mm | Double acting | 1134c.c. | Max. O.D. 90mm | 84kgs | Dia. 270x415(H)mm |
