Strippers

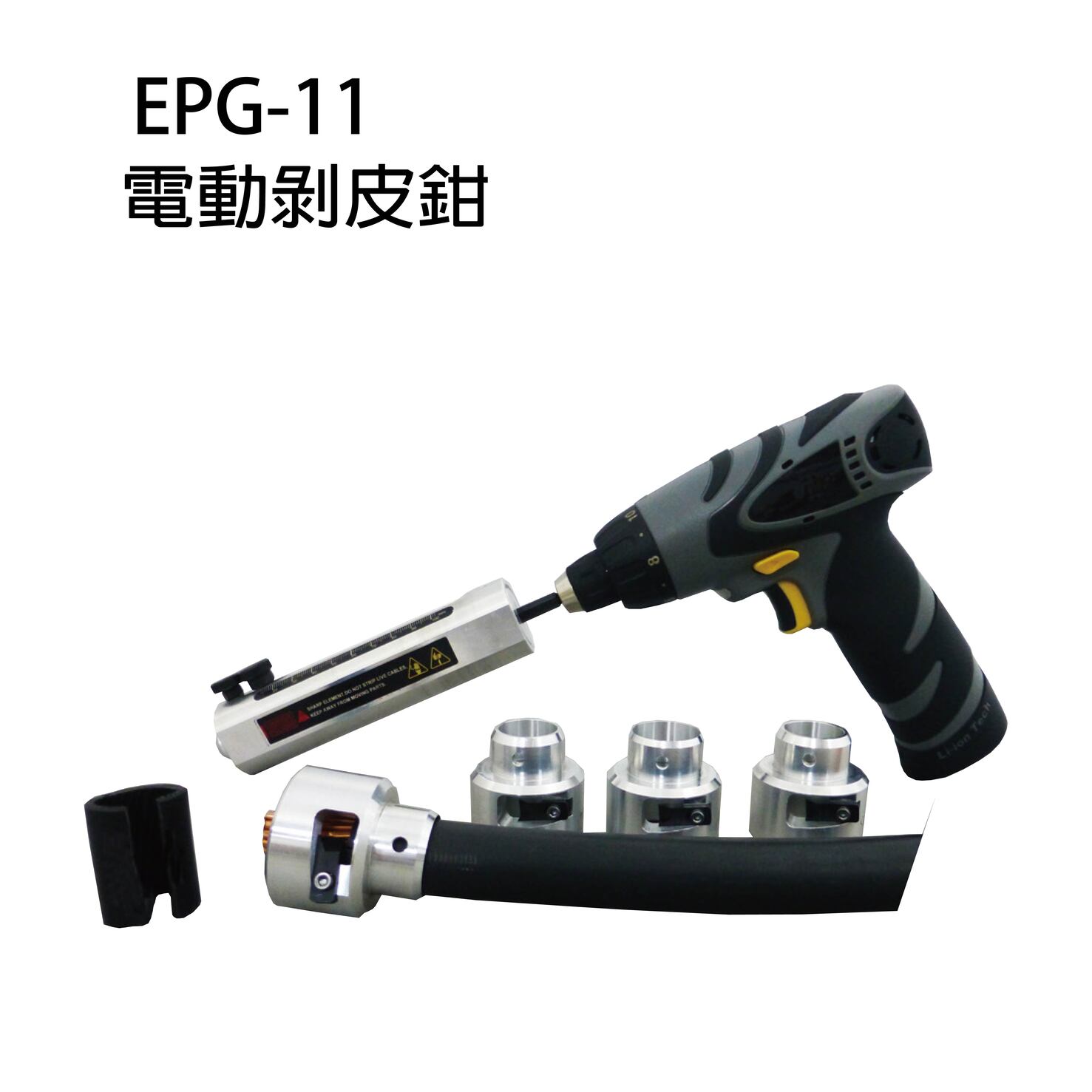

EPG-11, EPG-11S, EPG-11B CORDLESS-DRILL-DRIVING CABLE STRIPPERS
EPG-11, EPG-11S, EPG-11B
Cable strippers solution for insulated layer stripping
Model No.: EPG-11
For AWG THHN(Nylon) & XHHW(anti-fire XLPE)
Stripping range:
Dia. 12.1-29.5mm (AWG1/0-700MCM)
Stripping depth: 1.35-2.45mm
Tool weight: 0.2kg(excludes dies and drill)
Accessory: B3-B22 (20sets dies)
Dimension: 178.4*34*45.5mm
Drill with inbuilt Li-Ion battery
-------------------------------------
Model No.: EPG-11S

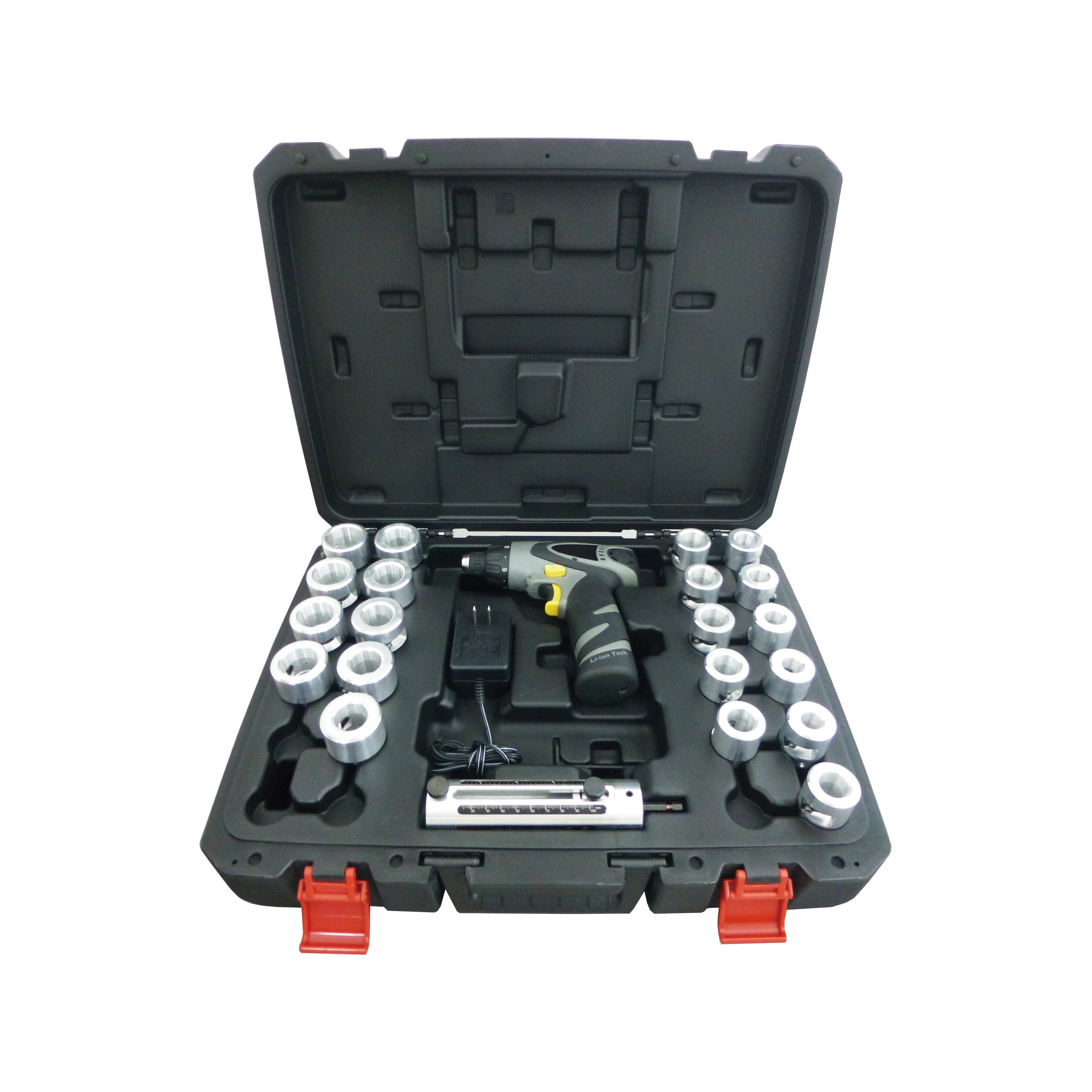

Kit content:
Stripper*1pc
Small dies*11pcs
-------------------------------------
Model No.: EPG-11B
Kit content:
Stripper*1pc
Big dies*9pcs
Specification
| Model No. | Application | Stripping Dia. | Stripping depth | Weight | Accessory | Dimension | Remark |
|---|---|---|---|---|---|---|---|
| EPG-11 | For AWG THHN(Nylon) & XHHW(anti-fire XLPE) | Dia. 12.1-29.5mm (AWG1/0-700MCM) | 1.35-2.45mm | 0.2kg(excludes dies and drill) | B3-B22 (20sets dies) | 178.4*34*45.5mm | Drill with inbuilt Li-Ion battery |
| EPG-11S | B3-B13 (11sets dies) | ||||||
| EPG-11B | B14-B22 (9sets dies) | ||||||
| B3 | Dia. 12.1-13.3mm | 1.45mm | |||||
| B4 | Dia. 13.2-14.4mm | 1.35mm | |||||
| B5 | Dia. 13.7-14.9mm | 1.35mm | |||||
| B6 | Dia. 14.4-15.6mm | 1.4mm | |||||
| B7 | Dia. 15.3-16.5mm | 1.45mm | |||||
| B8 | Dia. 16.1-17.3mm | 1.55mm | |||||
| B9 | Dia. 16.9-18.1mm | 1.65mm | |||||
| B10 | Dia. 17.7-18.9mm | 1.55mm | |||||
| B11 | Dia. 18.5-19.7mm | 1.65mm | |||||
| B12 | Dia. 19.3-20.5mm | 1.65mm | |||||
| B13 | Dia. 20.1-21.3mm | 1.65mm | |||||
| B14 | Dia. 20.9-22.1mm | 1.65mm | |||||
| B15 | Dia. 21.7-22.9mm | 1.55mm | |||||
| B16 | Dia. 22.5- 23.7mm | 1.65mm | |||||
| B17 | Dia. 23.3-24.5mm | 1.65mm | |||||
| B18 | Dia. 24.1-25.3mm | 2.05mm | |||||
| B19 | Dia. 24.9-26.1mm | 1.85mm | |||||
| B20 | Dia. 25.7-26.9mm | 1,85mm | |||||
| B21 | Dia. 26.5-27.7mm | 1.95mm | |||||
| B22 | Dia. 25.3-29.5mm | 2.45mm |
