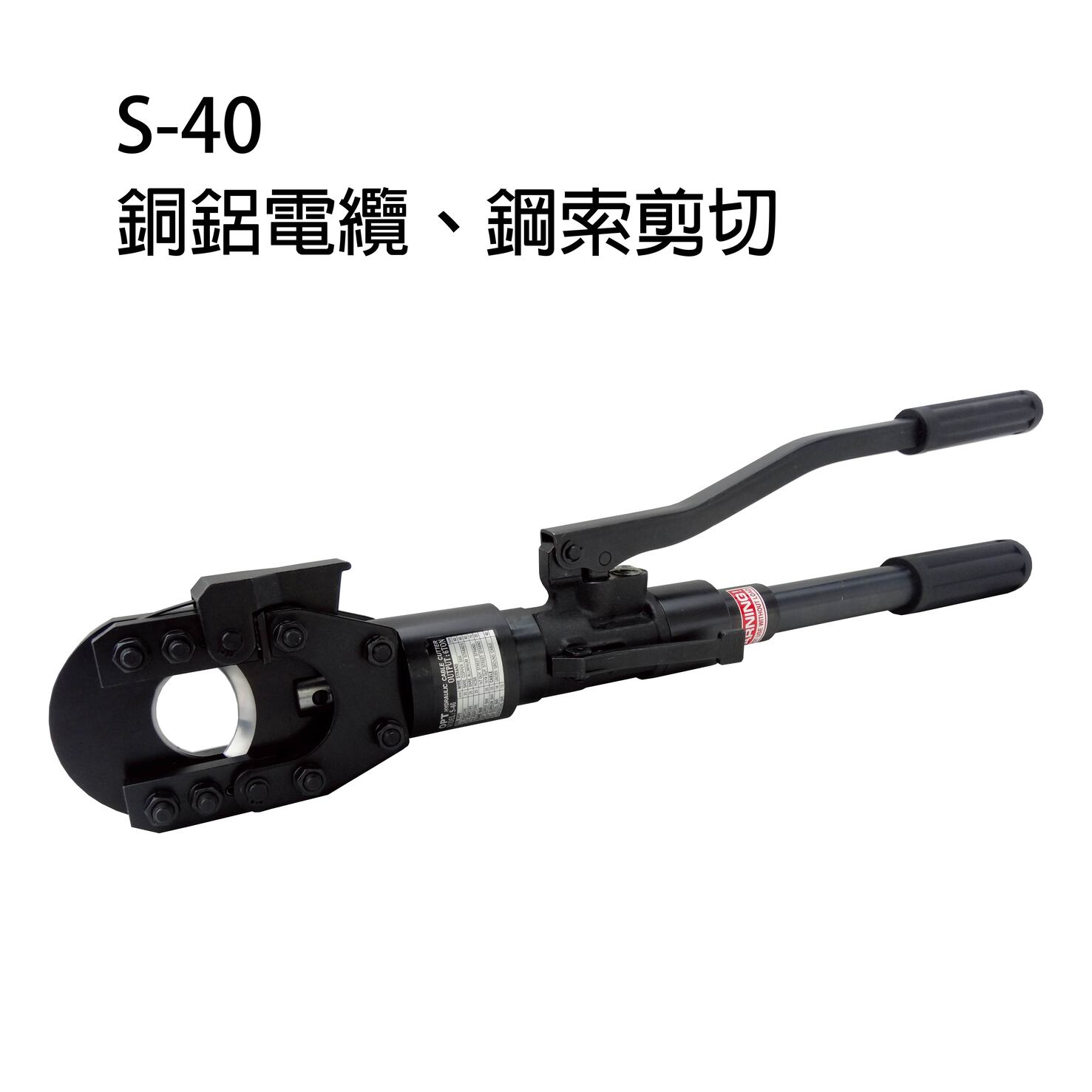

S-40 (Manual Type)
8 tons output / 6kgs / 560mm
Double-stage hydraulic design
Cutting range
Hemp-core wire rope 6x7 Max. O.D. 22mm
Hemp-core wire rope 6x12 Max. O.D. 25mm
Hemp-core wire rope 6x19 Max. O.D. 25mm
Soft copper & aluminum round bar Max. O.D. 25mm
Soft steel round bar (below SS41) Max. O.D. 16mm
Bare coppper & aluminum wire strand Max. O.D. 40mm
Armored underground cable Max. O.D. 40mm
Cutting range
Hemp-core wire rope 6x7 Max. O.D. 22mm
Hemp-core wire rope 6x12 Max. O.D. 25mm
Hemp-core wire rope 6x19 Max. O.D. 25mm
Soft copper & aluminum round bar Max. O.D. 25mm
Soft steel round bar (below SS41) Max. O.D. 16mm
Bare coppper & aluminum wire strand Max. O.D. 40mm
Armored underground cable Max. O.D. 40mm
S-40 (Manual Type)
8 tons output / 6kgs / 560mm
Double-stage hydraulic design
| Model No. | Output | Hemp-core wire rope 6x7 | Hemp-core wire rope 6x12 | Hemp-core wire rope 6x19 | Soft copper & aluminum round bar | Soft steel round bar (below SS41) | Bare coppper & aluminum wire strand | Armored underground cable | Weight | Length | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-40 | 8 tons | Max. O.D. 22mm | Max. O.D. 25mm | Max. O.D. 25mm | Max. O.D. 25mm | Max. O.D. 16mm | Max. O.D. 40mm | Max. O.D. 40mm | 6kgs | 560mm | Double-stage hydraulic design |
