Remote hydraulic crimpers

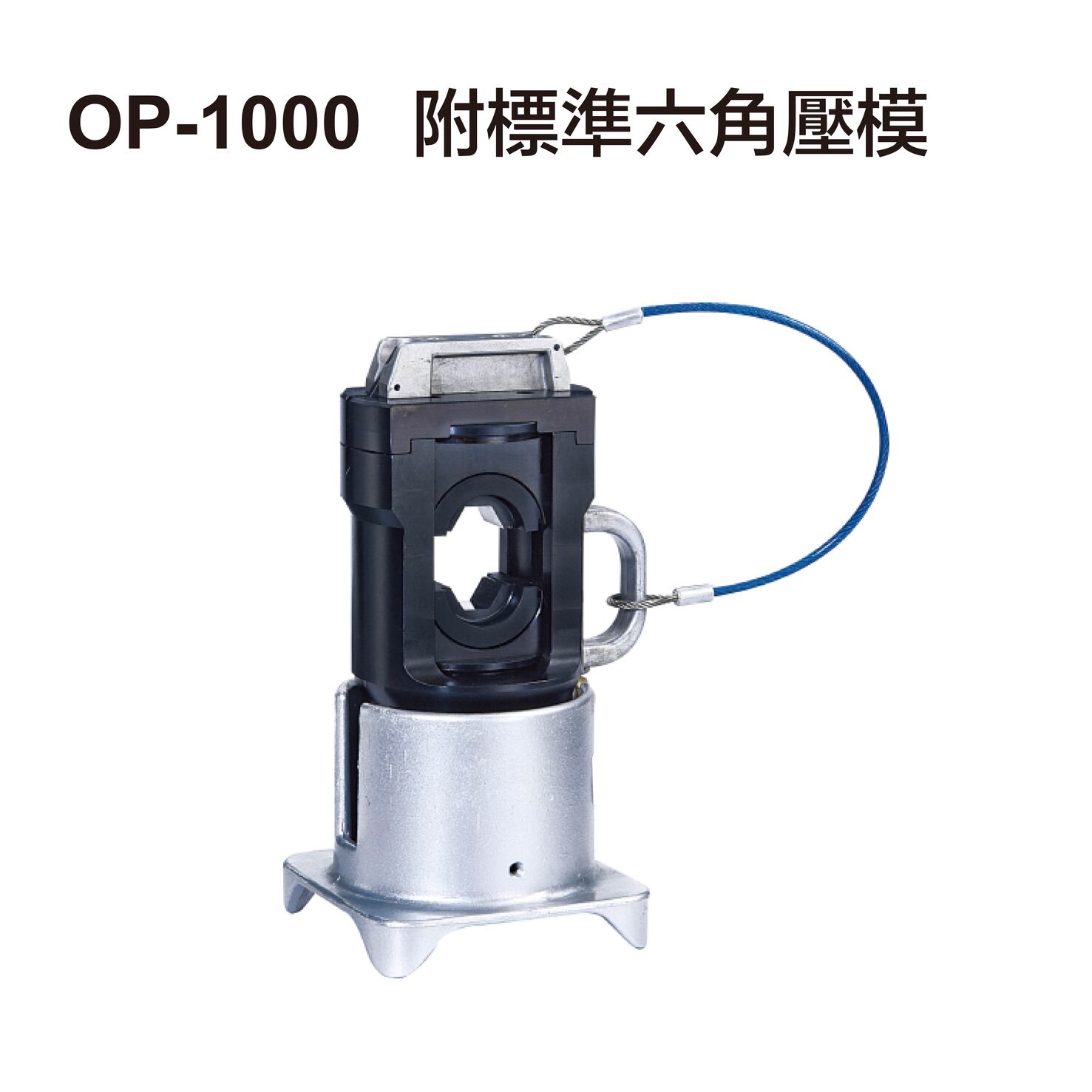

OP-1000 REMOTE HYDRAULIC CRIMPING HEAD
OP-1000
60 tons remote hydraulic crimping head
Distribution & transmission line and
sleeves lugs hexagon crimping
Remote type
Standard dies set (4pieces)
500/630/800/1000mm2
(i.e. B101500-B1011000/ 101 Type)
OP-1000
400-1000mm2 hexagon
crimping range
60 tons output
Weight: 30.7kgs
Length: 450mm
60 tons remote hydraulic crimping head
Distribution & transmission line and
sleeves lugs hexagon crimping
Remote type
Standard dies set (4pieces)
500/630/800/1000mm2
(i.e. B101500-B1011000/ 101 Type)
OP-1000
400-1000mm2 hexagon
crimping range
60 tons output
Specification
| Model No. | Output | Application | Type | Standard dies | Crimping range supported | Length | Weight |
|---|---|---|---|---|---|---|---|
| OP-1000 | 60 tons | Distribution & transmission line and sleeves lugs hexagon crimping | Remote | Standard dies set (4pieces) 500/630/800/1000mm² (i.e. B101500-B1011000/ 101 Type) | 400-1000mm² hexagon crimping range | 450mm | 30.7kgs |
