Remote hydraulic crimpers

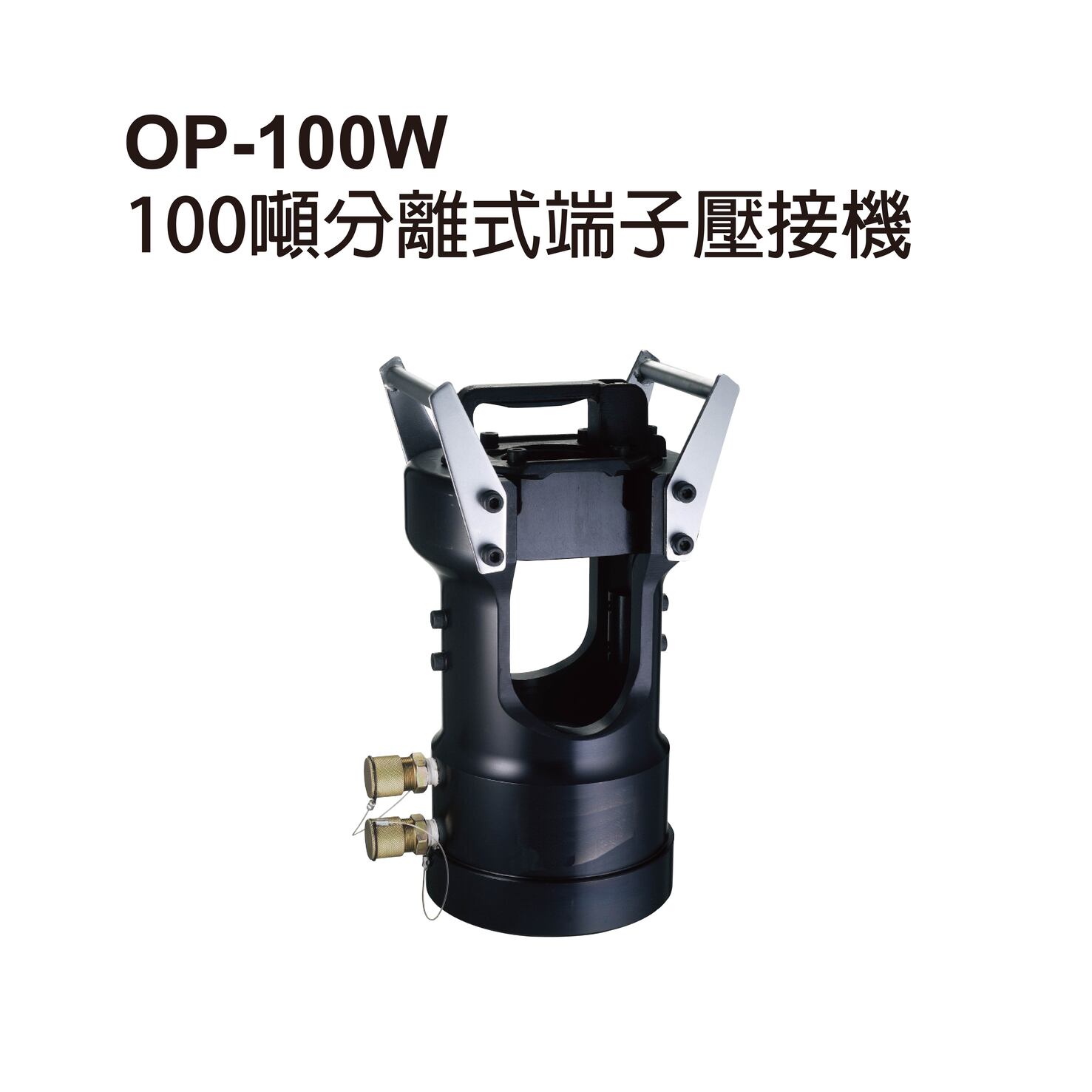

OP-100W REMOTE HYDRAULIC CRIMPING HEAD
OP-100W
Product Details
100 tons remote hydraulic crimping head
Distribution & transmission line and sleeves lugs
hexagon crimping
Remote type
22mm stroke
Double acting
314c.c. oil volume
For lugs Max. O.D. 75mm
OP-100W
Weight: 32kgs
Dia. 200x350(H)mm
100 tons remote hydraulic crimping head
Distribution & transmission line and sleeves lugs
hexagon crimping
Remote type
OP-100W
Specification
| Model No. | Output | Application | Type | Stroke | Acting | Oil volume | For lugs | Weight | Dimension |
|---|---|---|---|---|---|---|---|---|---|
| OP-100W | 100 tons | Distribution & transmission line and sleeves lugs hexagon crimping | Remote | 22mm | Double acting | 314c.c. | Max. O.D. 75mm | 32kgs | Dia. 200x350(H)mm |
