CNC Turning Center

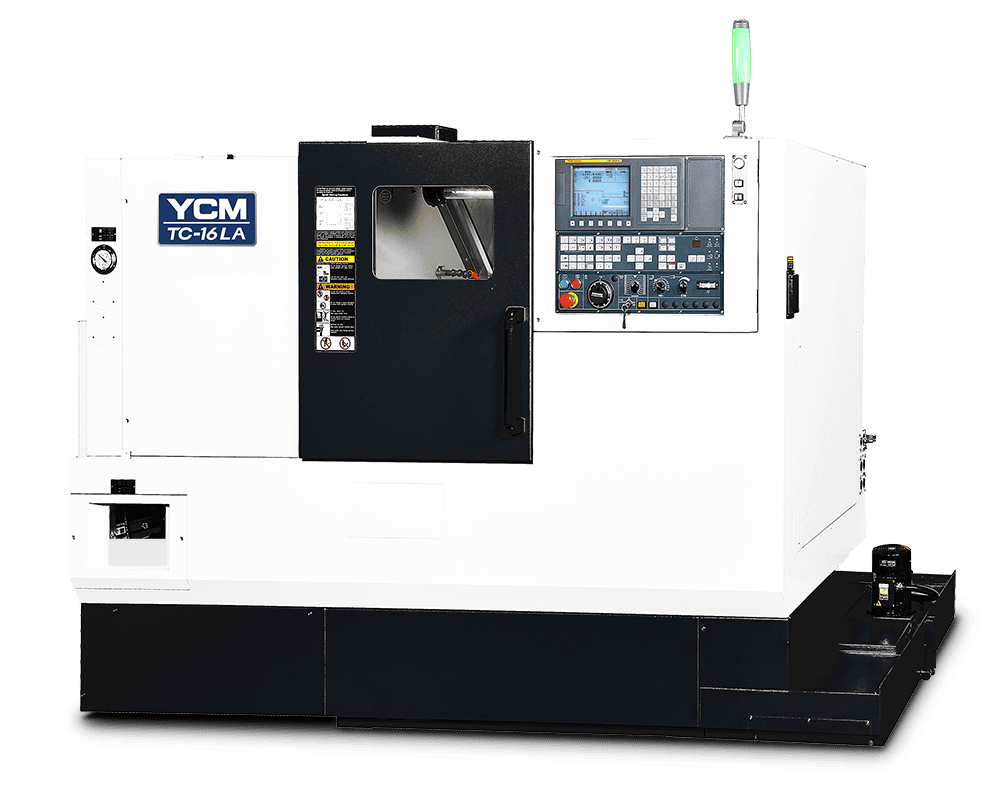

TC-16LA CNC Turning Center
TC16系列

TC16 Series - 6"-8" Chucks High Productivity General Purpose Turning Machines.

Specification

High Rigidity Structure Design

  • 6" (Hole through Draw Bar ø52mm); 8" (Hole through Draw Bar ø66mm)
  • With low resistance and low friction, theLinear Guideway Design on X/Z Axis prolongs machine life.
  • One-piece 45° Slant bed design extends the space for removing chips.
  • MEEHANITE® casting with high damping capacity
  • Quick and reliable servo-driven turret is hydralic clamping
  • Extra large and high precision clutch provides high positioning and repeatability accuracy.
  • Diverse choices of tailstock and turning length
  • Diverse choices of tailstock and turning length
  • High efficiency and low power loss plunger pump adopted

High Rigidity Structure Design

High Rigidity & High Speed Spindle

  • Large diameter and high precision NN series roller bearings, equipped with angular contact ball bearings, provides the best radial and axial rigidity during machining.
  • Symmetric head design dissipates heat, and reduces thermal deformation.
  • Easy to adjust and repair.
  • With low resistance and low friction, the linear guideway design on X/Z axis achieves flawless positioning accuracy.
  • The axial pretension design on ball screws reduces thermal displacement.

High Rigidity & High Speed Spindle

High Efficiency Chip Disposal System

  • 45°one-piece slant bed design extends chips removal space.
  • The independent coolant tank isolates the base from heat exposure.
  • A special design of the coolant tank prevents the chips from flowing into the machine.
  • The design of main/sub coolant tank simplifies the cleaning of chip conveyor.
  • The filter and sub coolant tank can be drawn out separately for easy maintenance.

Automatic Production System

  • Reduce manual loading/unloading time and achieve 24-hour production, improving the factory utilization.
  • Save labor cost, improve productivity and lower defection rate.
  • Reduce changeover time to meet the demand of low volume production of diversified parts.
  • Flexible modular system and easy to be installed based on various product line.
