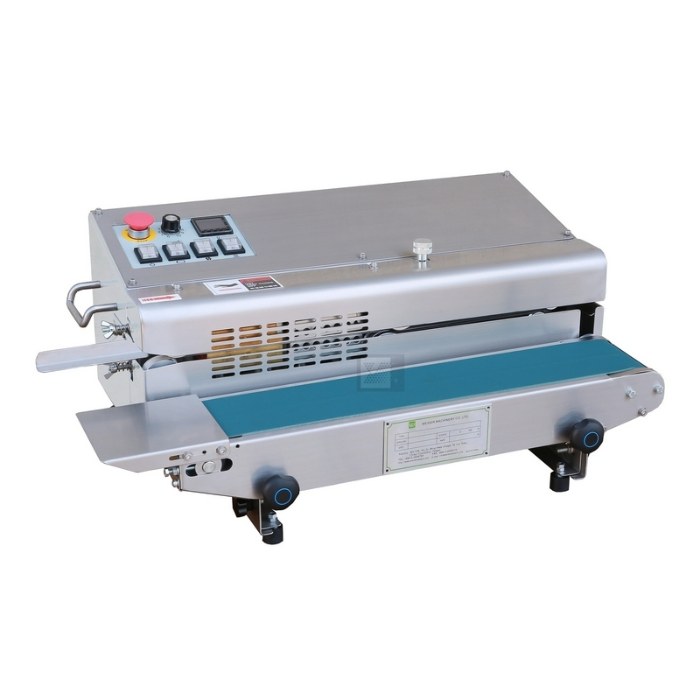

WD-533 is a compact table-top band sealer.  It is convenient to use in any place for its small volume.   The pre-made bags are sealed lying flat. It delivers high quality bag sealing for low production packaging operations.   We adopt Japanese OMRON electronic thermostat, 25W Taiwan motor, and Teflon belt (high quality imported from Japan).  The conveyor belt is adjustable forward or backward depending on the bag size.  The guide stripe on the conveyor belt is designed to prevent the conveyor belt from deviating.

WD-533S-CE  Continuous band sealer  YouTube video

Electrical Specifications:

• Dimensions : 740 x 460 x 320 mm (Lx W x H)
• Conveyor belt size : 660 x 110 mm (L x W)
• Electrical : 110V/ 220 V /1 Ph / 50/60HZ
• Infeed direction : Left to right(standard)
• Teflon Conveyor width : 110mm
• Conveyor loading weight : 8kg Bag thickness  Up to 0.7mm
• Sealing speed : 0-12 m per min. (variable speed)
• Temperature range : 0-399 degrees Celsius
• Sealing width : Standard 10 mm (5 mm available)
• Bag length range : 50-200 mm
• Conveyor adjustment :Vertically: 44 mm                                                                                             Horizontally: 78 mm

Bag material:

• PE, PP, Aluminum foil bag or heat sealable materials.

Options:

• Stainless steel body(S)
• Ribbon coder (R)
• Counter (C)
• Conveyor width 200mm
