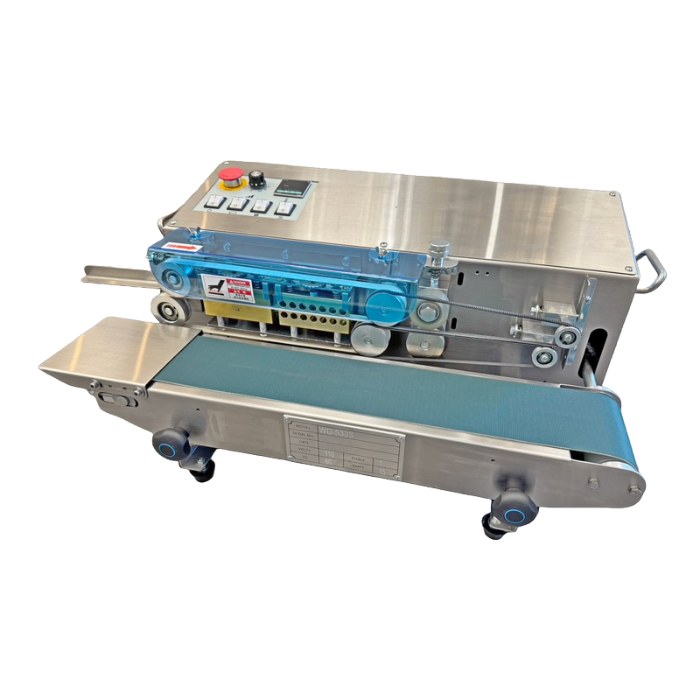

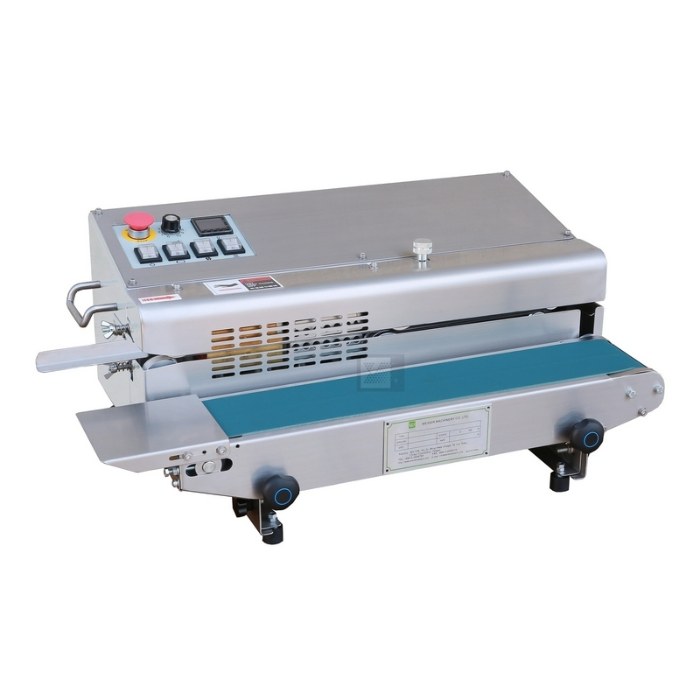

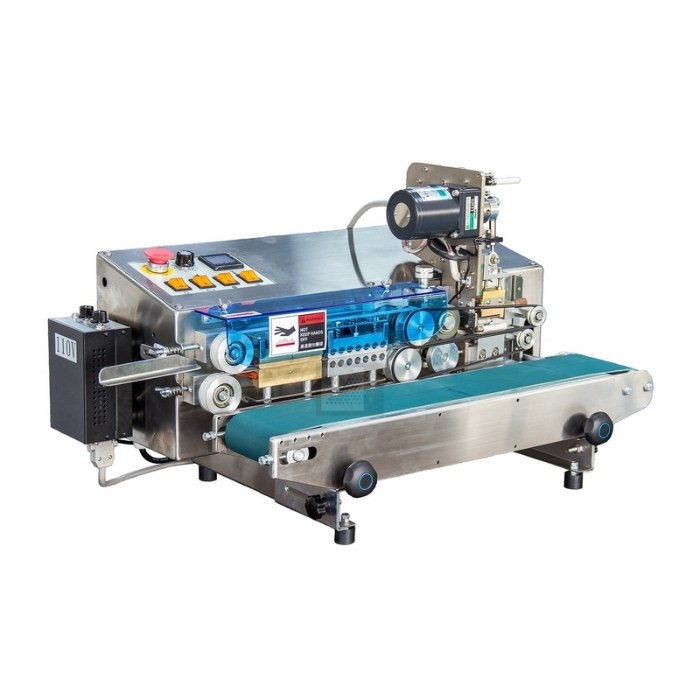

WD-533R is a compact tabletop continuous band sealer with a coding imprinter. It is convenient to use in any place for its small volume. The pre-made bags are sealed and lying flat. This horizontal continuous band sealing machine delivers high-quality bag sealing for low-production packaging operations. We adopt a Japanese OMRON electronic thermostat, 25W Taiwan motor, and Teflon belt (high quality imported from Japan). The conveyor belt is adjustable forward or backward depending on the bag size. The guide stripe on the conveyor belt is designed to prevent the conveyor belt from deviating.

[Video]WD-533R Horizontal Continuous Band Sealer with Coding Printer

Electrical Specifications:

• Dimensions 740 x 460 x 320 mm (Lx W x H)

• Conveyor belt size 660 x 110 mm (L x W)

• Electrical 110V/ 220 V /1 Ph / 50/60HZ

• Infeed Direction Left to right(standard)

• Teflon Conveyor width 110mm

• Conveyor loading weight 8kg

• Bag thickness Up to 0.7mm

• Sealing speed 0-12 m per min. (variable speed)

• Temperature range 0-399 degrees Celsius

• Sealing width Standard 10 mm (3mm/ 5 mm available)

• Bag length range 50-200 mm

• Conveyor adjustment Vertically: 44 mm

• Horizontally: 78 mm

Bag material:

• PE, PP, Aluminum foil bag or heat sealable materials.

Options:

• Stainless steel body(S)

• Counter (C)

• Conveyor width 200mm
