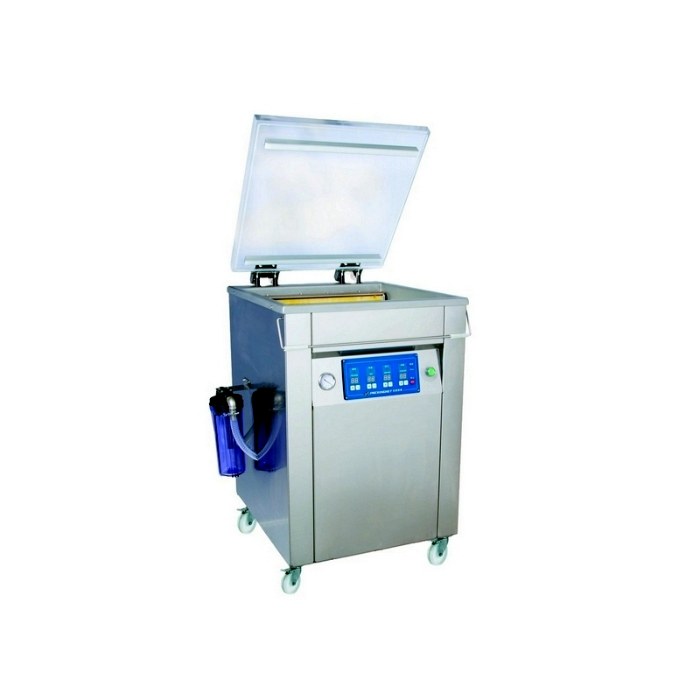

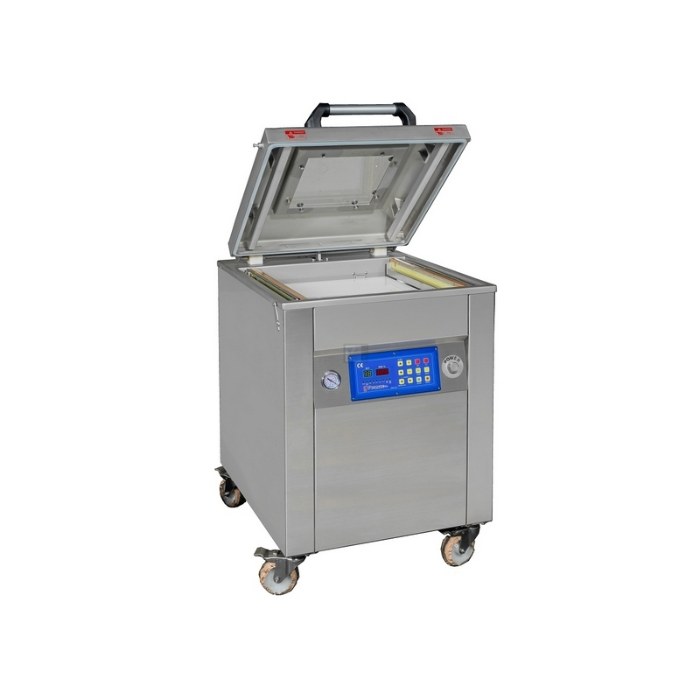

The model SC-520LR is one of our most popular single chamber vacuum sealer models. The “LR” in the model number that features two 21.3” seal bars on the left and right side of the vacuum cavity area. As all the UMPACKT chamber vacuum sealers, this machine is certified, and labeled as meeting UL and CSA safety standards for packaging equipment. This heavy-duty functional machine utilizes all # 304 stainless steel construction, and an easy-cleaning flat working deck. It features a Busch (model RB0021) (1HP) vacuum pump for reliable and powerful vacuum performance.

Electric specifications:

• Power Supply : 1PH 220V 60HZ 15AMP

• Seal Bar Width: 6mm

• Seal Bar Length 21.3”(540mm)

• Distance Between Seal Bars 17.7"(450mm)

• Vacuum Pump Capacity Busch 21M3/HR

• Chamber Size 23.6”x23.6”(600x600mm)

• Chamber Depth 7.9”(200mm)

• Machine Weight 309lbs/140kg

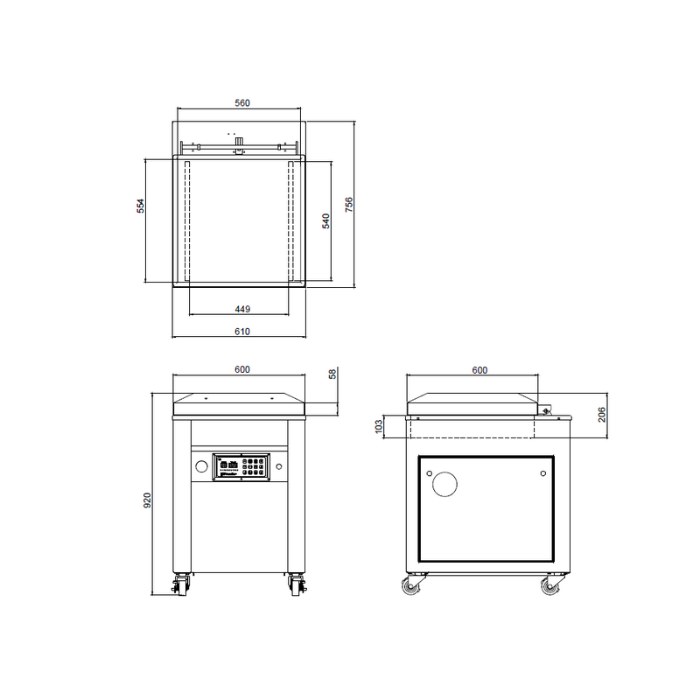

• Machine Size 24”x30”x36” (610x756x916mm)

Standard Features:

• Made in Taiwan

• Electronic control baord PD-01 Basic Digital Control Panel

• Stainless Steel Construction

• Stainless Steel lid with view port

• Bladder Activated Sealing

• Busch Vacuum Pump

• Vacuum stop key

• Water Resistant Electrical Box (IP56)

• Air Assist Sealing

• PP plate for heigh adjustment

• UL, CE Certified & Labeled

Options:

• PNC-01 Microprocessor Control

• Soft Air

• Bi-Active Seal

• Gas Flush System

• Twin Beam Sealing

• Larger capacity vacuum pump
