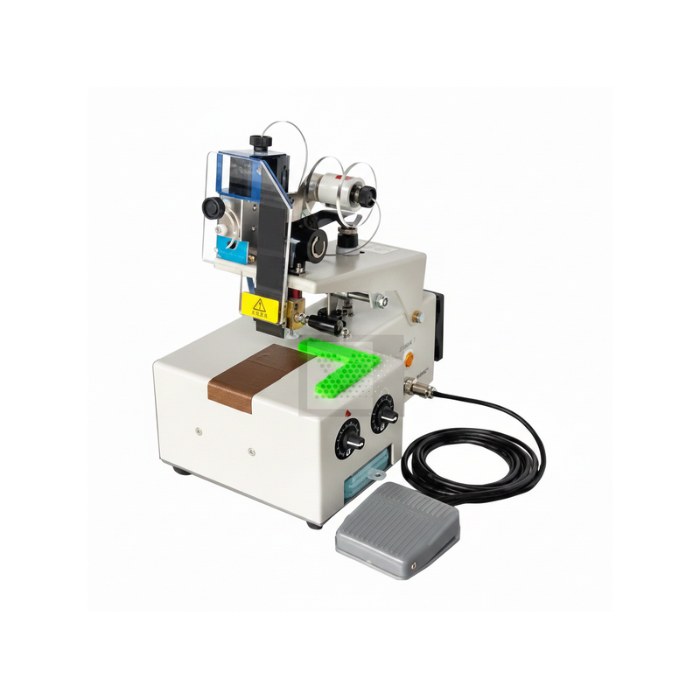

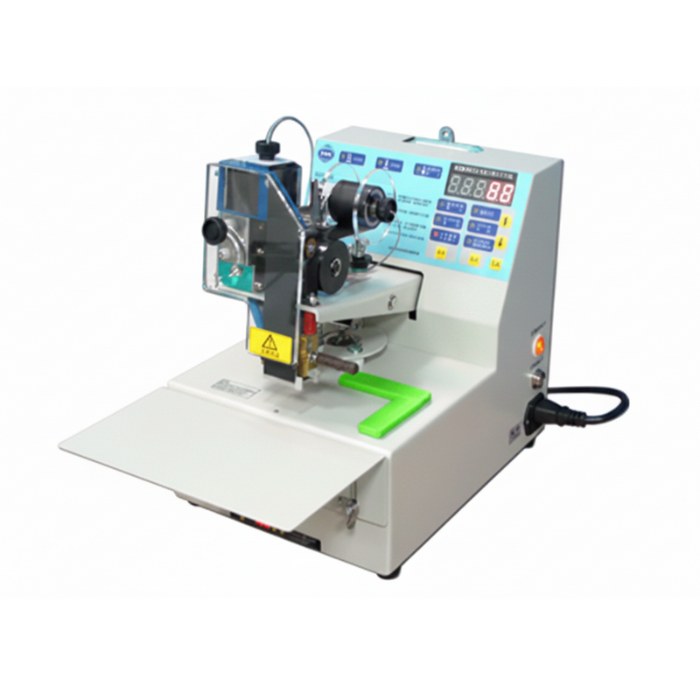

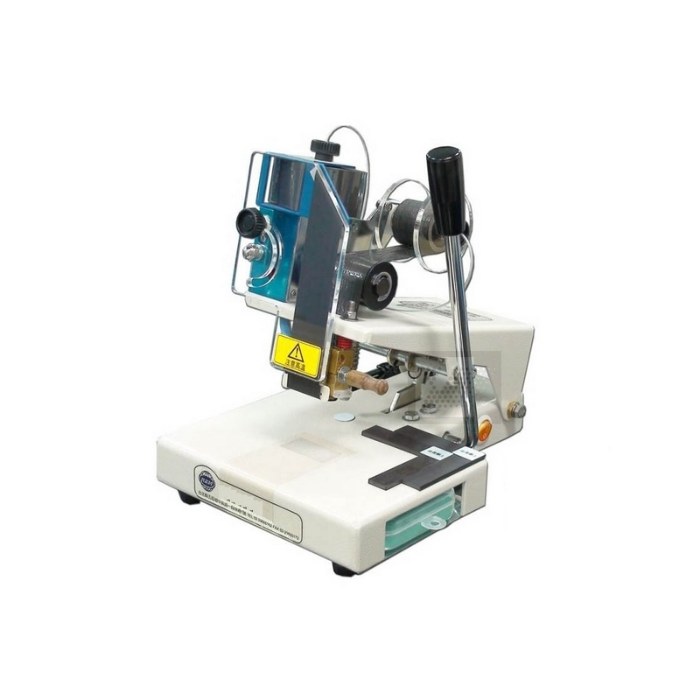

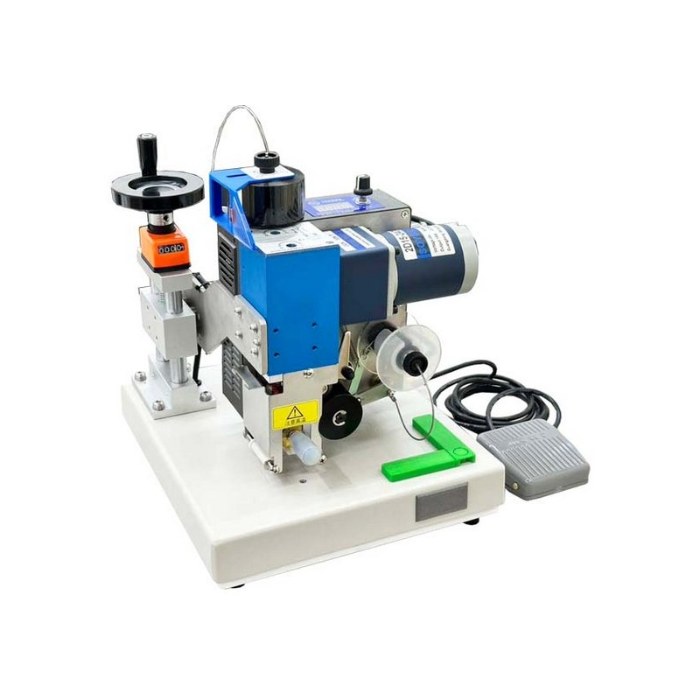

UMPACKT semi auto date coding machine is suitable for printing date, weight, and LOT. NO. on packing bags, paper, labels, color boxes, etc. It can print 1-2 lines, and a line can be placed up to 14 digits. Equipped with a digital touch panel, the users can control temperature and time settings, and precise control. There are three modes of operation, manual, automatic, and auto continuous cycle printing. With the intelligent pressure sensing device, the operators can automatically determine the thickness of printed materials. The printing time and temperature in digital displays could be self-set. It is also equipped with a 5-digit counting display and a solenoid valve drive.
Specification:
Power source: 110V/220V 50/60Hz
Weight: 10Kg
Heating timer: 0.2-2.5sec
Cooling Timer: 1.0-6.0sec
Printing area: 4mm x 28mm/one line
8mm x 28mm/two lines (Standard)
16mm x8mm/three lines
Size of letters: 2mm x 4mm H (Brass material)
Brass letter size: High quality brass letters 2mm(W) x 4mm(H)
Dimension (W x D x H): 380L x 220W x 320H(mm)
