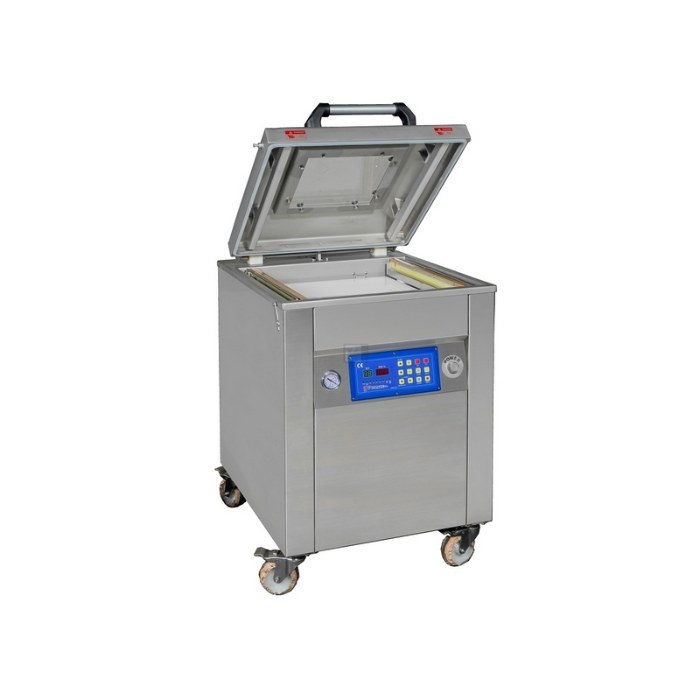

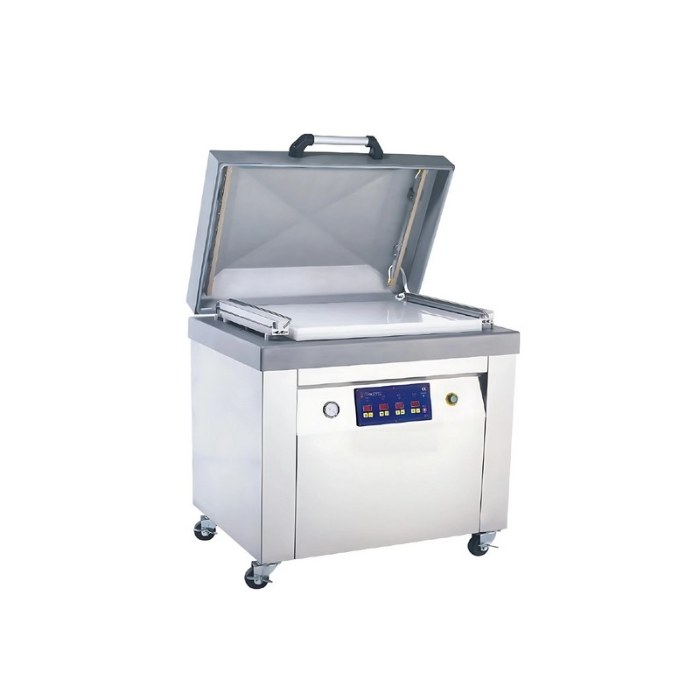

The model SC-770FB can work in any inspected facility. The 'FB' in the model number features two 30.3" seal bars on the front and back side of the vacuum cavity area. Like all UMPACKT chamber vacuum sealers, this machine is ETL tested, certified, and labeled as meeting UL and CSA safety standards for packaging equipment, as well as NSF sanitary standards. This heavy-duty functional machine utilizes all #304 stainless steel construction, an easy-cleaning flat working deck, and Nichrome heating wires to prevent rusting. It features a Busch (model RA0040) (2HP) vacuum pump for reliable and powerful vacuum performance. In addition, it features a splash-proof control box, sealed power supply device, seal timer protection, and overcurrent protection. It has an intelligent panel control system with 14 memory programs and nylon wheels for durability.

Electric specifications:

• Power Supply : 3PH 220V 60HZ 15AMP

• Seal Bar Width: 6mm

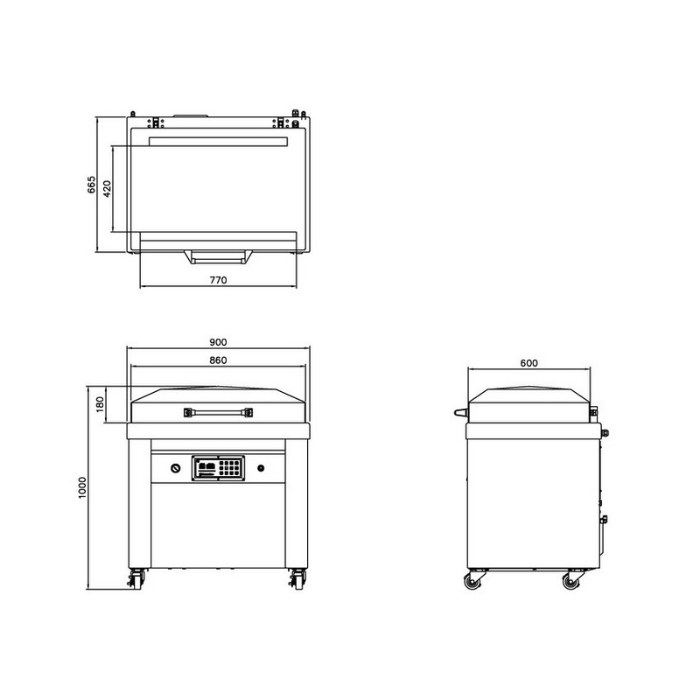

• Seal Bar Length 30.3”(770mm)

• Distance Between Seal Bars 16.5"(420mm)

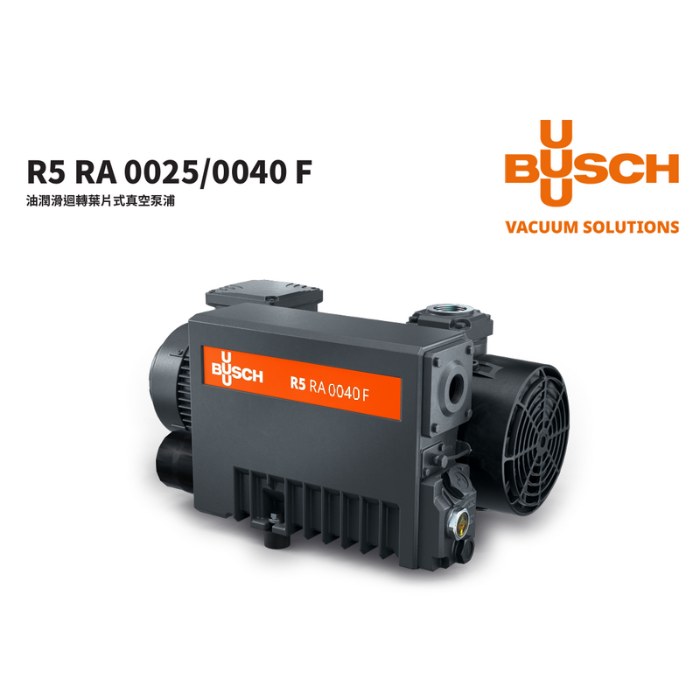

• Vacuum Pump Capacity Busch 40M3/HR

• Chamber Size 36.2”x29.1”(920x740mm)

• Chamber Depth 7.0”(180mm)

• Machine Weight 432lbs/196kg

• Machine Size 35”x26”x39” (900x655x1000mm)

Standard Features:

• Made in Taiwan

• Electronic control baord PD-01 Basic Digital Control Panel

• Stainless Steel Construction

• Stainless Steel lid with view port

• Bladder Activated Sealing

• Busch Vacuum Pump

• Vacuum stop key

• Water Resistant Electrical Box (IP56)

• Air Assist Sealing

• PP plate for heigh adjustment

• UL, CE Certified & Labeled

Options:

• PNC-01 Microprocessor Control

• Soft Air

• Bi-Active Seal

• Gas Flush System

• Twin Beam Sealing

• Larger capacity vacuum pump
