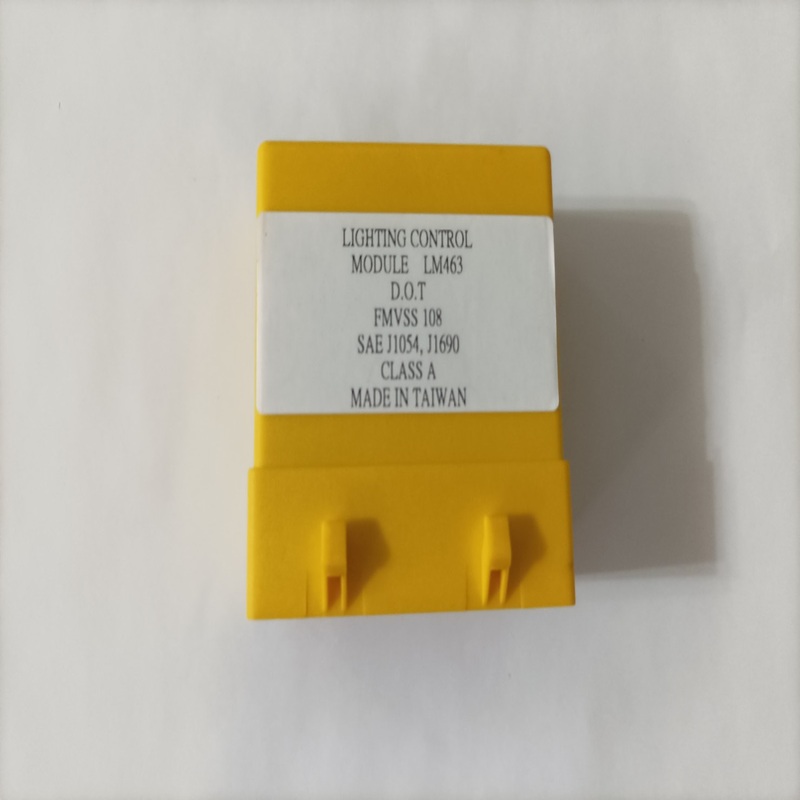

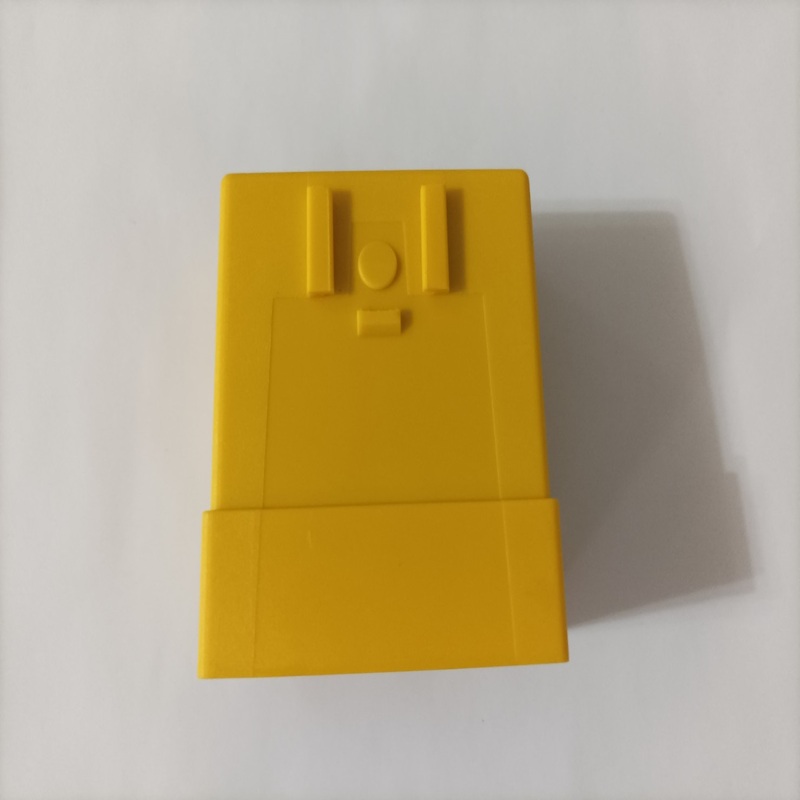

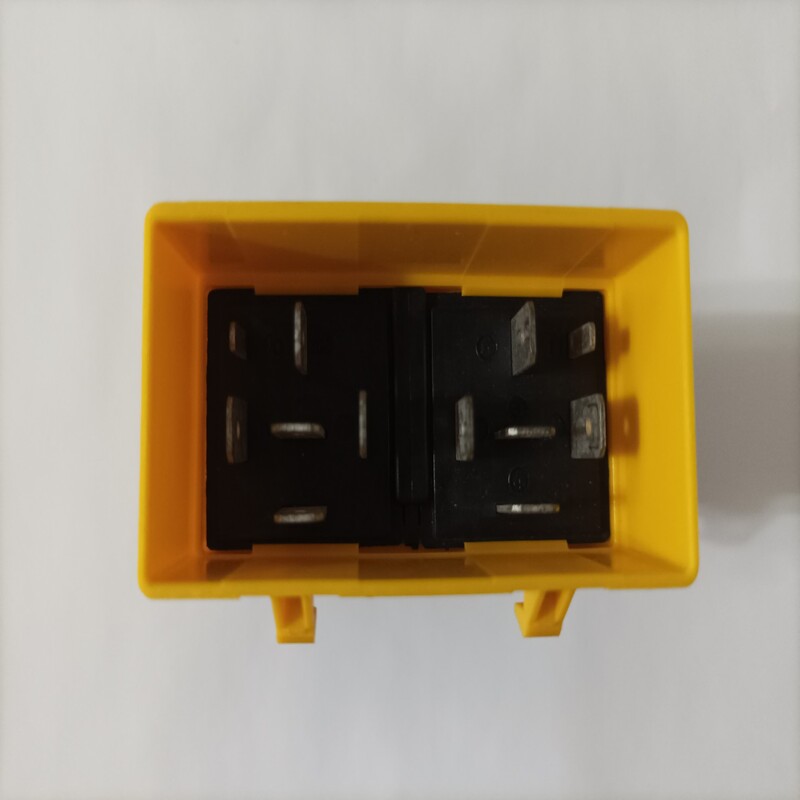

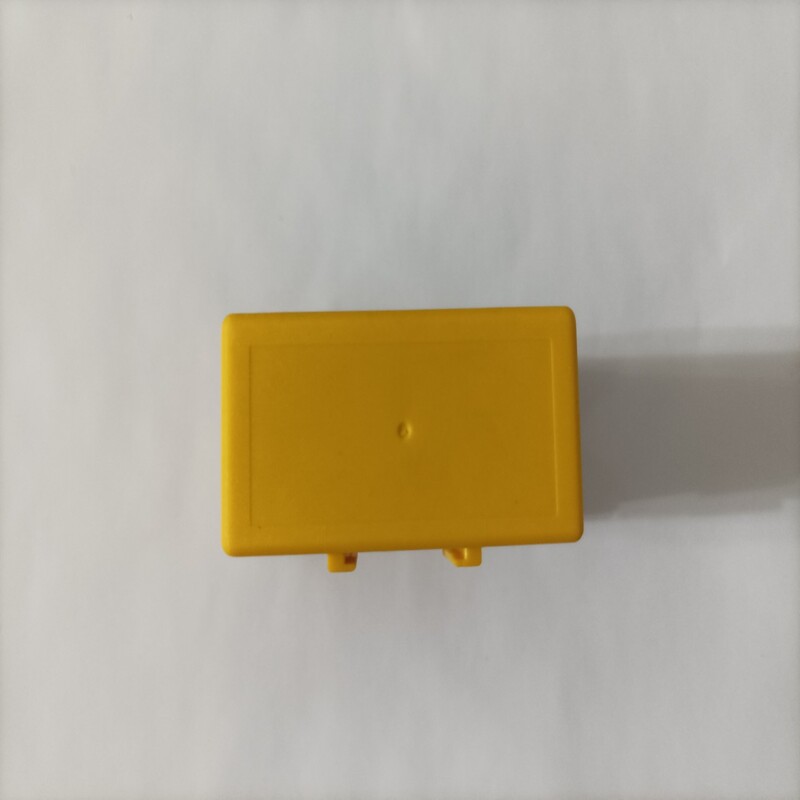

Lighting Control Module
LM463
LM463
The module can control all the lighting functions in your automobile.
Feature:
Front Turn Signal Bulbs Used As Daytime Running Lights(DRL)
Low Current Input DRL Control
Low Current Input Turn Signal Control
Low Current Input Hazard Warning Control
Brake Lamp Control
Specification
**12v 25w 2/6 Lamps Max 6 Lamp
**Time To First Flash: Less Than 1.5 Seconds
** Rated Voltage: 11 to 15 Volts DC
**Rated Load: 1 To 6 SAE Number 1156 Lamps
** Temperature Operating Range : -25∘F to 140∘F
** Voltage Drop at Rated Current : 500mv
** Duty Cycle: 35% to 75%
** Time Flash : 60-120c/m
