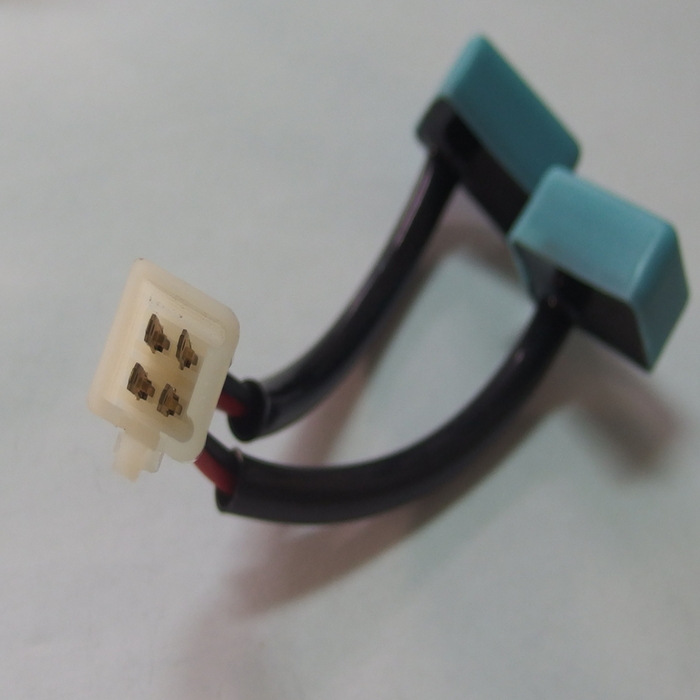

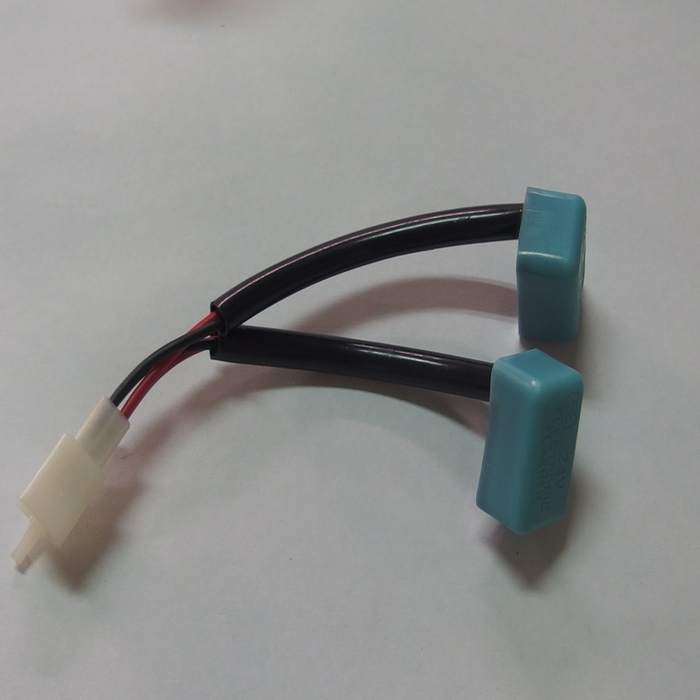

Led Turn Signal Relay
G2152-XU
G2152-XU

Feature:
* Link Double Relay

* Water Proof

Specification

*4P 12V

* Rated Load: 0.05Amp to  2 Amp self-adjusting

* Rated Voltage: 11 to 15 Volts DC

*Lamp Rating: 0.05Amp to  2 Amp



*Number Lamps: 2~4/25W Lamps (Max 6 Lamps)

*Time Flash : Less 1.5 Seconds
*Duty Cycle: 35% to 75%
* Voltage Drop at Rated Current : 500mv
*Rated Voltage: 11 to 15 Volts DC

*Temperature Operating Range : -25∘F  to 140∘F

*Flash Rate: 60~120 Flash Per Minute

*Black: Load(Lamp Output)

*Red: Battery(Power Input)
