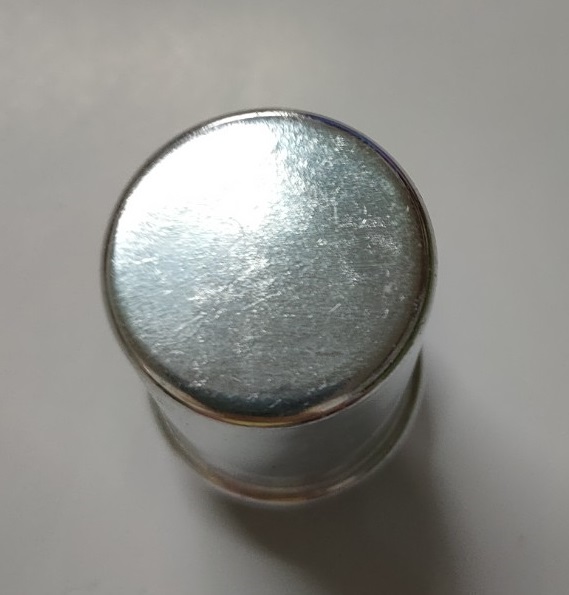

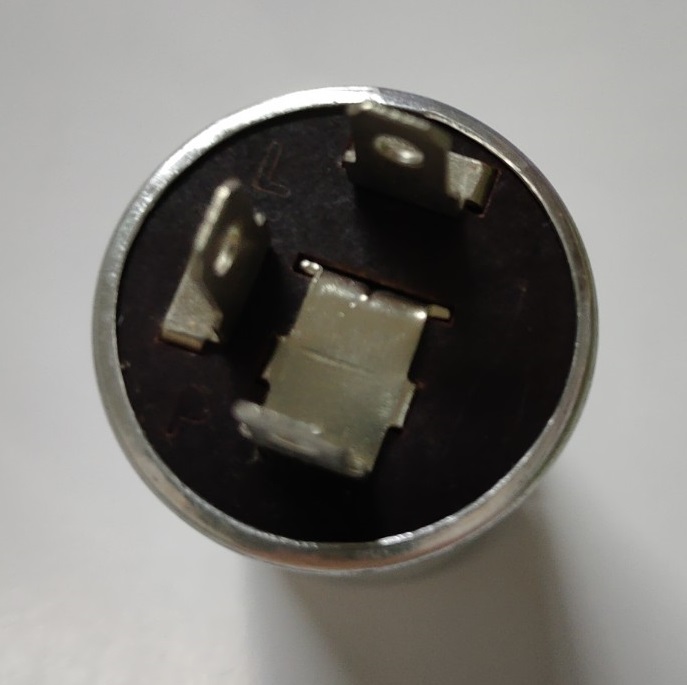

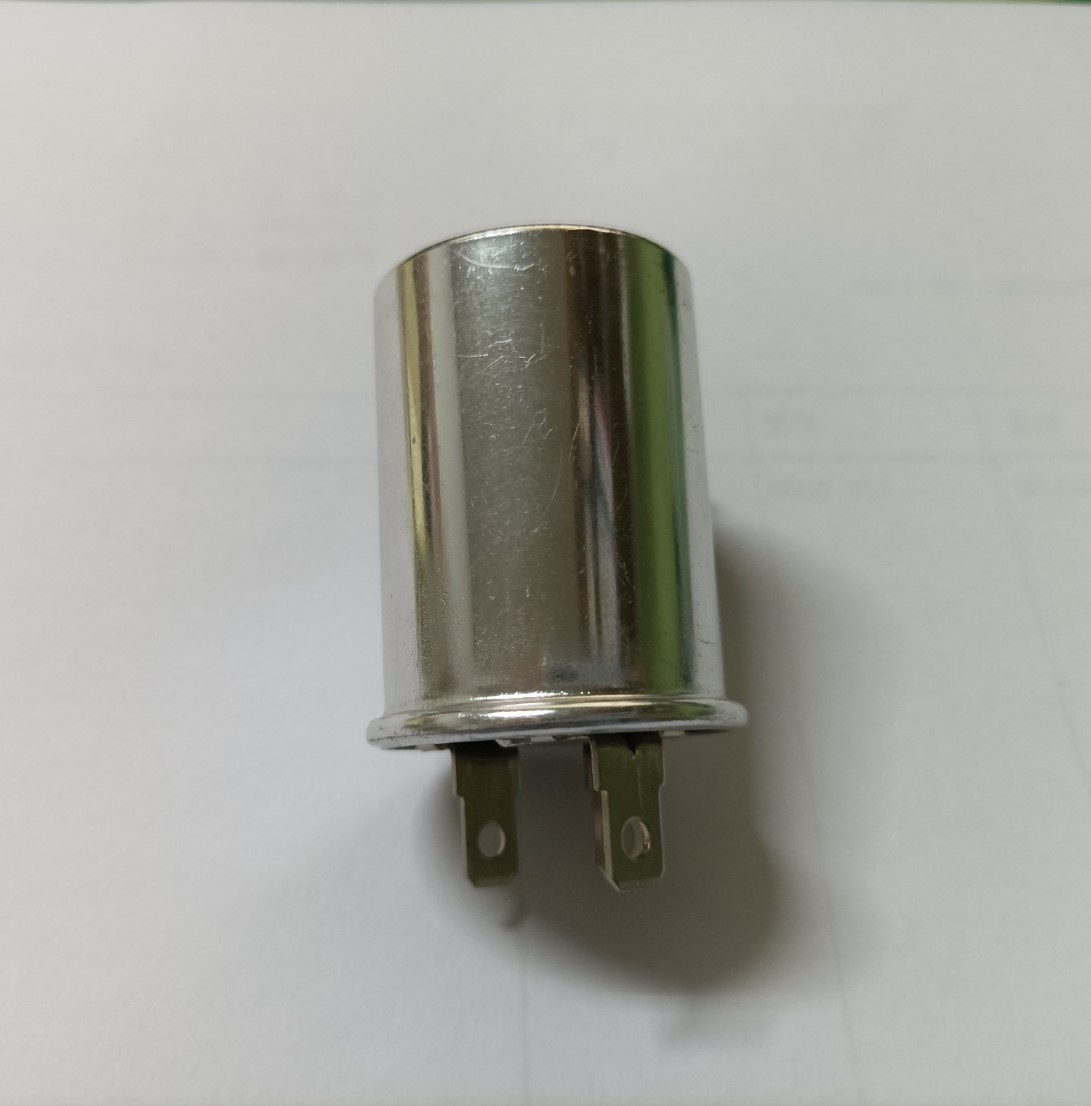

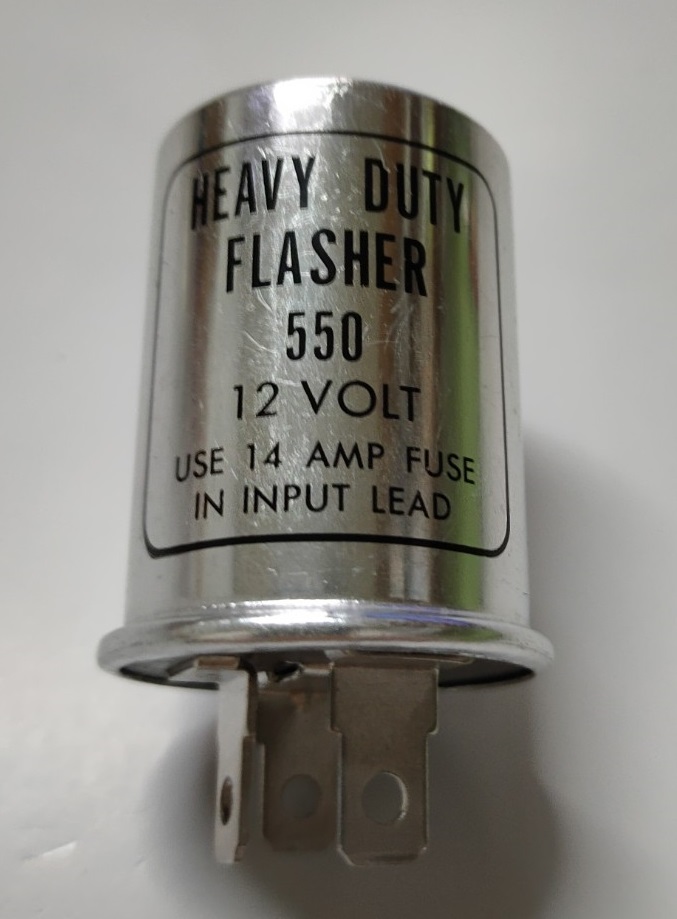

Thermo-Coupler Type Flasher
550L2
550L2

*Turn Signal Flasher Relay

*Thermo Type

*The base of flasher is Phenolic Resin Laminated Sheet

* Aluminum Housing ( Long & Short)

* Bulbs --> Incandescent

*It's flasher 550
Feature:
For Car & MotorcycleEach flasher is load tested after production and will work on all standard incandescent bulbs. Traditional 2 pin design with dedicated input and output.

Specification

** 12V/3P
** Long housing
** Temperature Operating Range : -10°F to 140°F
** Rated Voltage: 11 to 15 Volts DC
** Voltage Drop at Rated Current : 500mv
** Time to First Flash : Less than 1.5 Second
** Duty Cycle : 35% to 75%
