Led Turn Signal Relay

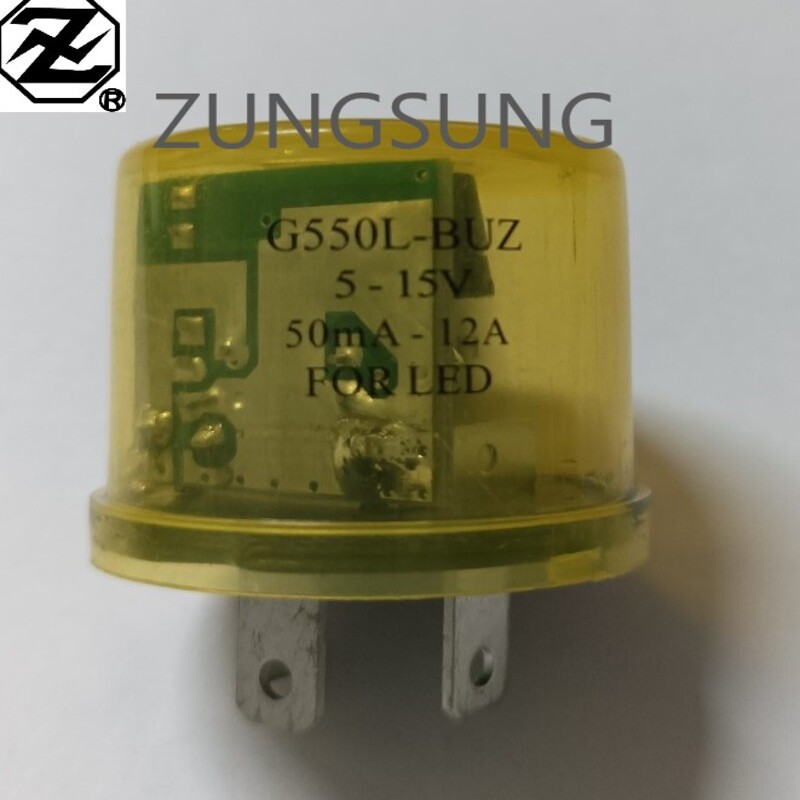

G550L-BUZ
G550L-BUZ

Resolves LED related turn signal problems such as rapid flashing, not flashing, or bulb burnt out warning on dashboard.
1. 5V-15V voltage range can be used

2. Can be connected to LED lights

3. Small size and light weight (10G)

4. The rated current is 0.5A-12A, the maximum power can reach 150W

5. Built-in buzzer

6. The temperature can be adjusted without additional radiator


7. Long service life


**This product has obtained US and Taiwan patents.

Specification

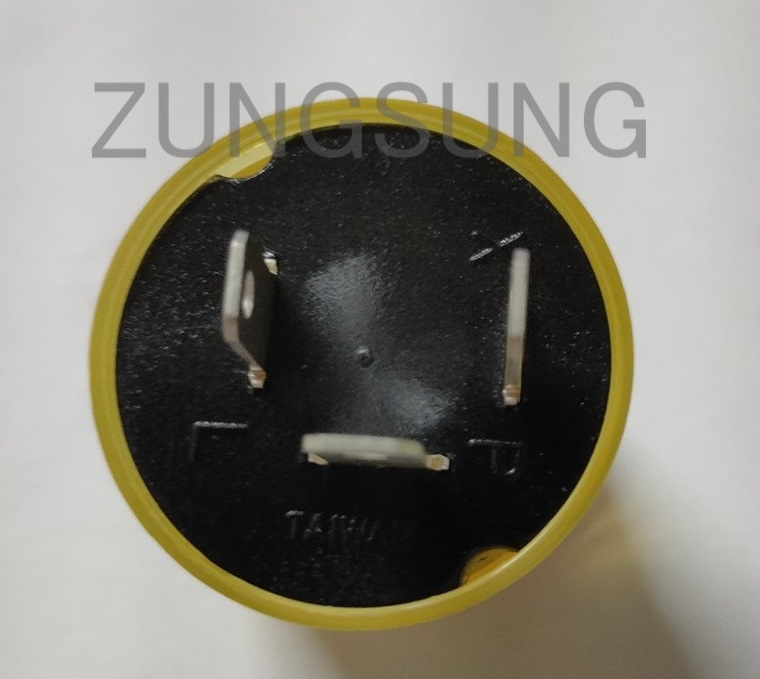

*1 piece of 3-pin 12V Electronic LED Flasher Relay

*Nominal Voltage: 12V

* Rated Voltage:5V-15V

*Switch Current: 0.5A - 12A MAX 150W

*Put-In Voltage: ≤11V

*Flash Rate: 60-120 Flash Per Minute

*Temperature Operating Range: -25∘F  to 140∘F
