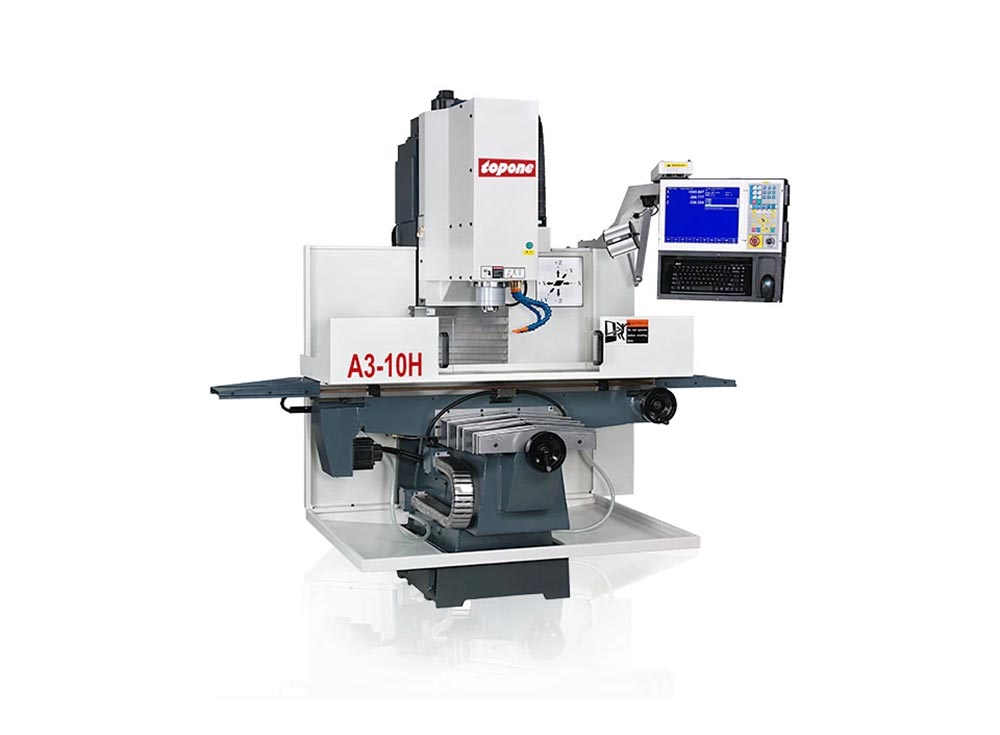

‧ Extensive travel capability: 39.9" X-axis, 19.9" Y-axis, 19.6" Z-axis.
‧ Robust 10HP motor ensures powerful performance.
‧ CAT40/BT40 spindle taper, spindle speed 8,000 rpm for versatile machining applications.
‧ Precision guide way, hardened and ground, complemented by Turcite-B coating for enhanced durability.
‧ Double nut precision ball screws ensure high accuracy and prolonged operational life.
‧ Main frame constructed from FC30 Meehanite casting with superior dampening qualities; annealing and stress relief processes ensure long-term reliability.
‧ Box ways design on Y and Z axes ensures maximum rigidity and stability; X-axis incorporates a dovetail way for added precision.
SPECIFICATIONS
| Model | A3-5/7/10H |
|---|---|
| Spindle motor | 5HP / 7.5HP / 10HP |
| Table | 13" x 60" |
| X axis Travel | 39.37" |
| Y axis Travel | 19.68" |
| Z axis Travel | 25.19" |
| Spindle taper | CAT40/BT40 |
| Quill diameter | - |
| Quill travel | - |
| Spindle rpm (Lo) | 8000 RPM |
| Spindle rpm (Hi) | 8000 RPM |
| Table load capacity | 1100 Lb |
| T-slot (W x N) | 0.62" x 3 x 2.55" |
| Spindle nose to table top | 3.93" ~ 29.13" |
| Saddle size | 47.2" |
| Machine weight | 4600 Lb |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
