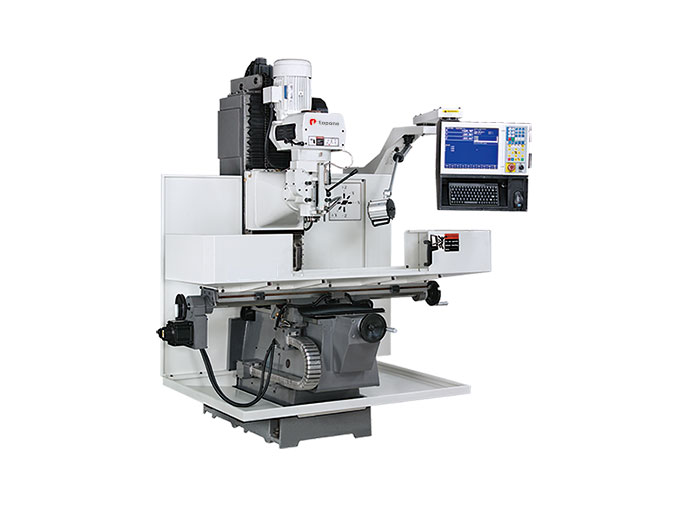

‧ Extended travel range: 33.8" X-axis, 19.6" Y-axis, 24" Z-axis.
‧ Robust 3.7 kW (5HP) spindle motor for reliable and efficient performance.
‧ NST40/NMTB40 spindle taper, spindle speed 4,000 rpm with Hi-Logear for versatile machining applications.
‧ Precision guide way, hardened and ground, enhanced with Turcite-B coating for durability.
‧ Double nut precision ball screws provide high accuracy and prolonged operational life.
‧ Main frame constructed from FC30 Meehanite casting with superior dampening qualities; annealing and stress relief processes ensure long-term reliability.
‧ Y and Z axes feature box ways design for maximum rigidity and stability.
‧ Manual quill capability adds greater flexibility in machining applications.
SPECIFICATIONS
| Model | A2-5T | A3-5T |
|---|---|---|
| Spindle motor | 5HP | 5HP |
| Table | 10" x 54" | 13" x 60" |
| X axis Travel | 32.28" | 39.37" |
| Y axis Travel | 19.68" | 19.68" |
| Z axis Travel | 24.01" | 24.01" |
| Spindle taper | NST40 | NST40 |
| Quill diameter | Ø3.93" | Ø3.93" |
| Quill travel | 5" | 5" |
| Spindle rpm (Lo) | 70~500 RPM | 70~500 RPM |
| Spindle rpm (Hi) | 600~5000 RPM | 600~5000 RPM |
| Table load capacity | 1100 Lb | 1100 Lb |
| T-slot (W x N) | 0.62" x 3 x 2.55" | 0.62" x 3 x 2.55" |
| Spindle nose to table top | 3.93" ~ 27.95" | 3.93" ~ 27.95" |
| Saddle size | 20" | 47.2" |
| Machine weight | 4550 Lb | 4600 Lb |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
