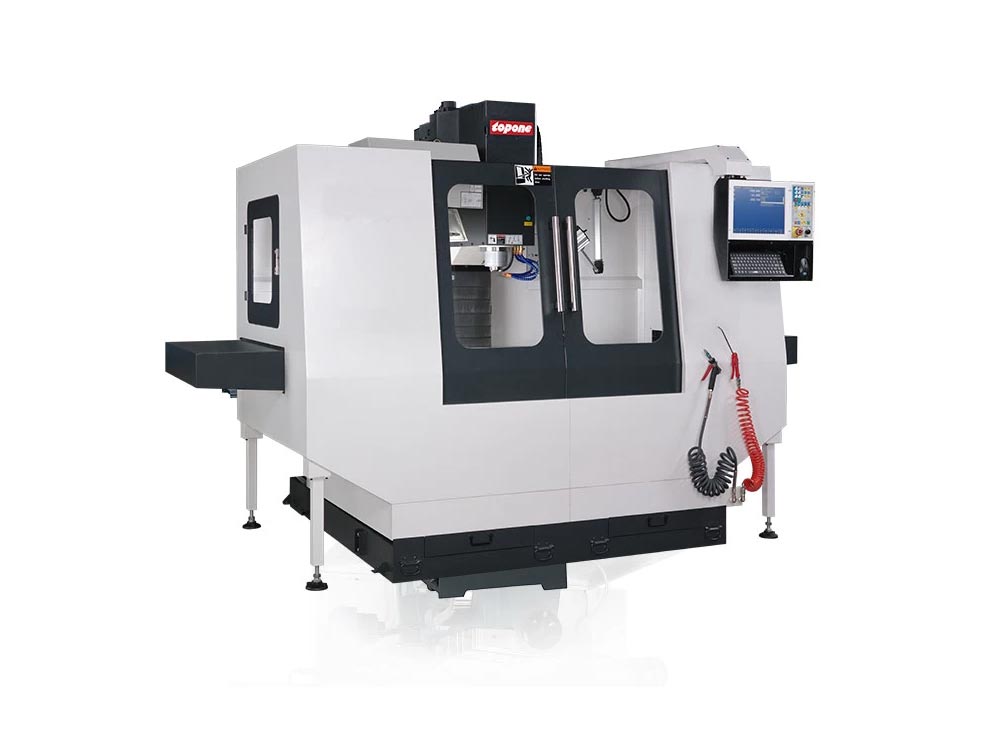

‧ Extended travel range: 33.8" X-axis, 19.6" Y-axis, 25.1" Z-axis for broad machining capability.
‧ Variable spindle power: 5HP, 7.5HP, or 10HP spindle motor options for diverse machining needs.
‧ CAT40 spindle taper enhances compatibility with various tooling options.
‧ High spindle speed of 8,000 rpm ensures efficient and precise machining.
‧ Precision guide way, hardened and ground, coated with Turcite-B for enhanced durability.
‧ Double nut precision ball screws provide high accuracy and prolonged operational life.
‧ Main frame constructed from FC30 Meehanite casting for superior dampening and reliability; annealing and stress relief ensure long-term stability.
‧ Box ways design on Y and Z axes provides maximum rigidity and stability.
SPECIFICATIONS
| Model | A2-5H | A2-7H | A2-10H |
|---|---|---|---|
| Spindle motor | 5HP | 7.5HP | 10HP |
| Table | 9" x 49" | ||
| X axis Travel | 28.34" | ||
| Y axis Travel | 15.74" | ||
| Z axis Travel | 27.95" | ||
| Spindle taper | CAT40/BT40 | ||
| Quill diameter | - | ||
| Quill travel | 5" | ||
| Spindle rpm (Lo) | 8000 RPM | ||
| Spindle rpm (Hi) | 8000 RPM | ||
| Table load capacity | 880 Lb | ||
| T-slot (W x N) | 0.62" x 3 x 2.55" | ||
| Spindle nose to table top | 3.93" ~ 31.88" | ||
| Saddle size | 20" | ||
| Machine weight | 3770 Lb | ||
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
