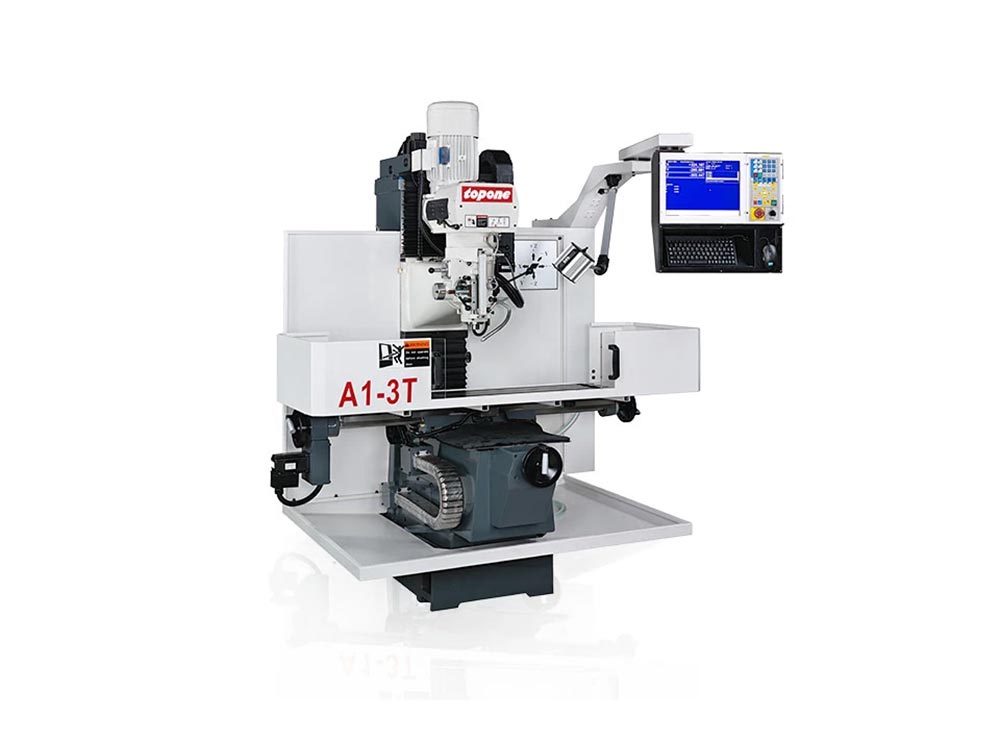

‧ Impressive travel range: 28.74" X-axis, 15.74" Y-axis, 19.68" Z-axis.
‧ Robust 2.2 kW (3HP) spindle motor ensures powerful performance.
‧ R8/NT30 spindle taper, spindle speed up to 4,200 rpm with Hi-Logear for versatile machining applications.
‧ Precision guide ways, hardened and ground, further enhanced with Turcite-B coating for durability and precision.
‧ Main frame constructed from FC30 Meehanite casting with superior dampening qualities; casting undergoes annealing and stress relief for long-term reliability.
‧ Dovetail ways on X, Y, and Z axes for stability and precision in machining operations.
‧ Automatic lubrication system with metered check valves; built-in coolant reservoir in the machine base for effective cooling.
SPECIFICATIONS
| Model | A1-3T |
|---|---|
| Spindle motor | 3HP |
| Table | 9" x 49" |
| X axis Travel | 28.34" |
| Y axis Travel | 15.74" |
| Z axis Travel | 19.68" |
| Spindle taper | R8/NT30 |
| Quill diameter | Ø3.37" |
| Quill travel | 5" |
| Spindle rpm (Lo) | 70~500 RPM |
| Spindle rpm (Hi) | 600~5000 RPM |
| Table load capacity | 880 Lb |
| T-slot (W x N) | 0.62" x 3 x 2.55" |
| Spindle nose to table top | 3.93" ~ 23.62" |
| Saddle size | 20" |
| Machine weight | 3770 Lb |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
