Vertical Milling Machine
TOM-2VSG Variable Speed Head

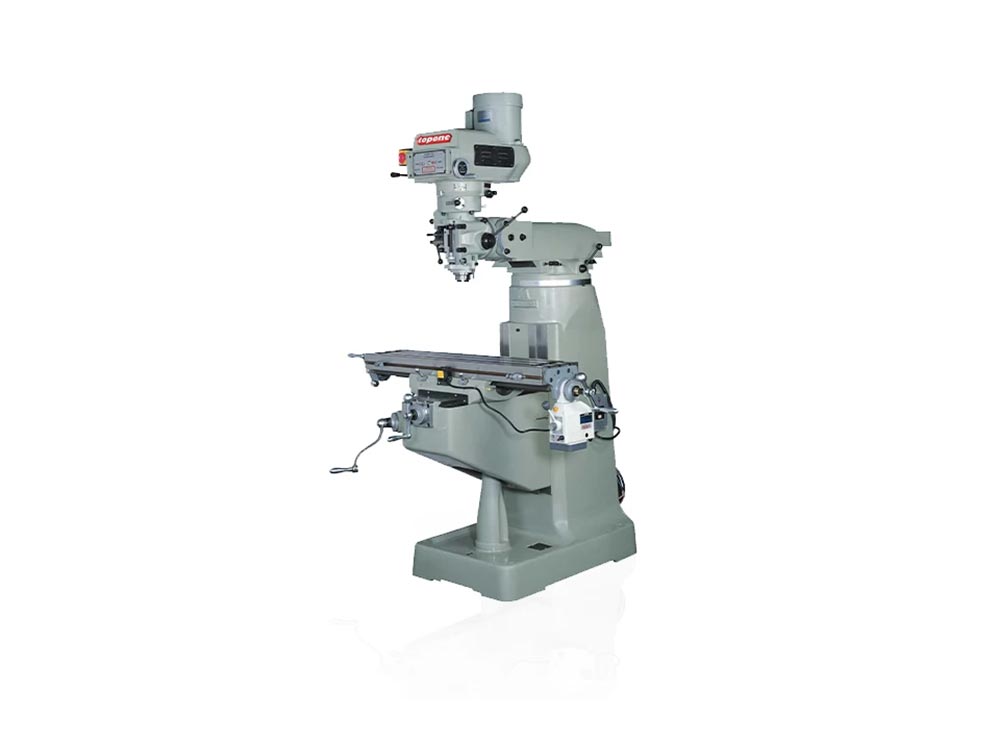

TOM-2VSG
‧ Variable Speed Head Technology, speed can be flexibly adjusted to machining needs.
‧ 42" x 9" Table (Standard).
‧ 3HP Motor, Spindle Speed 60-4200 RPM (Variable).
‧ Meehanite castings, hardened & ground ways, Turcite-B coated.
‧ Head tilt: 45° Forward & Back, 90° Right & Left.
Specification
SPECIFICATIONS
| Model | TOM-2VSG |
|---|---|
| Spindle | |
| Spindle taper | R8 (NST30) |
| Spindle Speeds | 60-4200 RPM (Variable) |
| Quill diameter | Ø85.725 mm (3.37") |
| Quill travel | 127 mm (5") |
| Quill feeds | 0.04 mm (0.0015") 0.08 mm (0.0030") 0.15 mm (0.0060") |
| Head tilt | 45° Forward & Back 90° Right & Left |
| Spindle motor | 3HP |
| Table | |
| Table size | 1067 x 230 mm (42" x 9") Standard 1244 x 230 mm (49" x 9") Optional |
| Longitudinal travel (X) | 610 mm (23") 762 mm (30") |
| Cross travel (Y) | 300 mm (12") |
| Vertical trave (Z) | 390 mm (15") |
| T-solt (width x trough number x pitch) | 16 mm x 3 x 64 mm |
| RAM | |
| Ram travel | 305 mm (12") |
| Machine weight | 1000 Kg (2200 Lb) |
| Machine dimension (L x W x H) | 1600 x 1450 x 2100 mm |
| Packing dimension | 1450 x 1450 x 1900 mm |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
STANDARD ACCESSORIES
- One shot lubrication
- Draw bar
- Tools & tool box
- Operation manual
OPTIONAL ACCESSORIES
- Clamping kit set
- 6" angle vise
- Horizontal and vertical rotary table
- Power feed (X, Y, Z-axis)
- R8 collet set
- NST #30 arbor & collet
- NST #40 arbor & collet
- Work lamp
- Collant system
- Chip pan
- Right angle attachment
- Electric control box and panel
- Powered table elevation
- Ball screw (X, Y-axis)
- Digital readout system
