Products

Column Machines

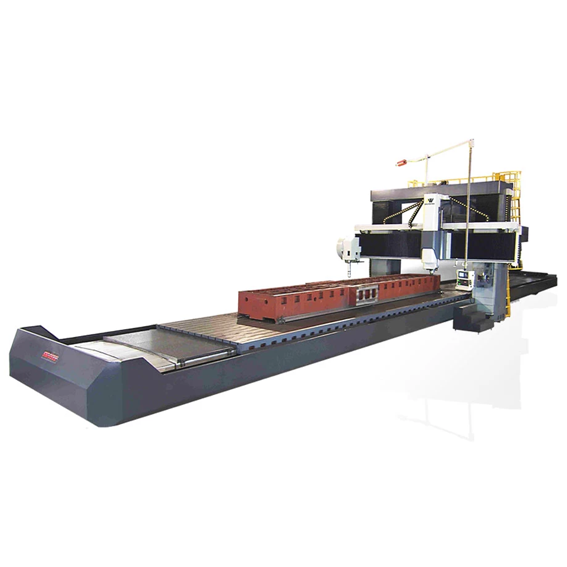

Double Column Machining Center-SK series
SK

‧ The box type design greatly resist thermal displacemtnt and bending deformation.
‧ The Extra Wide Distance Between Columns.
‧ The extra wide span between box way on each columns and moveable crossrail increase machining capacity.

Specification

FEATURES

Ladder Type Linear Ways On Beam



  • The ladder types Linear Way and extra wide boy way on beam provide greater rigidity and stability.
  • The extra wide distance het ween columns to allow large work pieces.



feature-1

Double V Slide Way For X-axis



  • The base is double V type slide way combine with scientific rib reinforcement casting.
  • The greater span between double V type slide way on X axis provides solid support for table heavy loads.



feature-2

Duo Hydraulic Counter



The duo hydraulic counter balance for W axis to ensure smooth movement.



feature-3

Automatic Tool Changer



feature-4

Double Column Machining Center - SK Series

video-01

SPECIFICATIONS

Model SK-2200 SK-2700 SK-3200 SK-3700
Working length 3000~6000 mm 3000~8000 mm 4000~10000 mm 4000~12000 mm
Working width 2100 mm 2600 mm 3100 mm 3600 mm
Crossrail height 1200 mm 1500 mm 1700 mm 2000 mm
Spindle feeding 1000 mm 1000 mm 1000 mm 1000 mm
Distance between columns 2200 mm 2700 mm 3200 mm 3700 mm
Spindle's speed 60~4500 RPM (高低檔)
Spindle's power Continuous 18.5 kW, 30 minutes: 22 kW
ATC 24 / 32 / 40 tools
CNC control FANUC、MISUBISHI、SIEMENS

*Special specifications can be made separately.
