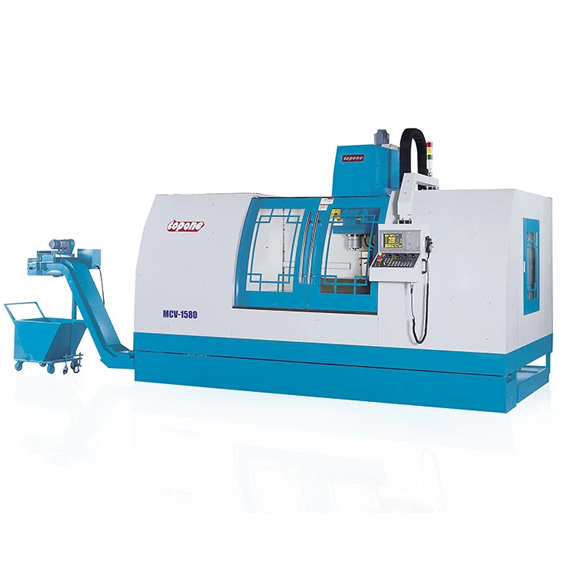

Vertical Machining Center - Box Ways Series ／ MCV-1580
MCV-1580
‧ X, Y, Z-axis travel 1500 x 800 x 700 mm
‧ BT50 spindle taper
‧ 6000 rpm belt drive spindle
‧ 4 box ways on base
‧ Arm type automatic tool changer
‧ Fully enclosed splash guard
‧ Fanuc / Mitsubishi control system
‧ Spindle oil cooler is standard equipment
Specification
FEATURES
Four Box Ways On Base
- The base is designed with 4 box ways. The oversized slideways in combination with a wide span between ways, allows the machine to perform heavy cutting with maximum stability.
- Three axes are equipped with anti-bump devices for safety and protection of the machine.
Belt Drive Spindle 6000 / 8000 rpm
- The belt drive spindle provides 6000 and 8000 rpm to select from.
- The spindle taper is a BT40 or BT50, depending on the machine model.
20 / 24 Tools Arm Type Magazine
- The magazine provides 20 or 24 tools to select from.
- Bi-directional random tool selection provides quick tool changes.
- The magazine accommodates a BT40 or BT50 tool shank.
SPECIFICATIONS
| Model | MCV-1580 |
|---|---|
| Table | |
| Working surface | 800 x 1700 mm |
| T-slots (size x number) | 22 x 5 mm |
| Max. table load | 1500 Kg |
| Distance from table work surface to floor | 1000 mm |
| Travel | |
| Longitudinal travel (X) | 1500 mm |
| Cross travel (Y) | 800 mm |
| Vertical travel (Z) | 700 mm |
| Distance from spindle nose to table | 150 - 850 mm (belt) |
| Distance from spindle center to column surface | 800 mm |
| Spindle | |
| Spindle taper | BT50 |
| Spindle speeds | 6000 RPM |
| Spindle speed range | 1 (belt) |
| Spindle cooling / lubrication method | C04PT Oil / Grease |
| Gearbox | N/A |
| Feed | |
| Cutting feed | 1 - 10000 mm/min |
| Papid feed (X / Y / Z) | 12 / 12 / 12 m/min |
| Min. cutting feed | 0.001 mm |
| Motor | |
| Spindle motor | 15 / 18.5 kW |
| 3-axes motor (X / Y / Z) | 7 / 7 / 7 kW |
| Coolant pump | 1.64 kW |
| Water tank capacity | 0.62 m³ |
| Automatic Tool Changer | |
| ATC type | ARM |
| Tool shank | BT50 |
| Tool storage capacity | 20 / 24 |
| Max. tool (diameter x length) | Ø110 x 300 |
| Installation Reguirement | |
| Power | 45 KVA |
| Pneumatic pressure | 5~7 kg / cm² |
| Peneumatic flowrate | 100 l / min |
| Floor space | 4310 x 3100 x 3200 mm |
| Net weight | 13000 Kg |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
STANDARD ACCESSORIES
- Fanuc / Mitsubishi control system
- Rigid tapping
- Automatic lubrication system
- RS-232 interface
- Work lamp
- Automatic power off
- Spindle air blast
- Leveling bolts & pads
- Electrical handwheel
- Tooll box with tools & operation manual
- Call light
- Table guard
- Oil circulating cooling system for spindle
- Transformer
- Heat exchanger for electrical cabinet
- Oil pressure box (for gear head)
OPTIONAL ACCESSORIES
- Arm ATC (20 or 24 Tools)
- Rotary table (4th axis)
- Chip conveyor (standard accessories for MCV-1580/1690/1890)
- Export packing
- Digital readout system
