Vertical Machining Center - Linear Ways Series
Vertical Machining Center - Linear Ways Series ／ MCV-L540

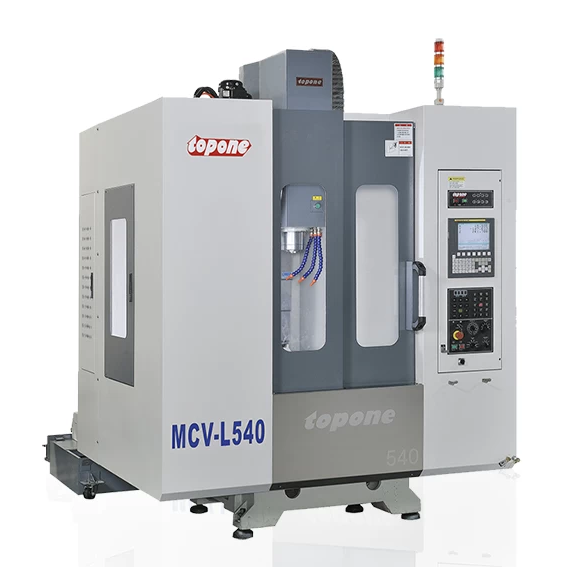

MCV-L540
‧ X, Y, Z-axis travel 560 x 400 x 400 mm
‧ BT40 spindle taper
‧ The direct drive spindle provides 10,000, 12,000 or 15,000 rpm
‧ Linear ways on X, Y, Z-axis
‧ 16 Tools arm type automatic tool changer
‧ Fully enclosed splash guard
‧ Fanuc / Mitsubishi control system
‧ Spindle cooler is standard equipment
Application :
AEROSPACE SHIPBUILDING ENERGY SECTOR PETROCHEMICAL INDUSTRY APPLIANCES MICROMACHINING DIE & MOLD AUTOMOTIVE MEDICAL
Specification
FEATURES
Direct Drive Spindle
- The direct drive spindle provides 10,000, 12,000 or 15,000 rpm
- The spindle taper is BT40
- The high speed spindle dramatically upgrades machining efficiency and surface finish of cut
SPECIFICATIONS
| Model | MCV-L540 |
|---|---|
| Table | |
| Working surface | 420 x 700 mm |
| T-slots (number x size x pitch) | 3 x 14 x 100 mm |
| Max. table load | 300 Kg |
| Travel | |
| Longitudinal travel (X) | 560 mm |
| Cross travel (Y) | 400 mm |
| Headstock travel (Z) | 400 mm |
| Distance between spindle end and table top | 325 - 725 (with raiser) mm / 130 - 530 (Standard type) mm |
| Spindle | |
| Type of tool shank | BT40 |
| Spindle speeds | DDS 10000 (std.) RPM / 12000, 15000 (opt.) RPM |
| Spindle speed range | 1 |
| Spindle cooling / lubrication method | Oil / Grease lubrication |
| Feed | |
| Cutting feed | 1 ~ 10000 mm/min |
| Rapid traverse (X / Y / Z) | 36 / 36 / 30 m/min |
| Minimum input increment | 0.001 mm |
| ATC | |
| Type | Arm |
| Tool holder | BT40 |
| Tool storage capacity | 16 /20 tools |
| Max. tool weight | 8 Kg |
| Max. tool dia. of adjacent pots are empty | 150 mm |
| Tool selection | Random |
| Tool change time | 3 sec |
| Motors | |
| Spindle motor | 7.5 kW |
| X axis | 1.6 kW |
| Y axis | 1.6 kW |
| Z axis | 3.0 kW |
| Installation Requirements | |
| Power | 15 KVA |
| Voltage | 220 V / 50 Hz |
| Pneumatlc pressure | 6-8 kg/cm² |
| Pneumatlc flowrate | 100 L/min |
| Floor space | 1850 x 2290 x 2650 mm |
| Net weight | 2800 Kg |
*Note: Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
STANDARD ACCESSORIES
- Fanuc / Mitsubishi control system
- Fully enclosed splash guard
- Rigid tapping
- Automatic lubrication system
- RS-232 interface
- Work lamp
- Automatic power off
- Spindle air blast
- Leveling bolts & pads
- Electrical handwheel
- Tool box with tools & operation manual
- Call light
- Table guard
- Oil circulating cooling system for spindle
- Transformer
- Heat exchanger for electrical cabinet
- Oil pressure box (for gear head)
OPTIONAL ACCESSORIES
- Arm ATC (16 / 20 / 24 Tools)
- Rotary table (4th axis)
- Chip conveyor
- Export packing
- Oil water separating tank
