Column Machines

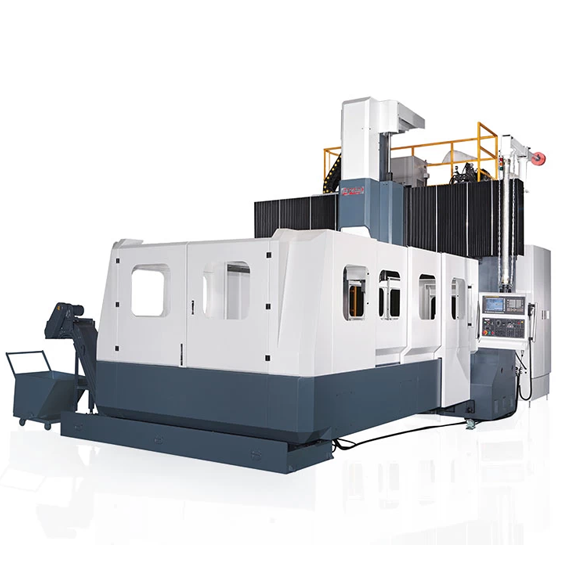

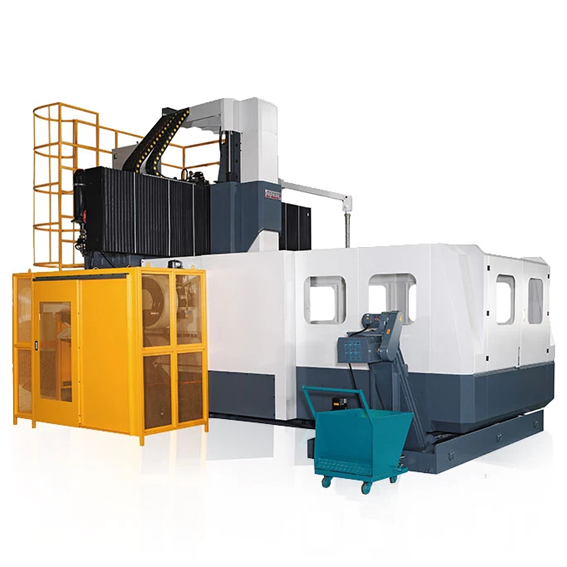

Double Column Machining Center-SP Series
SP

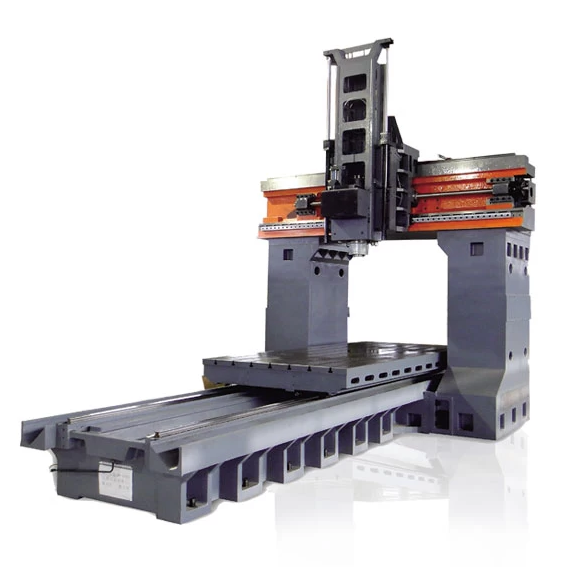

‧ Double Column Machining Centers exhibit outstanding rigidity, precision, quality and performance.
‧ Each one is designed for machining large, complex parts and precision molds, and creates the accuracy and efficiency you've come to expect. To meet customers' specific machining requirements, custom specifications are available.
Application :
AEROSPACE SHIPBUILDING ENERGY SECTOR PETROCHEMICAL INDUSTRY
Specification
FEATURES
Optimal Spindle Head Layout
- The spindle center line closes to z-axis slideways, greatly reducing the possibility of thermal displacement and bending deformation due to side cutting torque.
- Driven by a powerful motor, the spindle head is ideal for various complicated machining with ultra-high accuracy.
- Spindle gearbox is designed as rectangular in cross-section and its structure is symmetrical closed. It ensures the spindle gear box symmetrical heat conduction and preventing thermal distortion and minimizing defection.
Two-step Speed Gearbox
- The spindle running is transmitted through a gearbox, providing high/low speed changes.
- The low speed range gives great torque output, making the machine excellent for heavy cutting. The high speed range is ideal for fine cutting with outstanding surface finish effects.
- All gears in the gearbox are carburized and precision ground for quiet running.
Spindle Oil Cooler
- The spindle oil cooler can adjust to appropriate temperature to control the spindle accordingly and properly.
- The cooler provides excellent cooling feature for gears, stabilizes the precision of the spindle, and extends the lifetime of the spindle and gearbox.
Hydraulic & Nitrogen Gas Dual Counter-balancing System
Two chip augers are provided at the left and right side of the base, which deliver chips to the chip conveyor. The chip augers maintain machine cleanli-ness at all times.
- The nitrogen gas counter-balancing system is equipped with an accumulator, and no additional power unit is required.
- Features no noise and no vibration.
- It ensures extra smooth movement of the spindle head for increased machining accuracy.
CUTTING CAPACITY
| Cutting tool | Ø125 x 8t |
|---|---|
| Tangential speed | 295.35 m/min |
| Cutting width | 120 mm |
| Cutting depth | 4 mm |
| Cutting feed rate | 140 mm/min |
| Cutting amount per tooth | 0.27 mm |
| Material removal rate | 756 mm |
| Workpiece material | S45C |
| Spindle load | 80% |
*Note: The above cutting test values are for reference only. The values may vary with customers cutting conditions.
SPECIFICATIONS
| Model | SP-1703 | SP-1704 |
|---|---|---|
| X-axis travel | 3000 mm | 4000 mm |
| Y-axis travel | 1600 mm | 1600 mm |
| Z-axis travel | 1000 (1200 / 1400) mm | 1000 mm (1200 / 1400) mm |
| Table area | 1500 x 3000 mm | 1500 x 4000 mm |
| T-slot (no.-size x pitch) | 7-22 x 200 mm | 7-22 x 200 mm |
| No. of linear ways / slide blocks | 2 / 6 | 2 / 8 |
| Max. table load / linear Ways | 6t | 9t |
| Distance between columns | 1700 mm | 1700 mm |
| Distance from spindle nose to table | 200~1200 (200~1400 / 200~1600) mm | |
| Spindle nose taper / tool shank | ISO NO.50 / BT-50. / CAT-50. / DIN69871 | |
| Spindle speed | 60~4500 RPM (6000 option) | |
| Spindle motor (30 min. rating. cont.) | 22 / 18.5 (26 / 22) kW | |
| 3 axes servo motors (X/Y/Z) | 7/7/7 kW | 7/7/7 kW |
| X-axis rapid traverse | 12000 mm/min | 10000 mm/min |
| Y-axis rapid traverse | 12000 mm/min | 12000 mm/min |
| Z-axis rapid traverse | 10000 mm/min | 10000 mm/min |
| Cutting feedrate | 6000 mm/min | 6000 mm/min |
| Min. input unit | 0.001 mm/min | 0.001 mm/min |

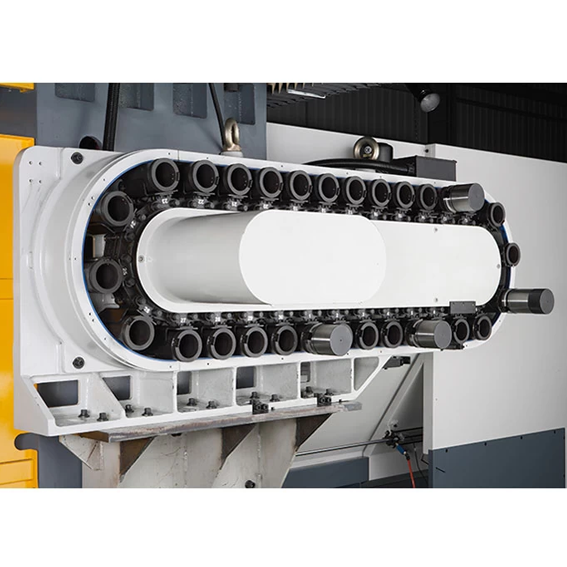

| Tool magazine capacity | 32 / 40 / 60 tools | 32 / 40 / 60 tools |
| Max. tool dia. / empty adj. tool | Ø125 / Ø250 mm | Ø125 / Ø250 mm |
| Max. tool length | 350 mm | 350 mm |
| Max. tool weight | 12 / 25 Kg | 12 / 25 Kg |
| Connected electricity | 60 KVA | 60 KVA |
| Weight (about) | 36 t | 42 t |
*Note:
-Due to cotinuous research and development, the machine designs and specifications are subject to change without prior notice.
-Custom specifications are available upon request.
STANDARD ACCESSORIES
- Fanuc control system
- Halogen work light
- Controller operation manual and electric circuit drawing
- Operation and maintenance manual
- Service tool
- Leveling bolts and blocks
- RS-232 interface
- Program finished warning lamp
- Automatic power-off device
- Air gun for removing chips
- Forced automatic lubrication system
- Air system
- Z-axis hydraulic counter-balancing system
- Nitrogen gas counter-balancing system
- Spindle oil cooler
- Coolant pump and tank
- Crawler chip conveyor with chip bucket
- Ship augers (at both sides)
- Semi-enclosed splash guard
- Machine accuracy inspection report
OPTIONAL ACCESSORIES
- Auxiliary tool stand
- NC rotary table
- Automatic tool setting device
- Computerized scanning imitative system
- Liner scale feedback
- 90° side milling head
- Universal milling head
- 45° angular milling head
- Oil water separating tank
- Coolant through spindle
