Bed Mill

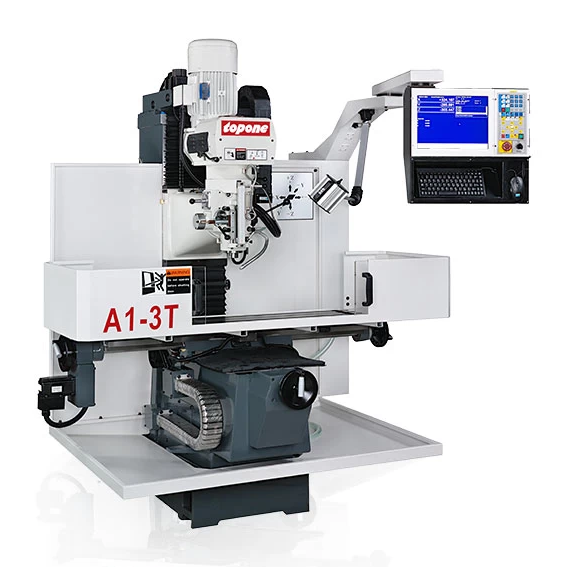

Bed Mill-A1-3T
A1-3T
‧ Travel X/Y/Z：28.74"/15.74"/19.68"
‧ Spindle Motor：2.2 kW (3HP)
‧ R8/NT30 spindle taper
‧ 4,200 rpm spindle speed with Hi-Logear
‧ Hardened & ground with Turcite-B coating guide way
‧ FC30 Meehanitecasting main frame with annealed & stress relieved for ‧ long term reliability
‧ X, Y and Z axis dovetail
Specification
SPECIFICATIONS
| Model | A1-3T |
|---|---|
| Spindle motor | 3HP |
| Table | 9" x 49" |
| X axis Travel | 28.34" |
| Y axis Travel | 15.74" |
| Z axis Travel | 19.68" |
| Spindle taper | R8/NT30 |
| Quill diameter | Ø3.37" |
| Quill travel | 5" |
| Spindle rpm (Lo) | 70~500 RPM |
| Spindle rpm (Hi) | 600~5000 RPM |
| Table load capacity | 880 Lb |
| T-solt (W x N) | 0.62" x 3 x 2.55" |
| Spindle nose to table top | 3.93" ~ 23.62" |
| Saddle size | 20" |
| Machine weight | 3770 Lb |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
