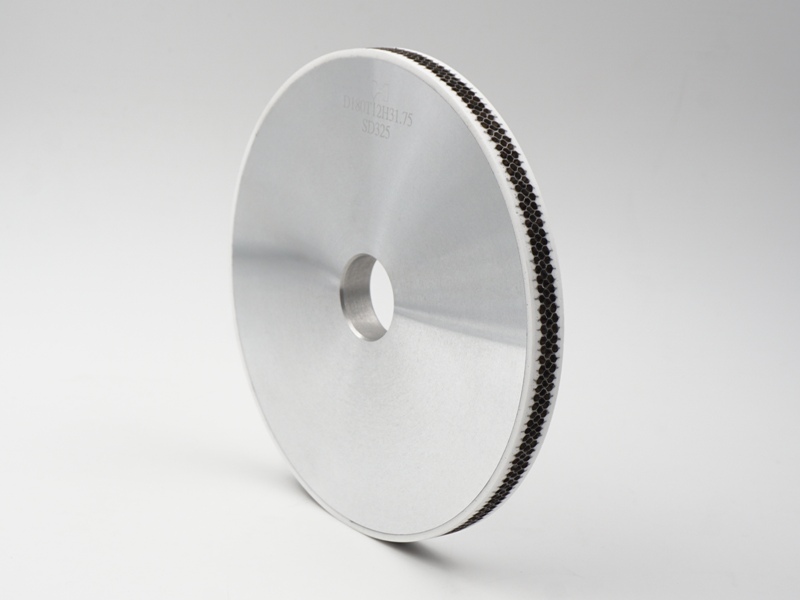

DIAMOND AND CBN Honey Comb Wheel
DIAMOND AND CBN Honey Comb Wheel
1A1/14A1
Application
To be applied in grinding to quartz, sapphire, ceramics and other non-ferrous harden metal.
To be applied in grinding to carbide, tool steel, tungsten steel and other general metal.
Feature
Anti stuffing.

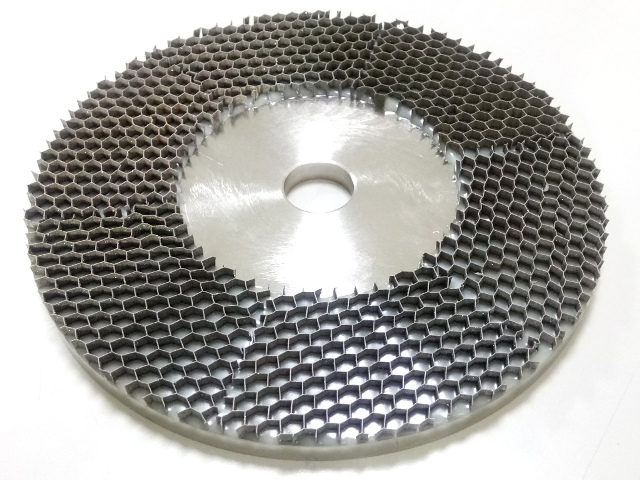

3D honey comb structure with good cooling solution.
Abrasive distribution in vertically with long lifetime.
Specification
Specification
- Diameter of honey comb are ψ2、3、6、9.
- Available abbrasive DIA #100 ~ #3000
CBN #100 ~ #600

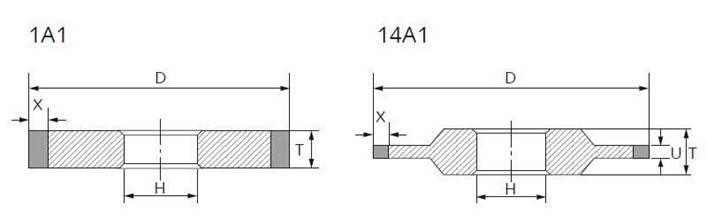

UNITS: mm SHAPE D T or U H X 1A1
14A1>100 >10 According to requirement 1.5 or 3 ✽Specifications can be designed and manufactured.

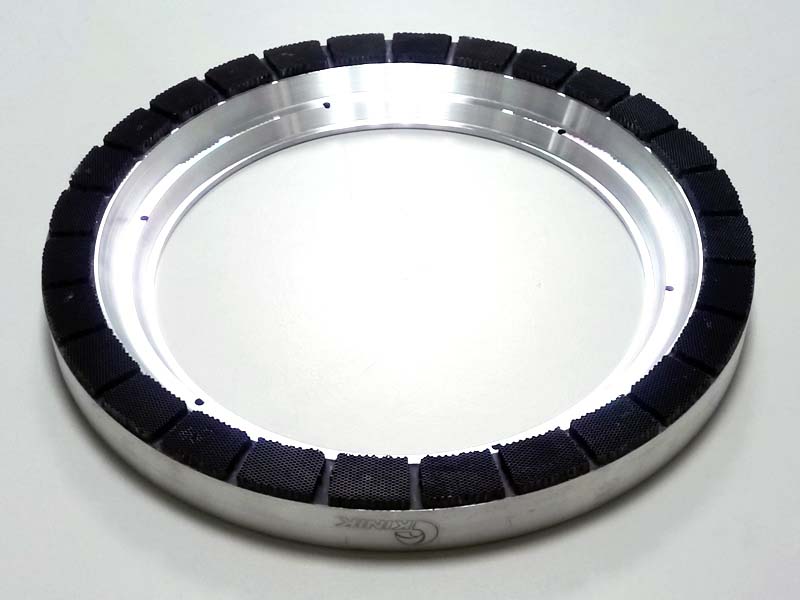

2A2 Product
6A2 Product

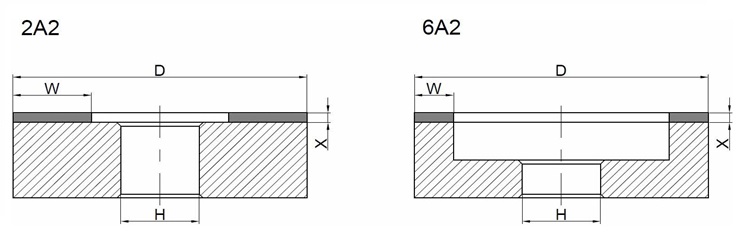

| UNITS: mm | ||||
|---|---|---|---|---|
| SHAPE | D | W | H | X |
| 2A2 6A2 |
>100 | >10 | According to requirement | 1.5 or 3 |
✽Specifications can be designed and manufactured.

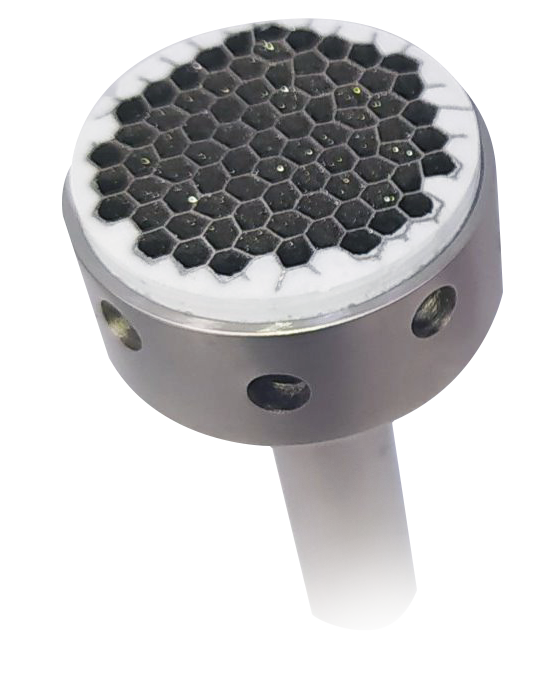

MOUNTED WHEELS Product

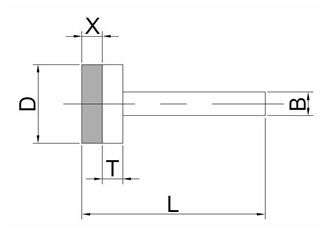

| UNITS: mm | ||||
|---|---|---|---|---|
| SHAPE | D | B、T | L | X |
| MOUNTED WHEELS | >10 | >6 | According to requirement | 1.5 or 3 |
✽Specifications can be designed and manufactured.
