Dicing Blade
Dicing Blade

Introduction

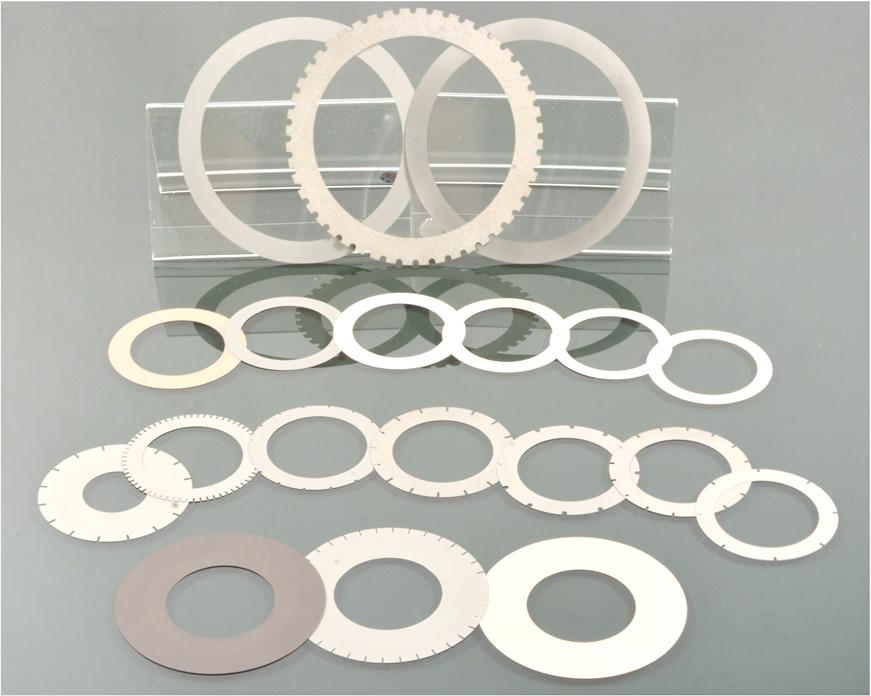

KINIK Company announces the introduction of Super Hubless Dicing Blade with resin, metal and nickel matrices. The dicing blades are manufactured by specialty consolidation, sintering and eletro-forming process that improve the uniformity of the thin blades. They are suitable for cutting ceramics,brittle materials ,optical glass,printed circuit boards,especially for semiconductor packaging.

Specification

Blade Specifications

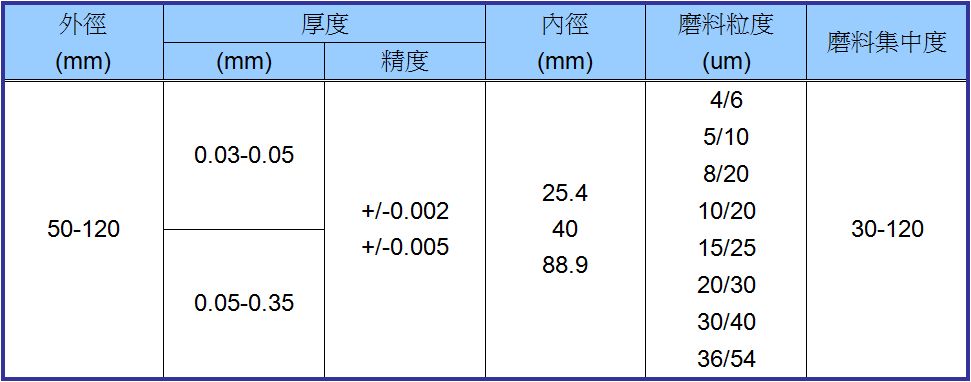

1.Nickel blades: ex:56 x 0.1 x 40mm 10/20um

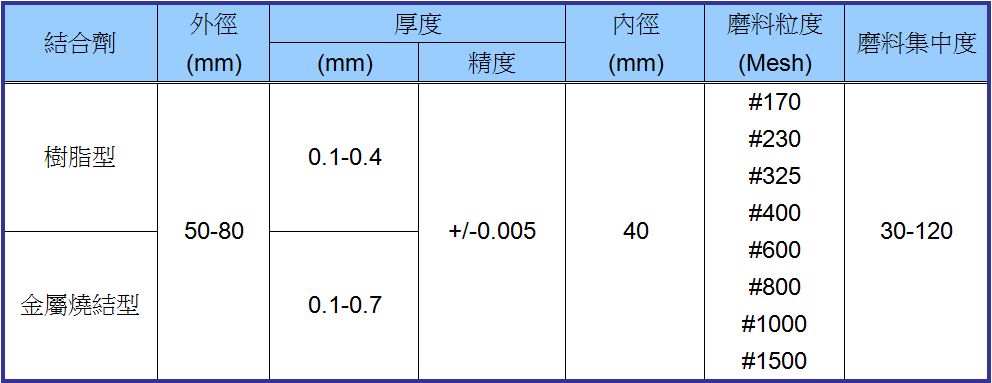

2.Resin Blade & Metal Blade: ex:58 x 0.2 x 40mm D400 C50

Accessories-Dressing Board

1.Feature

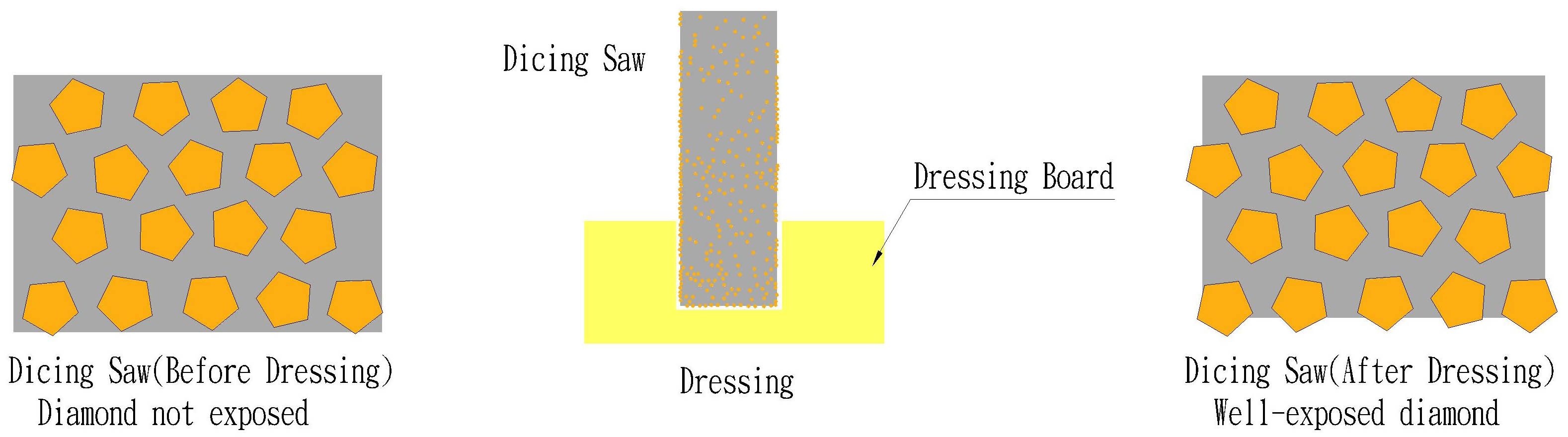

Dicing Saw can be dressed up via dressing board to increase sharpness, and reduce the chipping of the work piece.

3.Recommendation

Spec. Dicing Blades
Electroformed Bond Metal Bond Resin Bond
GC600 #400~#1200 #400~#1200 #200~#1000
GC1000 #1500~#2000 #1500~#2000 #1500~#2000
GC2000 #2000~#3000 N/A N/A
F30 #1800~#3000 N/A N/A
F40 #3500~#4500 N/A N/A
F50 Over #4500 N/A N/A
WA400 N/A #320~#400 N/A
WA800 #600~#1200 #400~#1200 N/A
WA1000 N/A #1500~#2000 N/A
WA2000 N/A #2000~#3000 N/A
