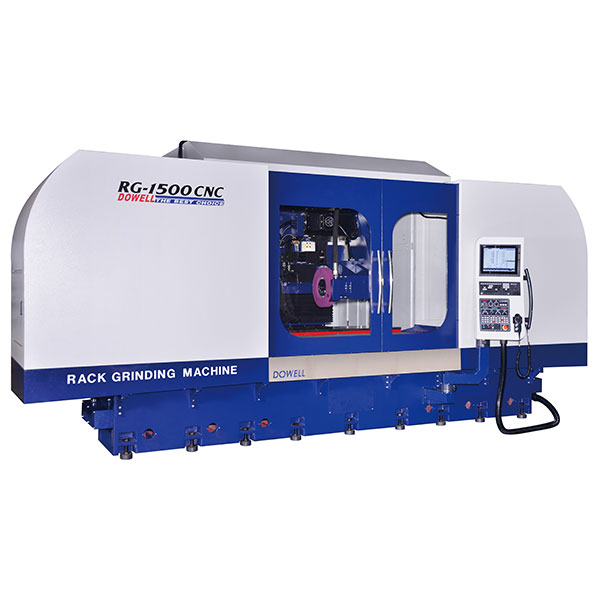

Meehanite Class FC30 casting with high riqid and wear resistance guide way insure machine permanent accuracy.
X,Y,Z axis (Longitudinal ,Vertical ,Cross) uses Ø63 ballscrew; provides high stability during grinding.
Enhanced rib & box structure design strengthen machine rigidity greatly. X, Y and Z Axis uses high precision roller Iinear guideway(55/65). Conventional covers protects the guideway from water, ensures the smooth movement and infeed accuracy, and also increase the life time of usage.
Customized diamond roller dresser can be fit on the side of the table(for straight tooth) or on top of wheel(for helical tooth)provides fast and efficient dressing .
Twin-pump, high pressure motor, and temperature controlling device enhanced heat dissipation, which insures best workpiece accuracy.
| DESCRIPTION | UNIT | RG-1500CNC | |
|---|---|---|---|
| General Capacity | Table size (lxw) | mm | 400x1500 |
| Max.grinding length (Chuck surface) | mm | 1500 | |
| Max.grinding width (Chuck surface) | mm | 400 | |
| Distance from table surface to spindle center | mm | 500 | |
| Std. Magnetic Chuck size | mm | 400x1500 | |
| Vertical Downfeed | Infeed Travel | mm | 300 |
| Ballscrew Per Revolution | mm | 10 | |
| Hand Feed Per Revolution | - | x1, x10, x100 0.001, 0.01, 0.1 /MPG |
|
| Rapid traverse | m/min | 2000 | |
| Longitudinal Movement | Infeed Travel | mm | 1500 |
| Ballscrew Per Revolution | mm | 10 | |
| Hand Feed Per Revolution | - | x1, x10, x100 0.001, 0.01, 0.1 /MPG |
|
| Rapid traverse | m/min | 3 | |
| Cross Movement | Infeed Travel | mm | 400 |
| Ballscrew Per Revolution | mm | 20 | |
| Hand Feed Per Revolution | - | x1, x10, x100 0.001, 0.01, 0.1 /MPG |
|
| Rapid traverse | m/min | 10 | |
| Grinding Wheel | Wheel Size (OD x W x Bore) | mm | Ø405x50x127 OPT Ø405x75x127 |
| Spindle Speed(50/60Hz) | rpm | 1450/1750 | |
| Motor | Spindle Motor | HP | 25 |
| Guideway Lubrication Motor | W | 25x3 | |
| Coolant Motor | HP | 2HPx2pcs | |
| Oil & Mist Chiller | HP | 2 | |
| Coolant Tank Chiller | HP | 2 | |
| Roller Dressing Motor | KW | 1 | |
| X Axis Motor | KW | 4.5 | |
| Y Axis Motor | KW | 3.5 | |
| Z Axis Motor | KW | 7 | |
| Weight | Net Weight / Gross Weight | kg | 18500/20000 |
※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
