AUTOMATIC SURFACE GRINDER

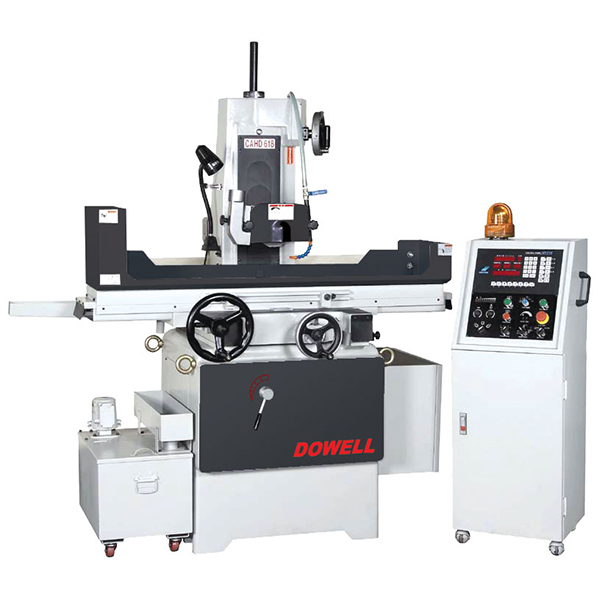

AUTOMATIC SURFACE GRINDER ／ DSG-618CAHD
DSG-618CAHD
Machine structure is manufactured from high quality Meehanite class FC cast iron.
Direct type spindle use high precision P4 bearing and go with V3 grade spindle motor provide excellent rigidity and stability.
Saddle guide way use double V designed, coated with Turcite-B and hand-scraped provide smooth movement.
Auto lubrication system use pump for forced cycle lubrication.
Plunge and surface grinding mode are standard.
Vertical feed driven by step & AC servo motor.
Feeding speed selection: JOG/slow/Rapid.
Specification
Fully automatic in 3 axis (x,y,z)
CAHD CONTROL PANEL
-
-
-
DESCRIPTION UNIT DSG-618CAHD General Capacity Table size (lxw) mm 150x460 Max.grinding length mm 475 Max.grinding width mm 160 Distance from table surface to spindle center mm 400 Standard mag. Chuck size mm 150x450 Longitudinal Movement Manual travel mm 485 Hydraulic traverse mm 485 Hydraulic feed (table speed) approx. m/min 1~25 Cross Movement Manual travel mm 180 Auto cross feed mm 180 Hand feed per revolution mm 5 Hand feed per graduation mm 0.02 Continuous cross feed (approx.)50/60HZ mm/min 510/650 Increment cross feed mm/min 0.5~10 Vertical Downfeed Rapid traverse (approx.) mm/min 230 Slow traverse (approx.) mm/min 29 Hand feed per revolution mm 1mm Hand feed per graduation mm 0.005mm Auto downfeed rate mm 0.001~0.099 Jog mm 0.001 Pre-set spark out times 0.9(passes) Grinding Wheel Wheel size (diax width xbore) mm Ø180x13x31.75 Spindle speed (50/60HZ) r.p.m 3000/3600 Motor Spindle drive motor HP 2 Hydraulic motor HP 1 Cross feed motor W 25 Elevating motor W 40 Weight Net weight / gross weight (approx.) kg 910/1040 Packing Size Length × width × height mm 1560x1300x2200 ※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
-
STANDARD ACCESSORIES
- Grinding wheel
- Wheel flange with extractor
- Balancing arbor
- Diamond dresser and base
- Working lamp
- Leveling plate
- Leveling screw & nut
- Tool box with tools
- Operation manual & Inspection report
- Touch-up paint
