DOUBLE COLUMN SURFACE GRINDER

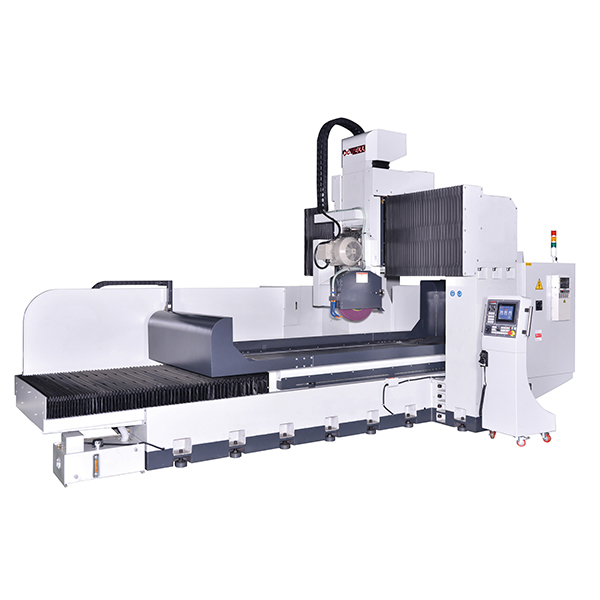

DOUBLE COLUMN SURFACE GRINDER / DSG-40100AND
DSG-40100AND

Specification

DESCRIPTION UNIT DSG-40100AND
Table size (lxw) mm 1000x2500
Max.grinding length mm 2500
Max.grinding width mm 1000
Distance from table to spindle center (Horizontal) mm 920, opt. 1120
Distance from table to spindle center (Vertical) Opt. mm 750, opt.950
Table speed m/min 2~25
Table guide way - V and V way
Distance between two column mm 1400
Continuous cross feed m/min 1200
Auto cross feed increment mm 5~30
Cross hand feed per revolution mm x1, x10, x100 (MPG) /
0.1, 1, 10
Cross hand feed per graduation mm x1, x10, x100 (MPG) /
0.001, 0.01, 0.1
Vertical hand feed per revolution mm x1, x10, x100 (MPG) /
0.1, 1, 10
Vertical hand feed per graduation mm x1, x10, x100 (MPG) /
0.001, 0.01, 0.1
Vertical rapid traverse mm/min 1200
Spindle motor (Horizontal) HP 20
Spindle motor (Vertical )Opt. HP Std. 7.5 Opt. 10
Vertical feed motor - 1KW Servo motor
Cross feed motor - 1KW Servo motor
Hydraulic motor HP 10
Grind wheel DxWxB (Horizontal) mm

Std. 500x50x203
Opt. 500x75x203

Grind wheel DxWXB (Vertical)Opt. mm 300x38x127
Table loading kg 3000
Machine weight kg 20000
Machine dimensiors (LxWxH) m 8.2x3.5x3.5

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
